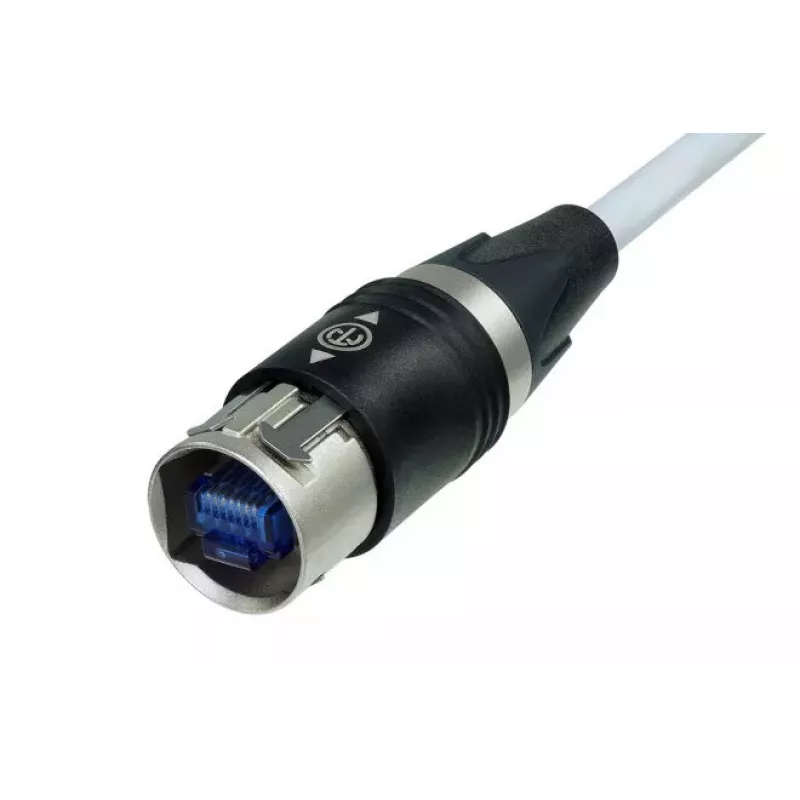

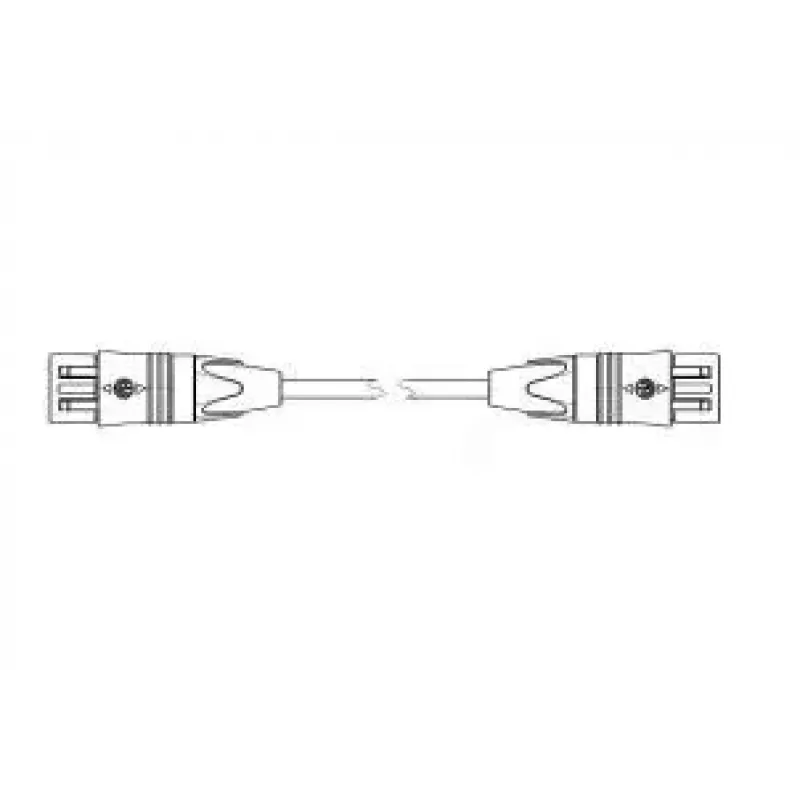

Cable de red Neutrik etherCON CAT6 30 m NKE6S-3

The Neutrik etherCON CAT6 30 m networking cable is a preassembled, ready-to-use patch cable designed for professional audio, video and network installations. It features shielded S/FTP construction and robust metal cable plug carriers with a Push-Pull locking system, providing secure RJ-45 connections and reliable high-speed data transmission up to 10 GBit/s. The cable is CAT6-compliant and meets TIA/EIA 568B, ISO/IEC 11801 and EN 50173 specifications.

Advantages

The cable combines S/FTP shielding for enhanced EMI protection and noise immunity with a rugged metal etherCON-style connector housing and chuck-type strain relief for durable mechanical performance. Both ends are fitted with cable plug carriers and the mated connector achieves IP65 protection against dust and water intrusion. Push-Pull mating ensures a secure, proven locking mechanism suitable for repeated connections in professional environments.

Suitable for

• Live sound and stage network links
• Broadcast and video signal distribution
• Studio and AV installations requiring reliable RJ-45 connections
• Industrial or harsh environment network runs where dust/water resistance is needed

Key specifications

• Length: 30 m
• Cable type: Shielded S/FTP
• Category: CAT6, compliant with TIA/EIA 568B, ISO/IEC 11801, EN 50173
• Data rate: up to 10 GBit/s
• Connector: RJ-45 with metal cable plug carrier on both ends
• Ingress protection (mated): IP65
• Strain relief: chuck-type

How to use

Connect the cable by inserting the RJ-45 plug into the corresponding etherCON-compatible jack until the Push-Pull locking mechanism engages. To disconnect, depress the release and pull the connector straight out. Route the cable avoiding tight bends and sharp edges; secure with suitable ties or clips as needed. The cable is ready made and requires no assembly.

Recommendations

For best performance, use this CAT6 S/FTP etherCON cable for short to medium runs where shielded connections and mechanical robustness are required. Ensure connectors are mated fully to maintain IP65 protection and avoid prolonged exposure to extreme temperatures or physical overload.
