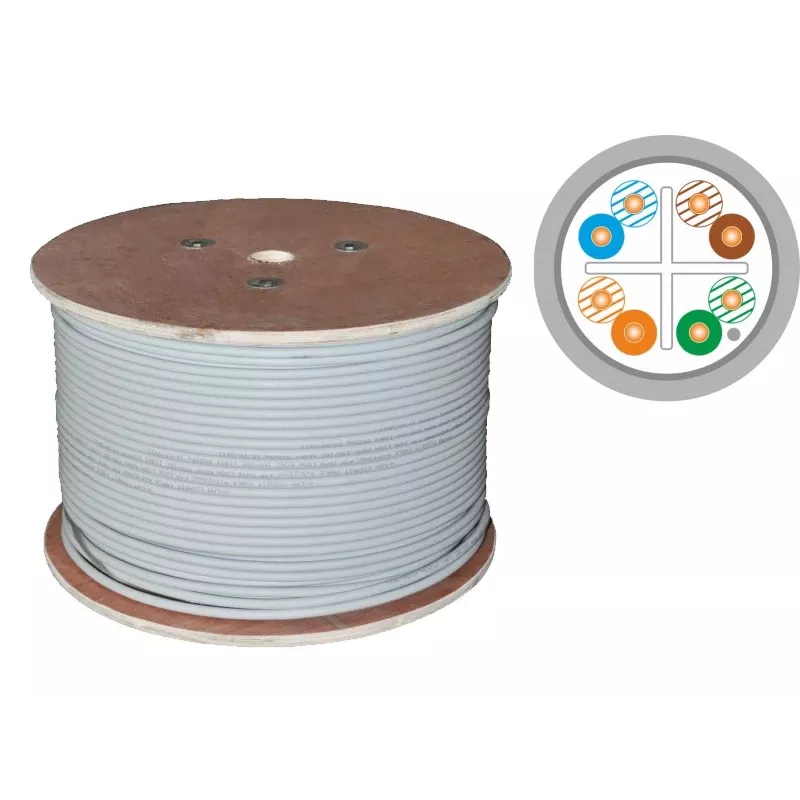

Cable de red Q-LANTEC KIF6PVC305Q Cat.6A F/UTP 305m gris, 23 AWG hilo, funda de PVC, 250 MHz

Shielded Ethernet cable Q-LANTEC KIF6PVC305Q Cat.6A F/UTP, 305 m, is designed for structured cabling and high-speed LAN links. The cable uses 23 AWG stranded copper conductors with a PVC outer jacket and overall diameter of 7.3 mm. Its foil-shielded F/UTP (FTP) construction and 250 MHz rating support reliable 10 Gigabit Ethernet performance over typical horizontal and backbone runs. The product is supplied on a cardboard pack and is rated for operation between -30 °C and 50 °C.

Advantages

Foil shielding around the twisted pairs reduces electromagnetic interference and improves signal integrity in environments with nearby power or data lines. The stranded 23 AWG conductors provide better flexibility for cable routing and installation in trays, conduits or patching areas. A PVC jacket offers mechanical protection and cost-effective durability for indoor cabling applications. The 305 m length on a cardboard pack allows continuous runs for typical office or server-room deployments.

Suitable for

Key specifications

How to use

Plan your cable route and measure required lengths allowing slack for terminations and service loops. Run the F/UTP cable through cable trays, conduits or ceiling spaces keeping separation from strong electrical sources where possible. Terminate the cable on compatible Cat.6A keystone jacks, patch panels or connectors following standard T568A/T568B pair color codes and using appropriate shielding termination techniques to preserve the foil shield continuity. Test each link with a certified cable tester to verify continuity, pair mapping and performance up to the specified 250 MHz.

Recommendations

For best performance, maintain proper bend radius and avoid excessive pulling tension during installation. Ensure foil shielding is correctly connected to grounding points at one end or per site grounding policy to reduce EMI. Use this cable indoors in dry environments and avoid exposure to UV or direct sunlight; for outdoor or plenum applications select cables with suitable jackets and ratings.
