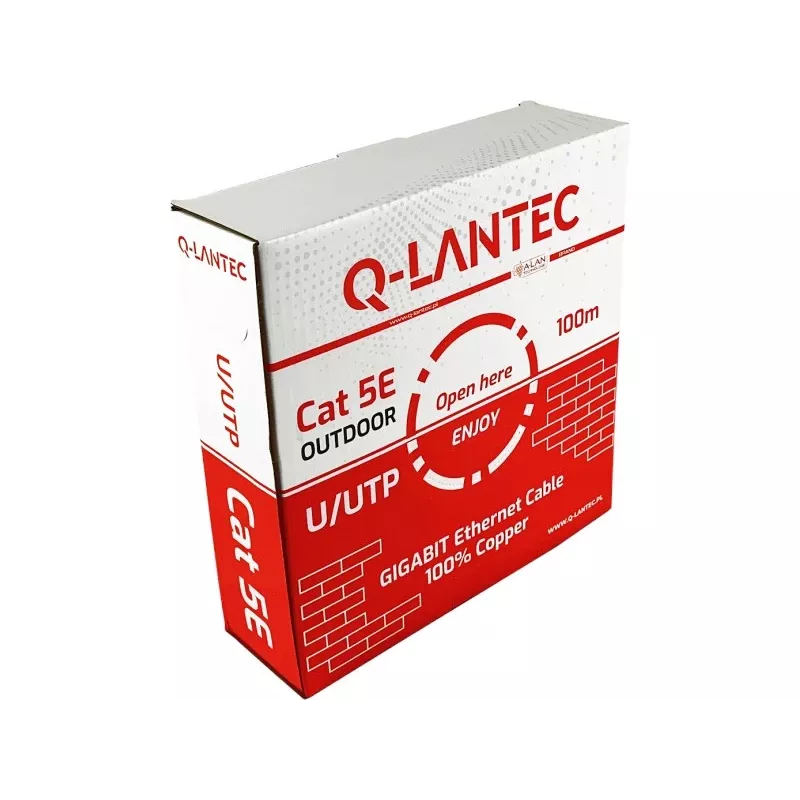

Q-LANTEC Cable de red exterior U/UTP Cat.5e, funda PE, cinta de bloqueo de agua seca, 4 pares, 24 AWG, 1 Gbit/s, negro, 100 m

The Q-LANTEC KIU5OUTS100Q is a high-performance outdoor U/UTP Cat.5e network cable designed for reliable data transmission in external environments. Featuring a durable PE (polyethylene) jacket and dry water-blocking technology, this cable ensures long-lasting performance against moisture and UV exposure. With 4-pair solid bare copper conductors and 24 AWG gauge, it supports Gigabit Ethernet speeds up to 1 Gbps and a bandwidth of 100 MHz, making it ideal for structured cabling systems in industrial, commercial, and residential outdoor installations.

Advantages

This cable offers excellent signal integrity and minimal crosstalk thanks to its U/UTP (unshielded twisted pair) design. The PE jacket provides superior weather resistance, while the dry water-blocking tape prevents moisture ingress without the mess of gel. Compliant with TIA/EIA-568-C.2 and ISO/IEC 11801 standards, it ensures interoperability and future-proof networking. The CPR fire class Fca rating guarantees safety for fixed installations.

Suitable for

• Outdoor Ethernet network connections (e.g., security cameras, access points)
• Horizontal cabling in building entrance facilities
• Industrial environments requiring robust cable protection
• Long-distance runs up to 100 meters

Key specifications

• Cable type: U/UTP (unshielded)
• Category: Cat.5e
• Jacket material: PE (polyethylene)
• Water blocking: Dry tape
• Number of pairs: 4
• Conductor: Solid bare copper, 24 AWG
• Max data transfer rate: 1 Gbps
• Max bandwidth: 100 MHz
• Impedance: 100 Ohm
• Color: Black
• Length: 100 m
• Outer diameter: approx. 5.0–6.0 mm
• Operating temperature: -20°C to +60°C
• Installation temperature: 0°C to +50°C
• CPR fire class: Fca
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801

Recommendations

For optimal performance, use with Cat.5e or higher rated connectors and patch panels. Avoid sharp bends and maintain a minimum bend radius of 4 times the outer diameter. Suitable for direct burial with additional conduit if required.
