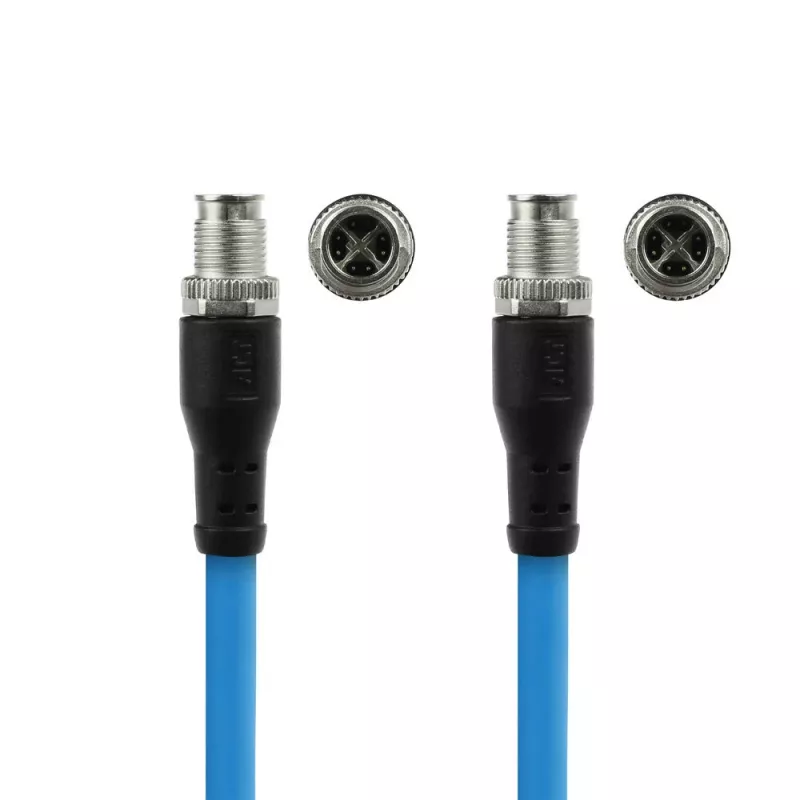

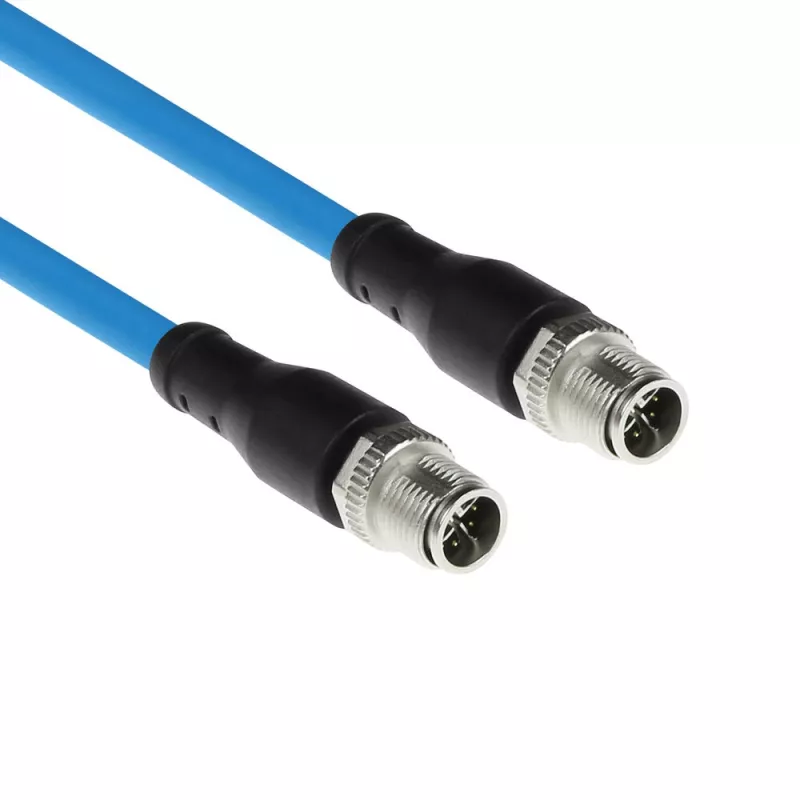

Cable de sensor ACT Industrial 5,00 m M12X 8 polos conector macho a conector macho M12X 8 polos, cable TPE SF/UTP Superflex, apantallado

The ACT Industrial sensor cables (actor cables) are provided with a TPE (Thermo Plastic Elastomer) sheath and are therefore highly resistant to mechanical loads such as movements in a chain. The connectors are overmoulded TPE and degree of protection is IP67.

Superflex SF/UTP cable, each individual core consists of 28 strands of copper that together form a diameter of AWG26. This makes the cable more flexible than, for example, a standard AWG24/7 patch cable.

Stranded conductors are build up of uninsulated thin strands of wire twisted together.
How greater the number of strands in a stranded conductor, the greater the flexibility of the wire.

ACT Industrial 5.00 meters Sensor cable M12X 8-pin male to M12X 8-pin male, Superflex SF/UTP TPE cable, shielded. International Protection (IP) code: IP67, Cable length: 5 m, Certification: UL, UL94-V0
