Cable Direct Attach QSFP+ BlueLAN BlueOptics compatible con Netscout 295-1117, 40GBASE-CR4, 1m, 30AWG, cobre pasivo

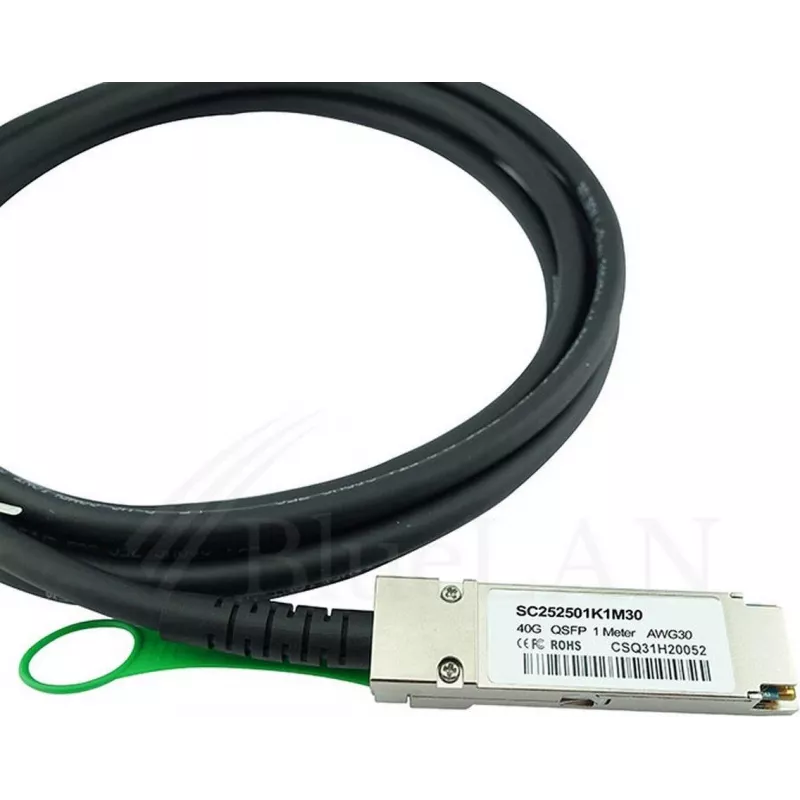

The BlueOptics Netscout 295-1117 compatible BlueLAN QSFP+ Direct Attach Cable (DAC) provides a high-performance, cost-effective interconnect solution for data centers and high-performance computing environments. This passive copper cable supports 40GBASE-CR4 Ethernet and InfiniBand QDR, delivering 40 Gbps data rates over a 1-meter length with 30 AWG wire gauge. Designed as a direct replacement for the Netscout 295-1117, it ensures seamless integration with existing network equipment.

Advantages

This DAC cable offers low power consumption (<0.5W), hot-swappable QSFP+ connectors, and a durable PVC jacket. It is RoHS compliant and operates reliably in temperatures from 0°C to 70°C. The 100 Ohm impedance ensures signal integrity, making it ideal for high-density switch-to-switch or switch-to-server connections.

Suitable for

• Data center interconnect
• High-performance computing (HPC) clusters
• 40 Gigabit Ethernet networks
• InfiniBand QDR applications

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Cable Type: Passive Copper
• Supported Protocols: Ethernet, InfiniBand QDR
• Connector A: QSFP+
• Connector B: QSFP+
• Hot-Swappable: Yes
• Power Consumption: <0.5 W
• Operating Temperature: 0°C to 70°C
• Impedance: 100 Ohm
• Jacket Material: PVC
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that your network equipment supports QSFP+ modules and 40GBASE-CR4 standards. This cable is a direct replacement for the Netscout 295-1117 and is fully compatible with BlueLAN systems.
