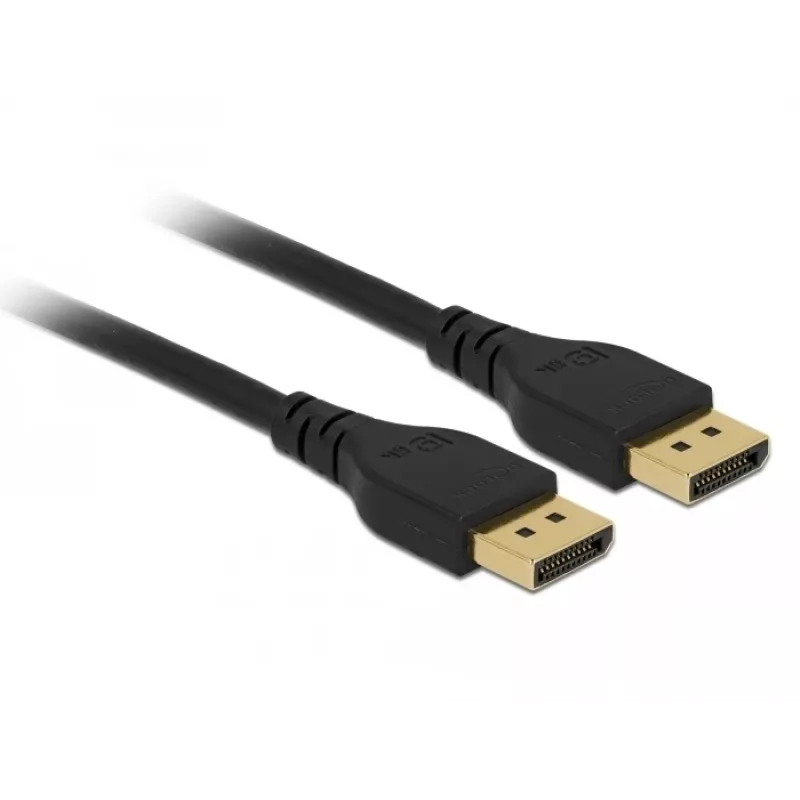

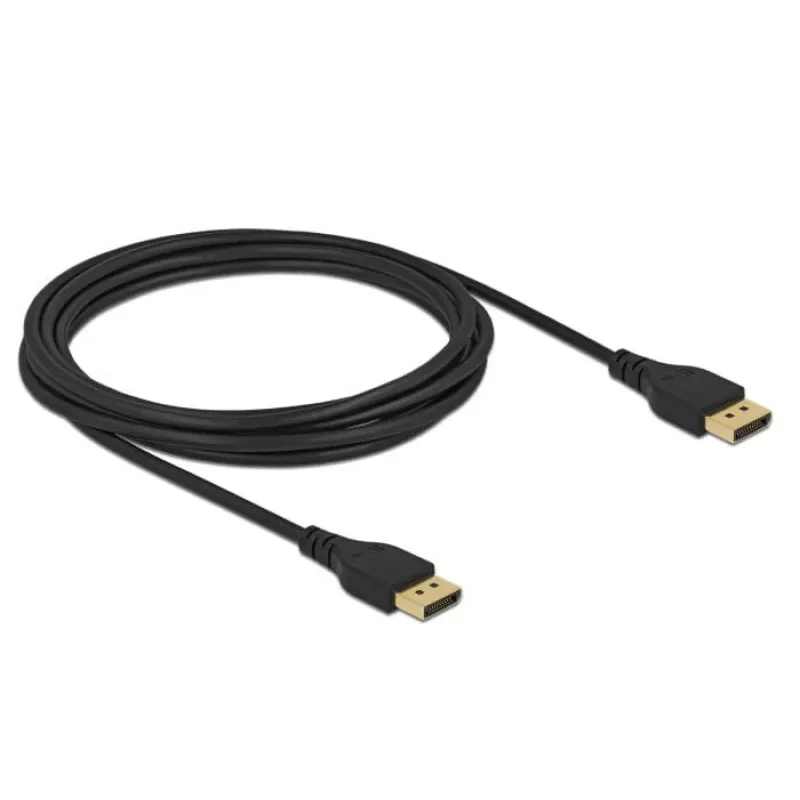

Cable DisplayPort DeLOCK 85910 8K 60 Hz 2 m

This certified DisplayPort cable by Delock is designed to connect devices with a DisplayPort interface — such as monitors, projectors or televisions — to a PC or laptop. It supports a maximum bandwidth of 32.4 Gbps and can carry video signals up to 8K Ultra HD (7680 x 4320 @ 60 Hz). The triple-shielded construction and high-quality conductors also allow improved audio transmission with sampling rates up to 1536 kHz. The cable is 2 m long, has a diameter of 7.5 mm and comes in black with DisplayPort connectors on both ends.

Advantages

The DeLOCK DisplayPort cable 85910 is certified for 8K performance at 60 Hz and provides a stable 32.4 Gbps bandwidth for high-resolution video. Its triple shielding reduces interference for clearer audio and video signals. The slim plug design — achieved by omitting the latch — makes the connectors narrower for easier access when multiple ports are used and simplifies unplugging from recessed or hard-to-reach DisplayPort sockets.

Suitable for

• Connecting 8K or 4K monitors to desktops and laptops
• Linking projectors or TVs with DisplayPort inputs
• Use in multi-monitor setups where ports are close together
• Applications requiring high-resolution video and high-sampling-rate audio

Key specifications

• Brand: DELOCK
• Model / MPN: 85910
• EAN: 4043619859108
• Connector 1: DisplayPort
• Connector 2: DisplayPort
• Maximum resolution: 8K Ultra HD (7680 x 4320 @ 60 Hz)
• Maximum bandwidth: 32.4 Gbps
• Audio sampling rate: up to 1536 kHz
• Cable length: 2 m
• Diameter: 7.5 mm
• Colour: Black

How to use

Insert each DisplayPort connector into the corresponding DisplayPort socket on your source device (PC or laptop) and your display device (monitor, projector or TV). Ensure the connectors are aligned with the port orientation and push gently until the connection is secure. Because the plugs lack a latch, pull straight out to disconnect. Use cable routing and strain relief to avoid sharp bends and reduce mechanical stress on the connectors.

Recommendations

For best results, use the cable for direct digital connections between compatible devices that support DisplayPort 1.4 or equivalent specifications. Avoid excessive bending near the connectors and keep the cable away from strong electromagnetic interference sources to maintain signal integrity.
