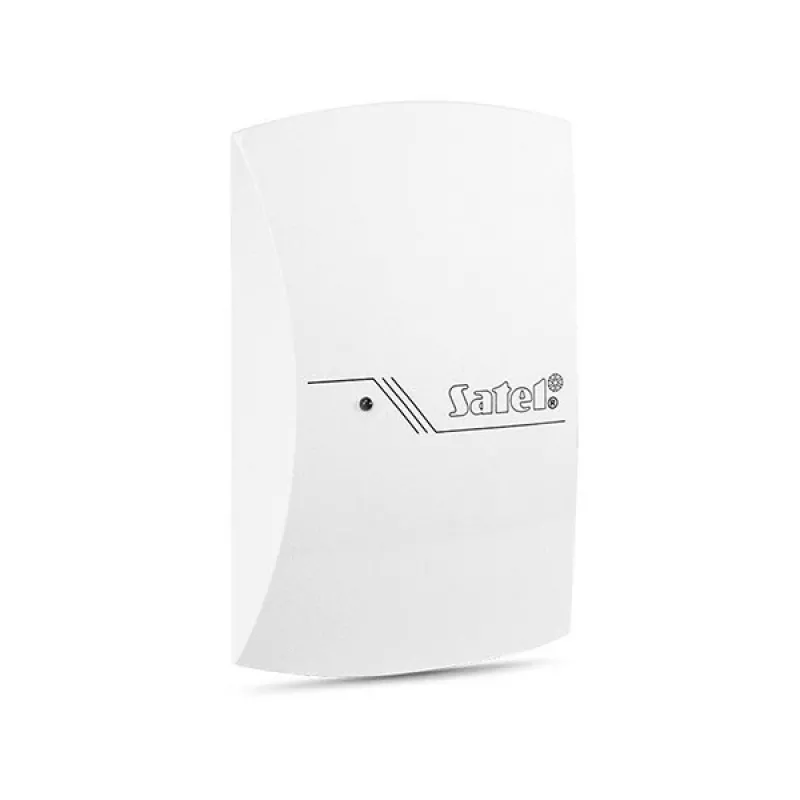

Lector de tarjetas magnéticas Satel CZ-EMM Blanco

The Satel CZ-EMM White magnetic card reader is a compact 125 kHz proximity reader designed for integration with access control systems. It reads proximity cards and tags and works with INTEGRA control panels as well as ACCO and ACCO NET door controllers. The reader is powered by 12 V and consumes 50 mA, providing stable operation while maintaining low energy use. With a slim profile (80 mm wide, 16 mm deep, 120 mm high) and a neutral white finish, the device is suitable for indoor mounting where discreet, reliable card-based access control is required.

Advantages

The CZ-EMM offers reliable 125 kHz transponder reading for proximity cards and tags, ensuring consistent identification and quick response times. Its low power consumption and standard 12 V operation simplify integration into existing control panels and door controllers. The compact casing and white appearance allow flexible mounting in narrow or visible locations without disrupting interior design. Built for continuous use, the reader provides long-term durability and stable performance in typical access control environments.

Suitable for

• Office and administrative building entry control
• Residential block or gated community access points
• Integration with INTEGRA alarm and security control systems
• Door controllers using ACCO and ACCO NET
• Small server rooms, storage areas, and internal restricted zones

Key specifications

• Operating frequency: 125 kHz transponder/proximity
• Power supply: 12 V DC
• Power consumption: 50 mA
• Dimensions: 80 mm (width) x 16 mm (depth) x 120 mm (height)
• Color: white
• Compatible card types: proximity cards and tags (125 kHz)

How to use

Mount the reader in a visible, accessible position near the controlled door following manufacturer mounting recommendations and local installation standards. Connect the device to a 12 V DC power source and wire it to the INTEGRA control panel or ACCO/ACCO NET door controller using the appropriate interface connections. After wiring, enroll proximity cards or tags in the control panel or door controller according to the system configuration procedure. Verify read range and responsiveness by presenting authorized cards and adjust positioning if necessary to ensure consistent detection.

Recommendations

Install the reader in a sheltered indoor location to avoid direct exposure to moisture and extreme temperatures. Use shielded cables for signal wiring in electrically noisy environments and follow grounding guidelines of the access control system. Regularly test enrolled credentials and keep firmware and control panel configuration up to date to maintain reliable operation.
