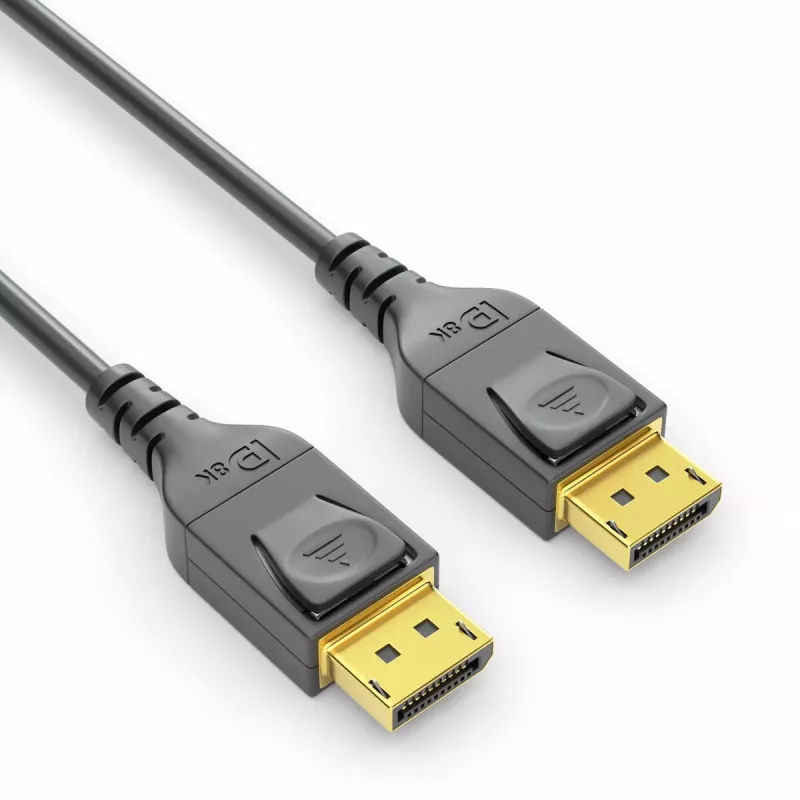

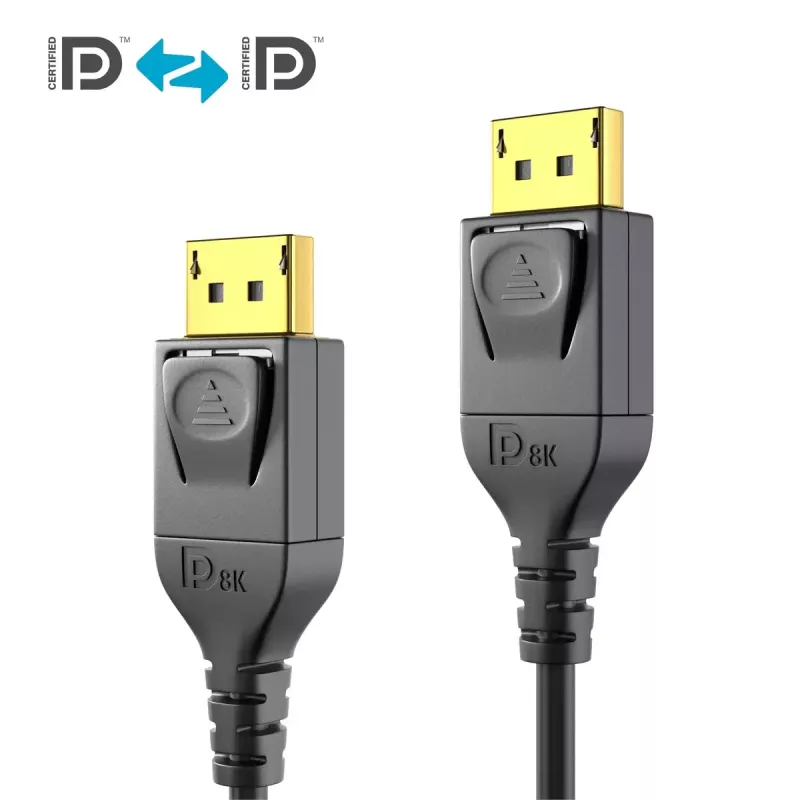

Cable DisplayPort PureLink PureInstall 2 m

PI5010 - DisplayPort 1.4 cable, 2 m. The PureLink PureInstall DisplayPort cable (PI5010-020) provides a reliable wired connection between two DisplayPort devices and supports resolutions up to 8K@60Hz or 4K@120Hz while complying with the DisplayPort 1.4 specification. With a maximum bandwidth of 25.92 Gbps using HBR3 and support for Display Stream Compression (DSC) 1.2, it transmits visually lossless 8K signals including HDR and up to 10-bit colour depth. Both ends have precision gold-plated PureInstall DisplayPort connectors for durable, low-interference connections. The cable is 2 meters long, black, RoHS-compliant and carries CE and FCC certifications.

Advantages

The cable supports high bandwidth HBR3 and DSC 1.2 for visually lossless transmission of up to 8K@60Hz and 4K@120Hz, including HDR and up to 10-bit colour. Triple shielding (aluminum foil, dense braid and inner shield) and an ultra-pure OFC copper conductor reduce interference and crosstalk. Precision 24-carat gold-plated pins and custom-fit connectors ensure long-term mechanical durability and stable signal transfer. Backwards compatible with earlier DisplayPort versions and factory-tested with multiple quality checks for professional installations.

Suitable for

• Connecting high-resolution monitors and UHD/8K displays
• Professional AV installations and digital signage
• PC to monitor or graphics card to display at high refresh rates
• Projectors and workstations requiring HDR and high colour depth

Key specifications

• Manufacturer model: PI5010-020
• Standard: DisplayPort 1.4
• Supported resolutions: up to 8K (7680×4320) @60Hz, 4K (3840×2160) @120Hz
• Bandwidth: up to 25.92 Gbps (HBR3)
• Compression: DSC 1.2 (visually lossless)
• Cable length: 2 m
• Connectors: DisplayPort to DisplayPort, gold-plated
• Conductor: OFC copper; triple shielding
• Colour: Black
• Certifications: CE, FCC; RoHS compliant

How to use

Connect one DisplayPort connector to the source device (for example a PC graphics card or media player) and the other to the DisplayPort input of the monitor, projector or display. Ensure both devices support the required resolution and refresh rate; adjust display settings in the operating system or graphics driver to enable HDR, 10-bit colour or higher refresh rates if necessary. Route the 2 m cable to avoid sharp bends and secure connectors to prevent accidental disconnection.

Recommendations

For best performance at 8K@60Hz or 4K@120Hz enable DSC in the source device when available, use compatible graphics hardware and set correct display timing in the GPU driver. Avoid running the cable near strong electromagnetic sources despite triple shielding, and inspect connectors periodically for secure fit and clean contacts.
