Cable DMX XLR de 3 pines EUROLITE 20 m modelo 3022785S para control de iluminación

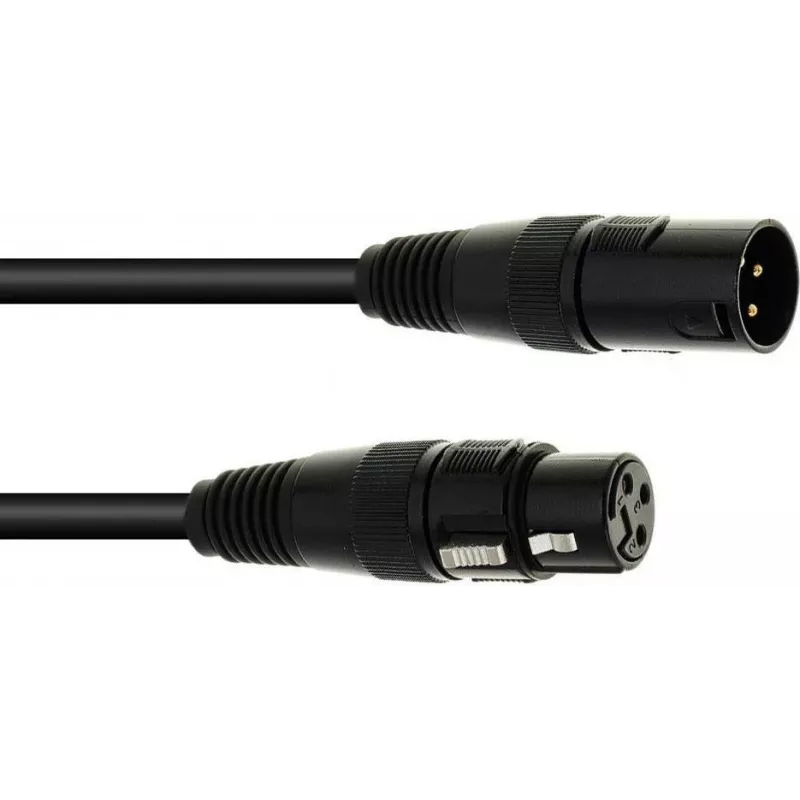

The EUROLITE DMX cable 3-pin XLR 20 m (model 3022785S) is a shielded transmission cable designed for carrying DMX512 control signals between lighting desks, moving heads, dimmers and other stage fixtures. With standard 3-pin XLR connectors and a 20-metre length, the cable supports medium-distance connections on stages, in clubs and at events while maintaining signal integrity required for synchronized lighting control.

Advantages

This DMX cable provides a durable connection with standard 3-pin XLR connectors compatible with most lighting equipment. The 20 m length offers flexibility for typical stage and event setups without the need for additional joins. The cable’s shielding and conductor layout are intended to reduce interference and preserve DMX512 signal quality over the run, simplifying installation and cable routing.

Suitable for

Key specifications

How to use

Connect the cable’s XLR male end to the DMX output of the lighting controller and the female end to the input of the first fixture or dimmer. For daisy-chained fixtures, continue linking outputs to inputs along the DMX line. Observe proper DMX termination practices by using a terminator at the last fixture in the chain to prevent signal reflections. Route the cable to avoid running parallel with high-power mains cables to reduce potential interference.

Recommendations

Inspect connectors and cable insulation before each use. Use cable ties or gaffer tape to secure runs and avoid sharp bends near connectors. For permanent installations or runs longer than 20 m, consider using DMX repeaters or opt for cables and equipment designed for longer-distance transmission.
