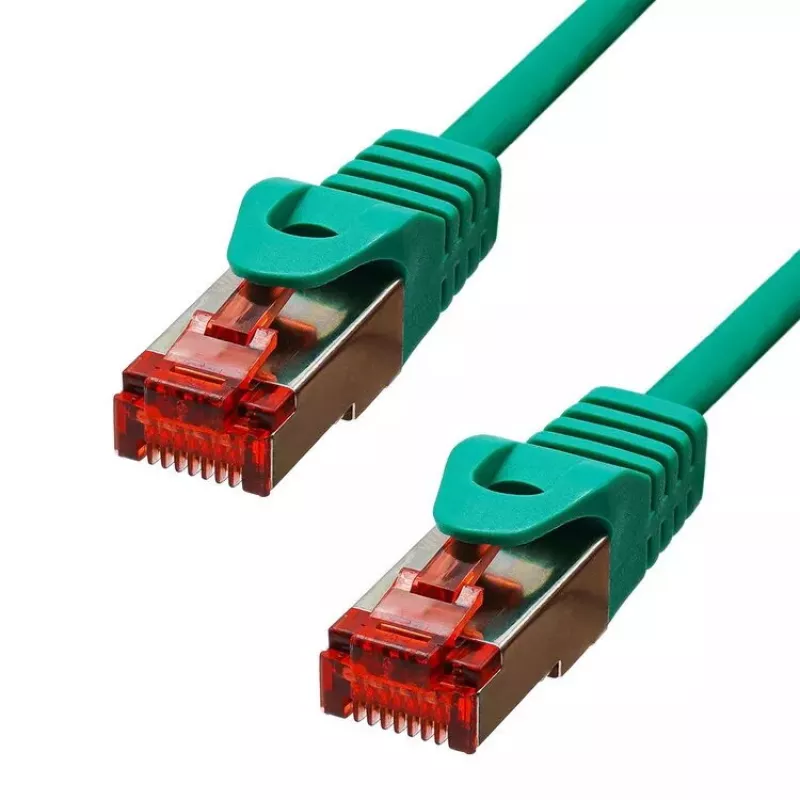

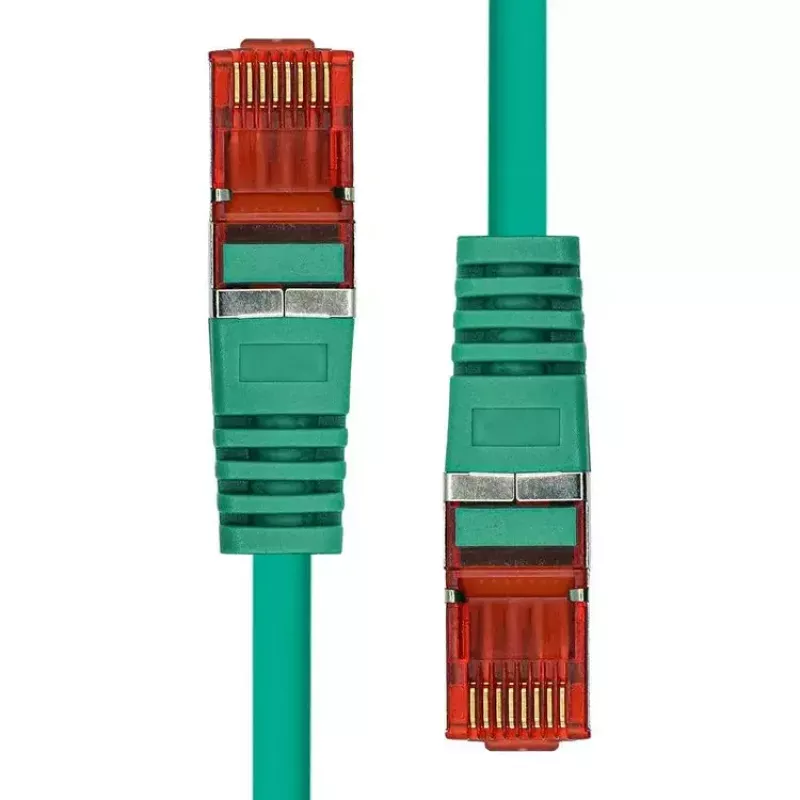

Cable Ethernet ProXtend CAT6 RJ-45 F/UTP 20 m verde

The ProXtend Ethernet Cable CAT6 F/UTP CU LSZH 20 m in green is a shielded network cable designed for gigabit Ethernet connections. Constructed with 99.9% pure copper strands (AWG 26) and an F/UTP foil screen, the cable reduces electromagnetic interference while supporting data rates up to 1000 Mbit/s and Power over Ethernet Plus (PoE+). The outer LSZH jacket limits smoke and toxic emissions in case of fire, and the RJ-45 connectors feature 50µ"U gold plating and a snagless design for secure, durable connections.

Advantages

The cable’s pure copper conductors and AWG 26 gauge provide stable signal transmission and low attenuation. Foil shielding (F/UTP) protects against EMI for more reliable performance in environments with electrical noise. The LSZH outer jacket improves safety by producing low smoke and no halogenated acid gases in a fire. Reinforced strain relief and a snagless latch on the RJ-45 plugs increase durability and simplify installation. 50µ"U gold-plated connectors offer improved corrosion resistance and consistent contact quality.

Suitable for

• Gigabit Ethernet networks (10/100/1000Base-T)
• Professional and home network cabling
• PoE+ powered devices such as IP cameras and access points
• Environments with potential electromagnetic interference

Key specifications

• Length: 20 m
• Cable type: CAT6 F/UTP CU (foil screened, unshielded pairs)
• Conductor material and size: 99.9% pure copper, AWG 26
• Connector: RJ-45 – RJ-45 with 50µ"U gold plating, snagless
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Supported standard: 10/100/1000Base-T(X)
• Supports: PoE+
• Color: Green
• Weight: 0.68 kg

How to use

Connect one RJ-45 plug to your network device (switch, router or network card) and the other to the corresponding port on the receiving device. Ensure connectors are fully inserted until the latch clicks to secure the connection. Route the cable without sharp bends and avoid running it in parallel with high-voltage power lines to minimize interference. For wall-mounted or ceiling installations, use appropriate cable clips or ties to prevent strain on the connectors.

Recommendations

For best performance, use this CAT6 F/UTP cable for gigabit links up to 20 m and maintain bend radius recommendations (typically four times the cable diameter). Avoid prolonged exposure to extreme temperatures and mechanical stress. When deploying PoE+ devices, verify both the device and switch support the required power class.
