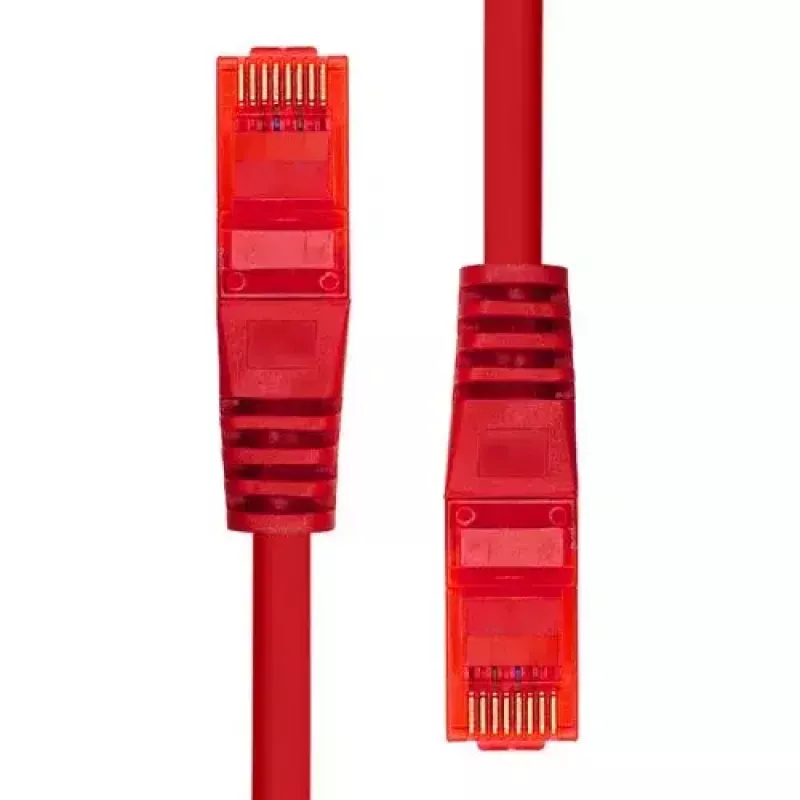

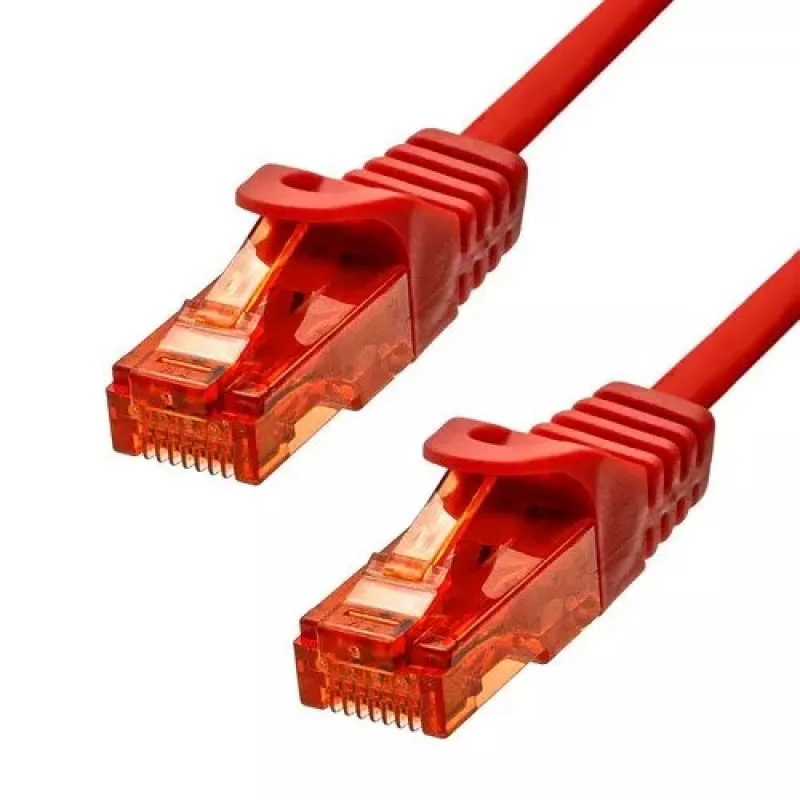

Cable Ethernet ProXtend CAT6 RJ-45 U/UTP 7 m rojo

The ProXtend CAT6 U/UTP CU LSZH Ethernet Cable is a 7 m red network cable with RJ-45 connectors on both ends. Constructed with 99.9% pure copper strands and 24 AWG conductors, it supports Gigabit Ethernet (10/100/1000Base-T) and PoE+ while ensuring low smoke and no halogen emissions due to its LSZH outer jacket.

Advantages

The cable's 24 AWG pure copper conductors and U/UTP design provide reliable signal transmission and stable Gigabit speeds up to 1000 Mbit/s. The LSZH jacket limits smoke and toxic fumes in case of fire. A snagless latch protection and reinforced strain relief increase durability and simplify installation. RJ-45 contacts are plated with 50 µ"U" gold for improved corrosion resistance and longer-lasting connectivity.

Suitable for

• Wired Gigabit connections for desktop PCs, switches and routers
• Power over Ethernet (PoE/PoE+) powered devices such as IP cameras and access points
• Office and data center patching where low-smoke, zero-halogen cabling is required

Key specifications

• Length: 7 m
• Connectors: RJ-45 to RJ-45
• Cabling technology: 10/100/1000Base-T(X)
• Conductor: 99.9% pure copper, 24 AWG
• Shielding: U/UTP (unshielded twisted pair)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Contact plating: 50 µ"U" gold
• Colour: Red
• Weight: 0.28 kg

How to use

Plug each RJ-45 connector into the corresponding Ethernet ports on your devices (PC, switch, router, camera or access point). Ensure connectors click into place using the snagless latch protection. Route the cable to avoid sharp bends and excessive tension; the reinforced strain relief reduces connector stress. The cable supports standard Ethernet auto-negotiation and PoE/PoE+ where applicable.

Recommendations

For best long-term performance, avoid kinking the cable and maintain bend radius recommended for Cat6 cabling. Use the red colour to identify network segments or PoE feeds in patch panels and cable runs.
