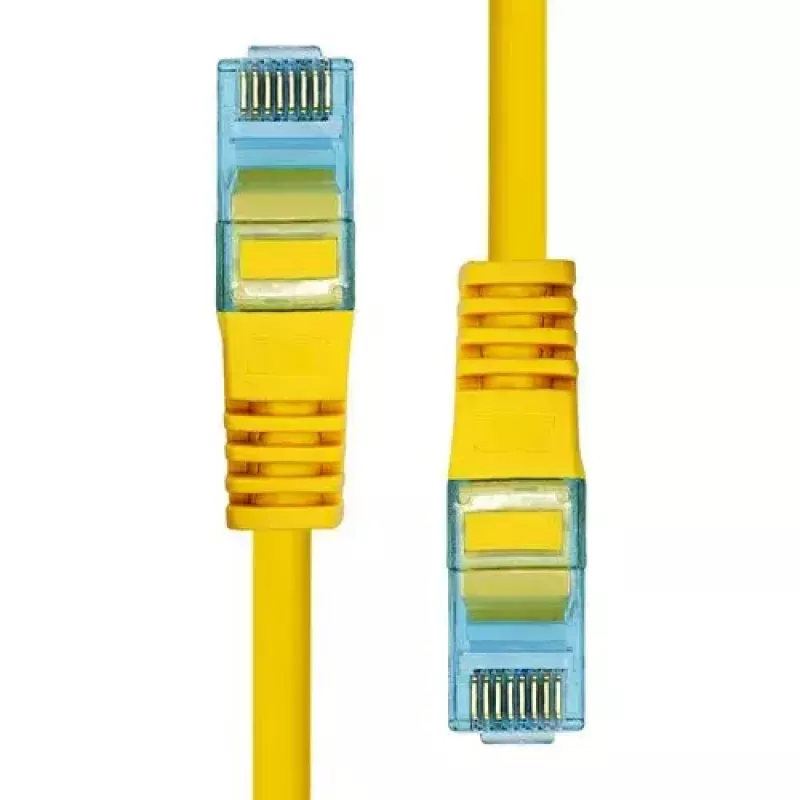

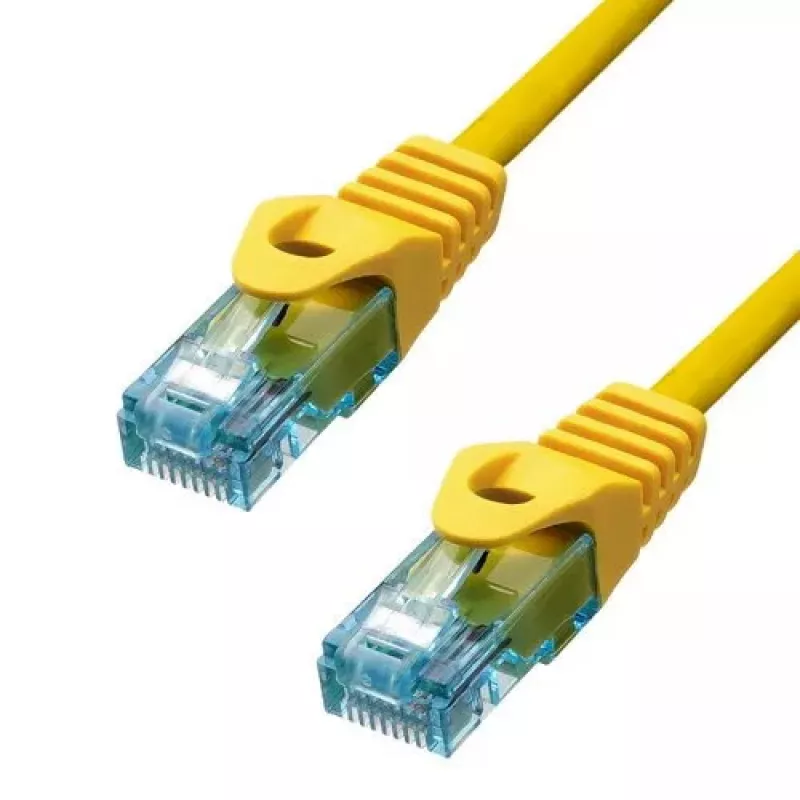

Cable Ethernet ProXtend CAT6A RJ-45 U/UTP 15 m amarillo

The ProXtend CAT6A U/UTP CU LSZH Ethernet Cable (15 m) with RJ-45 connectors delivers 10GBase-T performance using 24 AWG, 99.9% pure copper conductors. The outer LSZH jacket reduces smoke and hazardous gases in case of fire. This yellow U/UTP cable supports PoE+ and is designed for high-speed wired networks and reliable data transmission.

Advantages

The cable uses 99.9% pure copper strands and 24 AWG to ensure low attenuation and stable 10 Gbit/s transmission. The LSZH outer jacket provides improved safety in enclosed spaces by emitting minimal smoke and no halogenated acidic gases when exposed to flame. Strain relief and a snagless latch protector increase connector durability during installation. RJ-45 contacts are plated with 50µin gold for enhanced contact reliability and extended lifespan.

Suitable for

• 10GBase-T wired networks
• PoE+ powered devices such as IP phones, cameras and wireless access points
• Patch panels, switches and wall ports in offices and server rooms
• Environments requiring LSZH safety standards

Key specifications

• Cable length: 15 m
• Connectors: RJ-45 to RJ-45
• Cabling technology: 10GBase-T
• Conductor: 99.9% pure copper, 24 AWG
• Shielding: U/UTP (unshielded overall, unshielded pairs)
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Contact plating: 50 µin gold
• Data rate: up to 10000 Mbit/s
• Color: Yellow
• Weight: 0.565 kg

How to use

Connect one RJ-45 connector to a network device (switch, router or patch panel) and the other to the target device (computer, IP camera or access point). Ensure connectors are fully inserted until the latch clicks and avoid sharp bends near the connector or along the cable to maintain signal integrity. Route the cable away from high-voltage power lines and sources of electromagnetic interference when possible.

Recommendations

For optimal performance, use this CAT6A cable for runs up to the specified 15 m and follow cabling best practices: maintain proper bend radius, avoid kinks, and keep separation from heavy electrical cables. In installations requiring longer runs or additional shielding, choose the appropriate ProXtend variant that matches your network requirements.
