Cable HDMI AOC InLine, Ultra High Speed HDMI, 8K4K, conector desmontable, 80m

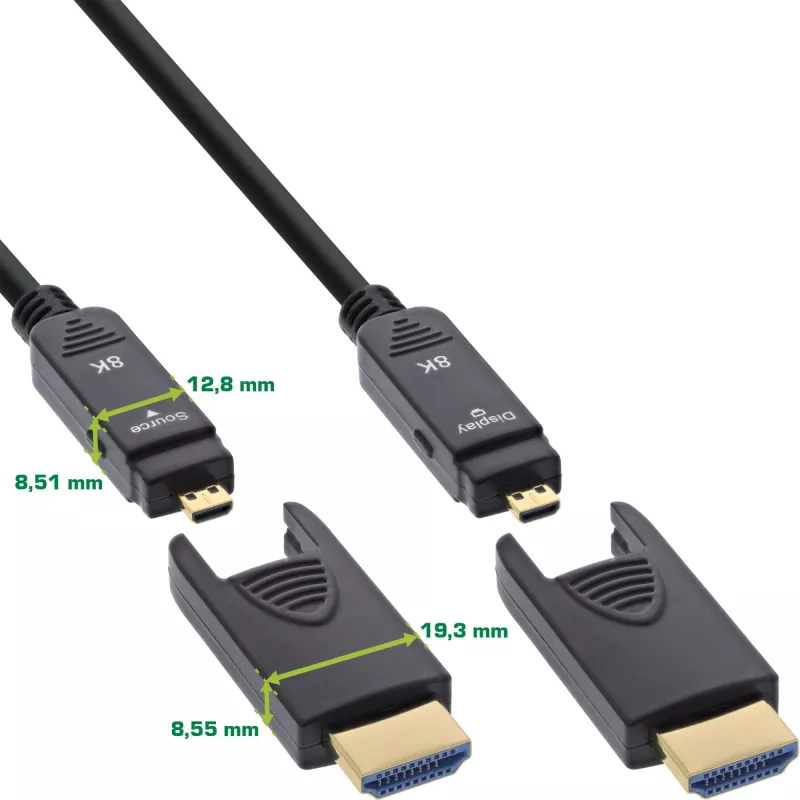

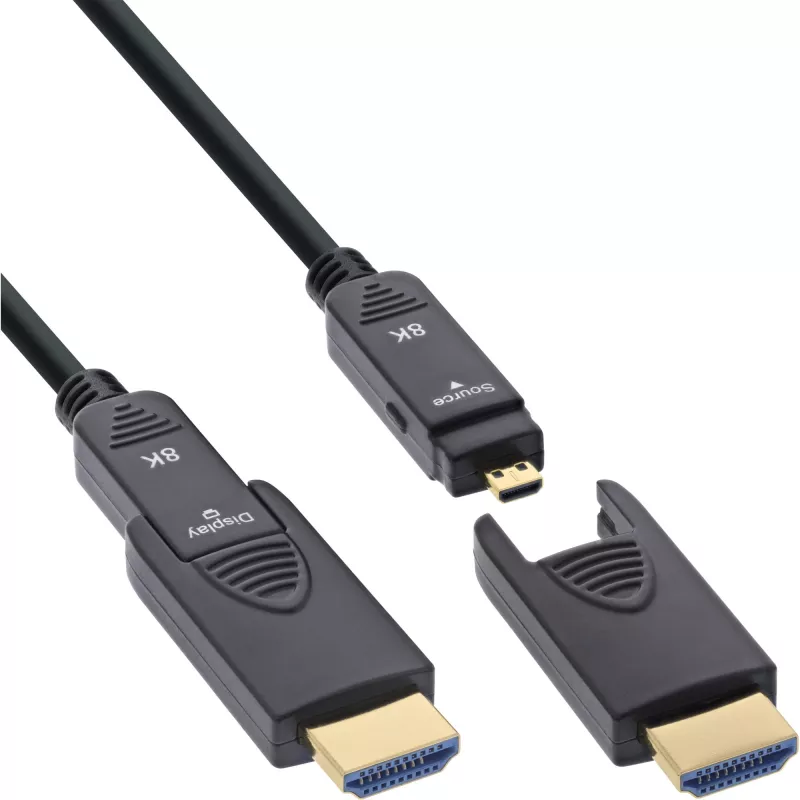

Flexible installation thanks to narrow installation paths:Removable HDMI A and HDMI D connectors allow easy routing through cable ducts – ideal for AV installations.
Loss-free signal quality:Active optical HDMI 2.1 technology enables high-resolution video and audio signals in the highest quality.
Versatile combination options:4-in-1 solution – can be used as HDMI-A/D in both directions, ideal for different connection environments.
Industrial-grade design:Hybrid construction made of fibre optic and copper with aramid protection, gold-plated contacts and robust metal connectors.
Future-proof equipment:Supports 8K@60Hz, 4K@120Hz, HDR, eARC, CEC, HDCP and much more – for professional AV and IT applications.

The InLine® HDMI AOC cable with detachable HDMI plugs is the well-designed solution for professional AV installations with the highest demands on resolution, flexibility and signal quality. Thanks to active optical transmission via fibre optics, it ensures stable, loss-free signal transmission – ideal for digital signage systems, conference rooms or home cinema systems.
The hybrid design of fibre optic and copper, combined with aramid protective braiding and gold-plated contacts, ensures maximum robustness, durability and minimal signal interference. The HDMI A and HDMI D connectors can be removed without tools, making installation in tight spaces particularly easy – perfect for cable ducts, cabinets and flush-mounted solutions.
The cable supports HDMI 2.1 features such as 8K at 60 Hz or 4K at 120 Hz, Dynamic HDR, eARC, HDCP 2.3 and much more, making it ideally equipped for future requirements in presentation technology, entertainment, streaming or broadcasting. The 4-in-1 connection options offer maximum flexibility in practice.

HDMI version: HDMI 2.1 (Ultra High Speed HDMI)
Transmission rate: up to 48 Gb/s
Construction: 4 glass fibres + 7 copper conductors, hybrid
Diameter: 4.8 mm
Temperature range: operation 0 °C to +50 °C, storage -20 °C to +70 °C
Connector: HDMI-A (standard), HDMI-D (micro), detachable
Supported functions: HDR, eARC, HDCP, CEC, DDC, EDID, 3D, Dynamic HDR
Directional (source → display)
Contact material: gold-plated
Connector housing: metal, aramid-protected

InLine HDMI AOC cable, Ultra High Speed HDMI, 8K4K, detachable plug, 80m. Cable length: 80 m, Connector 1: HDMI Type-A/HDMI Type-D, Connector 1 gender: Male, Connector 2: HDMI Type-A/HDMI Type-D, Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.1, 3D, Data transfer rate: 48 Gbit/s, Audio Return Channel (ARC), Product colour: Black

How to use

Route the InLine HDMI AOC cable between the source device (HDMI output) and the display (HDMI input) following the directional marking from HDMI plug (source) to HDMI plug (display). Use the detachable HDMI A or D plug configuration suitable for your installation to pass the connector through narrow cable ducts and then assemble the plug at both ends. Connectors should be inserted fully into HDMI sockets; ensure devices are powered according to their manufacturer instructions. No external power supply is required for the cable’s active components.

Recommendations

For optimal performance, avoid sharp bends and tight kinks in the cable; maintain the recommended minimum bend radius and secure the cable to prevent mechanical stress at connector points. Use the detachable plug option to simplify routing through conduits and confirm source and display support for HDMI 2.1 features (e.g., eARC, 4K@120Hz, 8K@60Hz) to take full advantage of the cable’s capabilities.
