Cable HDMI DELOCK 81684 — 1 m, HDMI Type-A (conector macho) a HDMI Type-C (conector macho), 48 Gbit/s, 7680×4320, negro

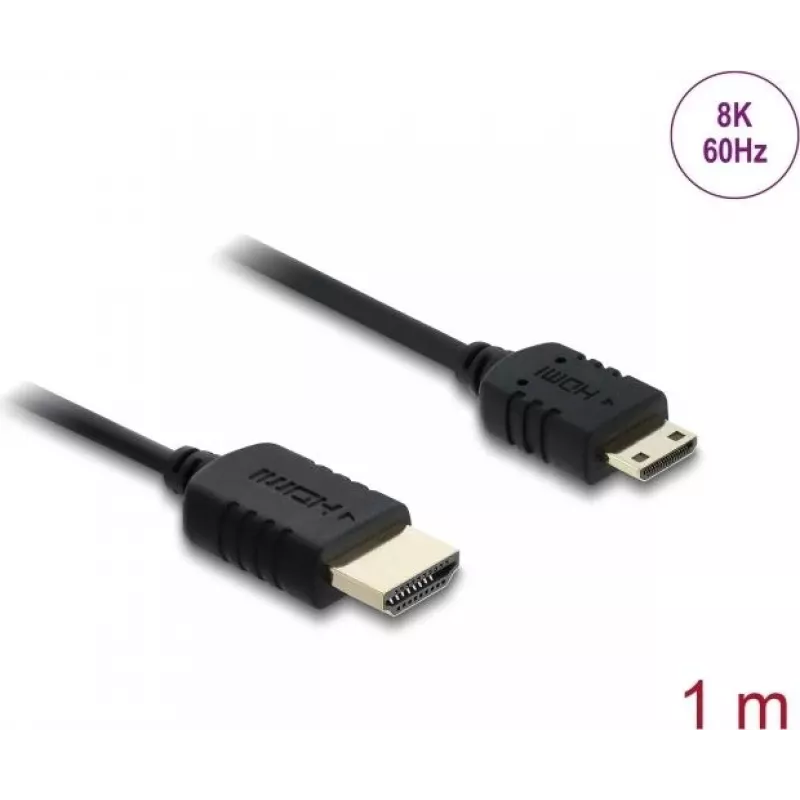

DELOCK 81684 is a 1 m HDMI cable with a standard HDMI Type A male connector and a Mini HDMI Type C male connector. Designed for connecting cameras, tablets or portable devices with a Mini HDMI output to TVs, monitors or capture devices, this cable supports a high bandwidth of up to 48 Gbit/s and resolutions up to 7680×4320 @ 60 Hz. The cable features gold-plated contacts, triple shielding and coaxial construction to ensure reliable transmission of audio and video signals.

Advantages

The cable supports 48 Gbit/s transfer rates and multiple high-resolution modes, enabling 8K displays at 60 Hz as well as high-frame-rate 4K and lower resolutions. It is compatible with Dynamic HDR and Dolby Vision for improved colour, contrast and brightness reproduction. Enhanced Audio Return Channel (eARC) and support for up to 32 audio channels allow uncompressed, lossless audio delivery to connected sound systems. Gold-plated contacts and triple shielding reduce signal loss and interference for stable performance.

Suitable for

• Connecting cameras or camcorders with Mini HDMI output to TVs or capture devices
• Connecting tablets or portable media players with Mini HDMI to monitors or projectors
• Home cinema setups requiring high bandwidth and eARC support
• Gaming systems and displays using VRR / high frame rates

Key specifications

• Cable length: 1 m
• Connectors: HDMI Type A (Standard) male to HDMI Type C (Mini) male
• Maximum data transfer rate: 48 Gbit/s
• Maximum resolution: 7680 × 4320 @ 60 Hz (dependent on source and sink hardware)
• Supported frame rates: up to 5120 × 2880 @ 120 Hz and 3840 × 2160 @ 240 Hz (dependent on hardware)
• Audio: eARC support, up to 32 audio channels, up to 1536 kHz sampling rate, Dolby TrueHD and DTS-HD Master Audio compatible
• HDR: Dynamic HDR and Dolby Vision support
• Video features: 21:9 aspect ratio support, 1080p HFR 3D, 4:4:4, 4:2:2 and 4:2:0 colour sampling, Display Stream Compression 1.2 (DSC)
• Gaming features: Game Mode VRR support
• Construction: 36 AWG coaxial cable, approx. 3.3 mm diameter, triple shielded, gold-plated contacts
• Colour: Black

How to use

Connect the HDMI Type C (Mini) male plug to the Mini HDMI port on your camera, tablet or portable device and the HDMI Type A (Standard) male plug to the HDMI input on your TV, monitor or capture device. Ensure both source and display devices are powered on and set to the correct input. If you require advanced features such as eARC, HDR or VRR, enable the corresponding settings in the source and display device menus and verify compatibility with connected hardware.

Recommendations

For optimal performance, use this 1 m cable for short-distance connections between portable devices and displays. Verify that both connected devices support the desired resolutions, refresh rates and audio formats. Avoid excessive bending near the connector ends and keep the cable away from strong electromagnetic sources to minimise interference.
