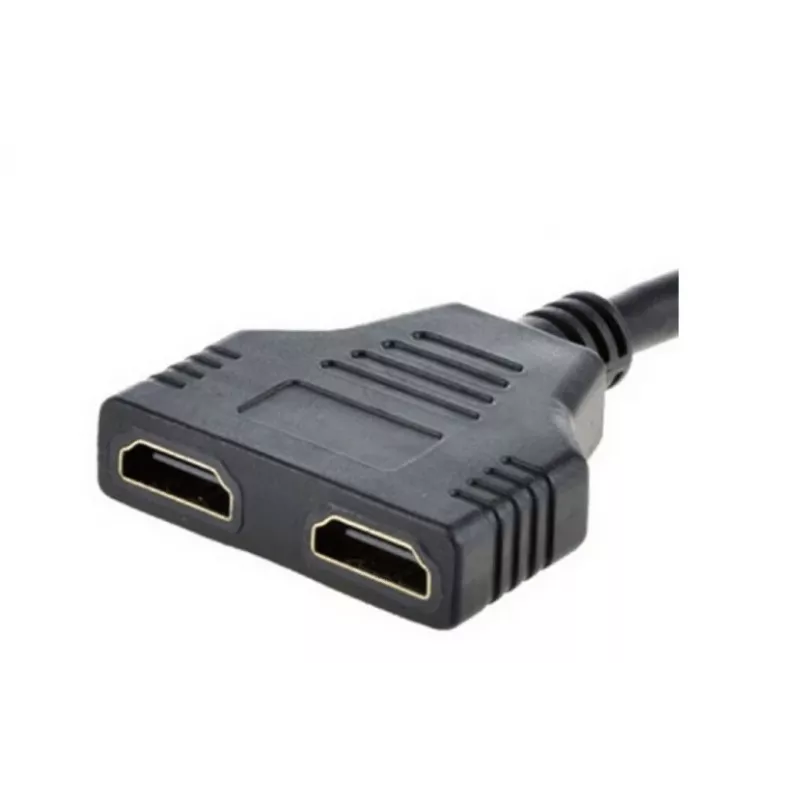

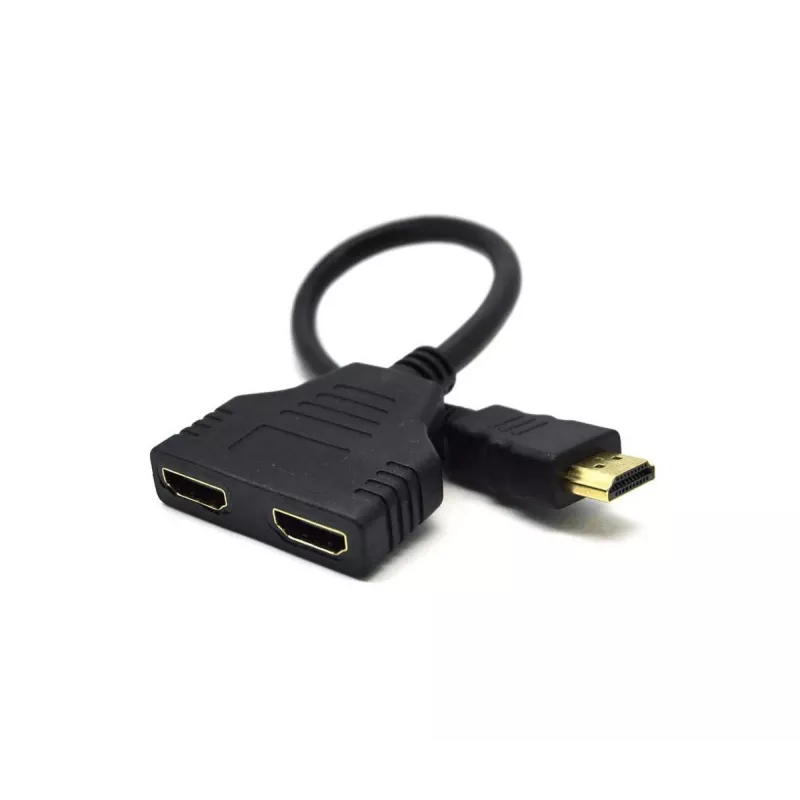

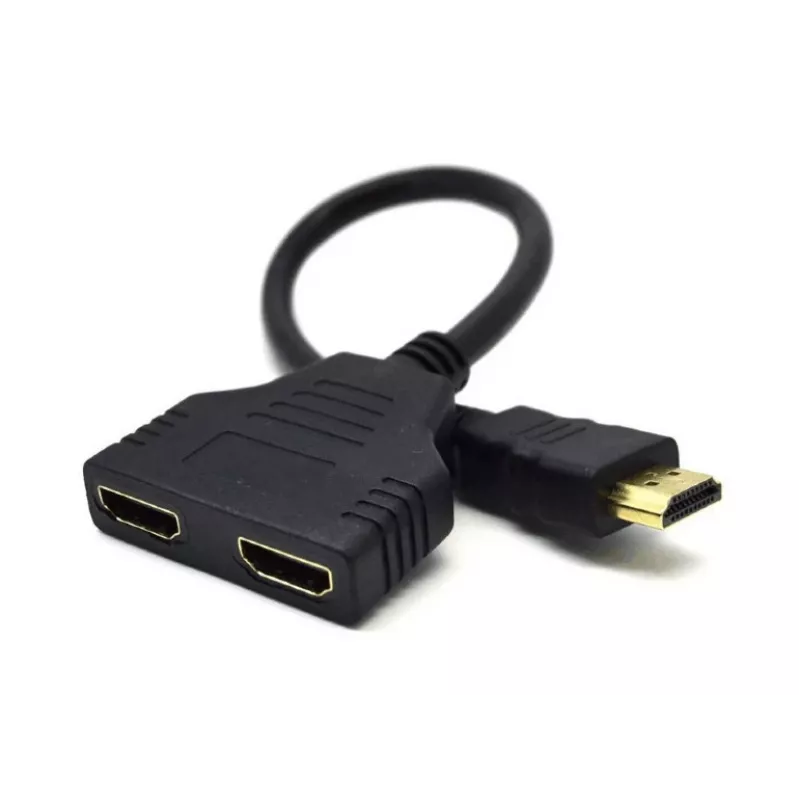

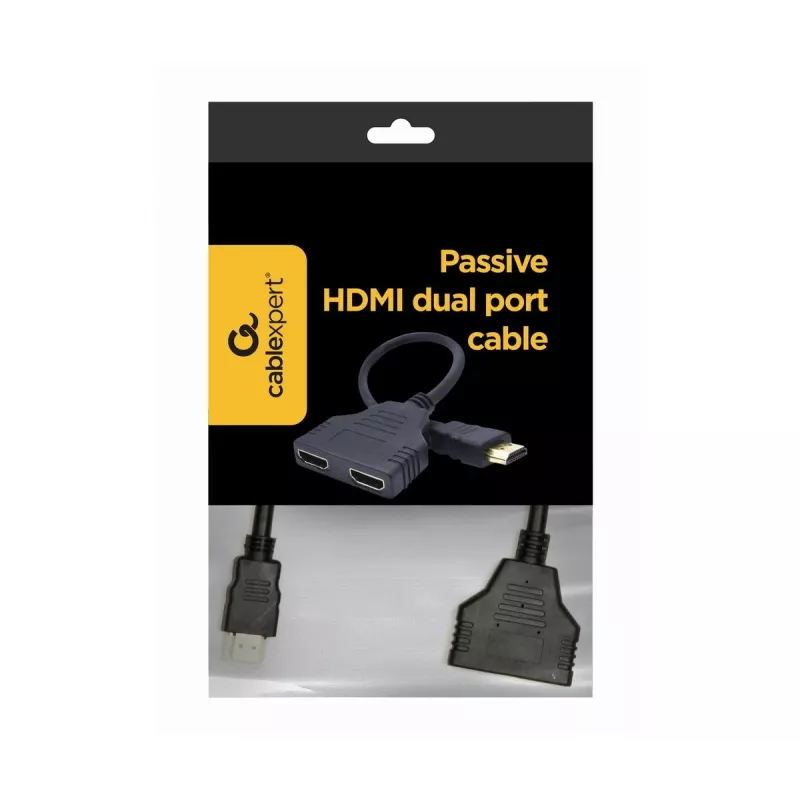

Cable HDMI Gembird DSP-2PH4-04 — HDMI Type-A macho a 2× HDMI Type-A hembra, negro, conectores rectos

The Gembird DSP-2PH4-04 HDMI cable splits a single HDMI Type A signal into two HDMI Type A outputs, allowing one source device to feed two displays such as monitors, projectors or TVs. The cable assembly has one male HDMI Type A connector and two female HDMI Type A connectors and comes in black.

Advantages

This adapter-style HDMI cable provides a simple wired solution for sending the same HDMI video and audio signal to two separate displays without additional power or complex setup. Its standard HDMI Type A connectors ensure compatibility with many TVs, projectors and computer graphics outputs while the compact design keeps the connection tidy.

Suitable for

• Mirroring a laptop or media player to two TVs
• Connecting one HDMI source to two monitors for identical display
• Feeding the same presentation to two projectors in small meeting rooms

Key specifications

• Connector 1: HDMI Type A (male)
• Connector 2: 2 × HDMI Type A (female)
• Product colour: Black
• Brand: Gembird
• Model / MPN: DSP-2PH4-04
• EAN: 8716309096669

How to use

Connect the male HDMI Type A plug to the HDMI output of your source device (for example a laptop, set-top box or media player). Then attach HDMI cables from the two female HDMI Type A ports on the adapter to the HDMI inputs of the target displays. Power on the source and displays; the same signal will appear simultaneously on both connected displays if the source supports passive splitting.

Recommendations

Use quality HDMI cables between the adapter and displays, and verify the source device supports passive splitting—some devices or resolutions may require an active splitter for reliable multi-display output.
