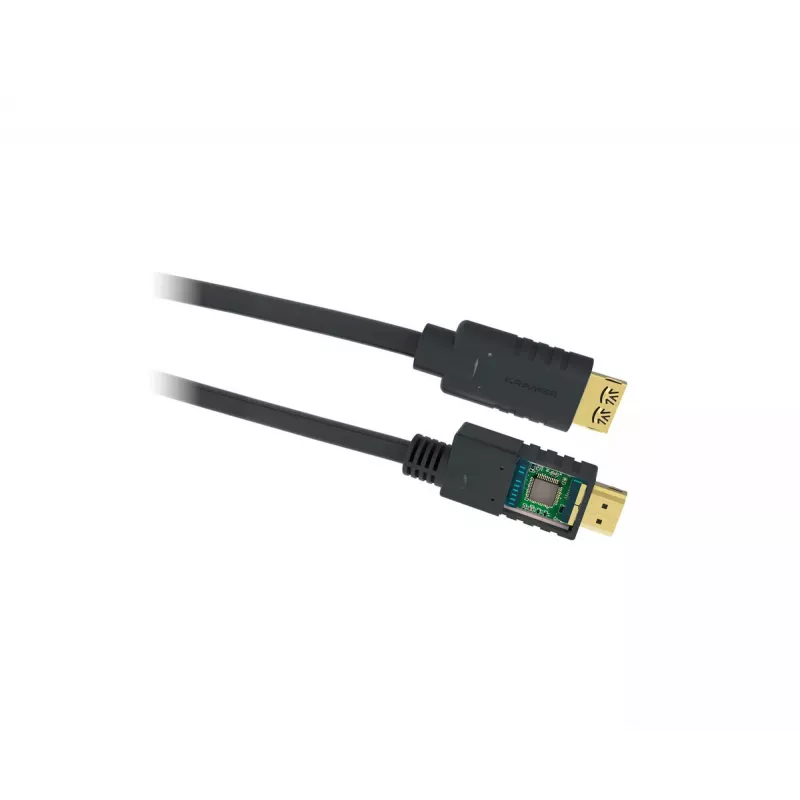

Cable HDMI Kramer Electronics CA-HM 30 m

The Kramer Electronics CA-HM HDMI cable (30 m) is a long-reach HDMI Type A to Type A copper cable designed for professional AV installations. It supports data rates up to 18 Gbps for reliable transmission over 20 m and up to 10.2 Gbps over 30 m, carries 3D and Audio Return Channel (ARC) signals, and uses gold-plated contacts. The cable draws power from the HDMI source and does not require an external power supply.

Advantages

CA-HM incorporates advanced equalizing and signal compensation in the connector to maintain signal integrity over extended distances. The cable is plug & play and powered from the HDMI source, eliminating the need for a separate power adapter. It features Kramer's K-Lock HDMI connector to prevent accidental disconnects and an LED indicator on the connector that shows when a signal is successfully transmitted.

Suitable for

• Long-distance HDMI connections in professional AV installations
• Connecting displays, projectors or AV receivers where a 30 m cable run is required
• Setups requiring secure, lockable HDMI connections to avoid accidental unplugging

Key specifications

• Cable length: 30 m
• Connectors: HDMI Type A (Standard) on both ends
• Maximum data rate: 18 Gbps (up to 20 m); 10.2 Gbps up to 30 m
• Features: 3D support, Audio Return Channel (ARC), gold-plated contacts
• Color: Black
• Model / MPN: 97-0142098
• EAN: 7291063086121

How to use

Connect each HDMI Type A connector to the HDMI output of the source device and the HDMI input of the display or receiver. The cable draws power from the source automatically; no external power is required. Ensure the K-Lock connector is engaged to secure the connection and observe the LED on the connector to confirm successful signal transmission.

Recommendations

For optimal performance, avoid sharp bends and tight kinks along the 30 m run, keep the cable away from large electrical noise sources and follow equipment manufacturer guidelines for HDMI settings and resolutions.
