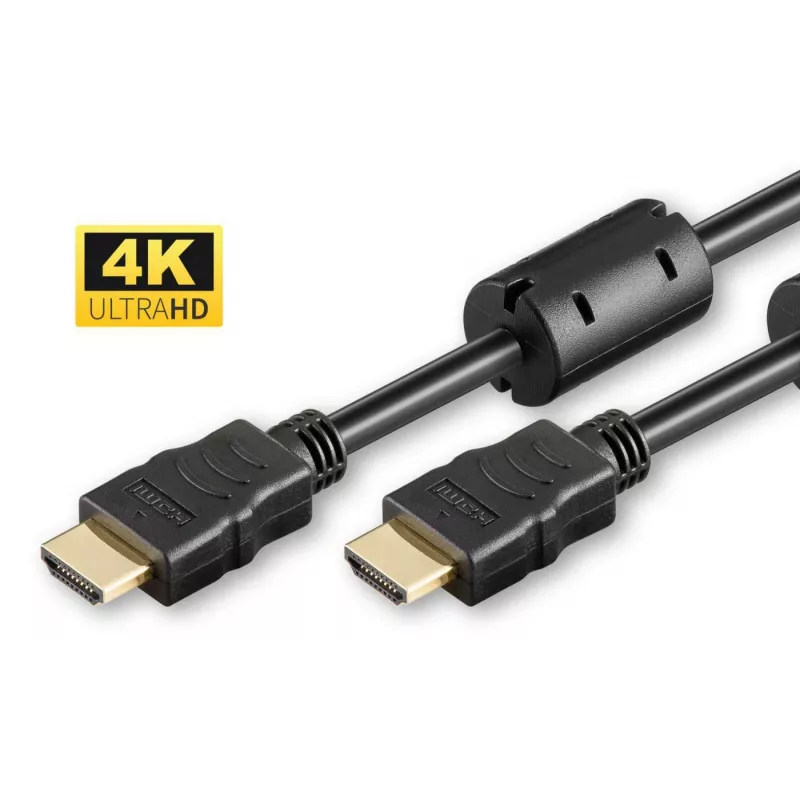

Cable HDMI MicroConnect HDM19191V1.4FC 1 m

The MicroConnect HDM19191V1.4FC HDMI cable (1 m) is a high-speed HDMI 1.4 connection designed for digital transmission of video and audio between source devices and displays. It features HDMI Type A connectors with gold plating, supports up to 10.2 Gbit/s throughput and resolutions up to 3840 × 2160 (4K) at 30 Hz, and includes support for HDCP 2.2, CEC, ARC and 3D. Ferrite cores are integrated to reduce noise and interference for stable signal transmission.

Advantages

This HDMI cable provides High Speed performance with a data rate of up to 10.2 Gbit/s and supports 4K@30Hz, HDCP 2.2, CEC, ARC and 3D. Gold-plated HDMI Type A connectors improve contact reliability and signal transfer. The built-in ferrite cores help attenuate electromagnetic interference, making the cable suitable for typical home entertainment and office AV setups. The 1 m length and black jacket make it convenient for close device connections while remaining unobtrusive.

Suitable for

• Connecting TVs and projectors to set-top boxes or media players
• Linking gaming consoles to displays
• Connecting laptops or PCs to external monitors or AV receivers
• Home theatre setups using ARC and CEC functions

Key specifications

• Standard: HDMI 1.4 (High Speed)
• Maximum data rate: 10.2 Gbit/s
• Maximum resolution: 3840 × 2160 (4K) @ 30 Hz
• Connectors: HDMI Type A (Standard) — gold plated (both ends)
• Features: HDCP 2.2, CEC, ARC, 3D
• Cable length: 1 m
• Colour: Black
• Ferrite cores: Yes

How to use

Connect one HDMI Type A end to the output of your source device (for example a Blu-ray player, set-top box, game console or PC) and the other end to the HDMI input on your display (TV, monitor or projector). If desired, enable CEC or ARC on compatible devices to control multiple devices or use audio return functionality. Ensure both devices support the chosen resolution and HDCP version for protected content playback.

Recommendations

For optimal performance, avoid tight bends and heavy kinking of the cable, keep it away from large power cables and strong electromagnetic sources, and use the 1 m length for short-distance connections between nearby devices. Verify device settings for HDCP and resolution to achieve the expected 4K@30Hz output.
