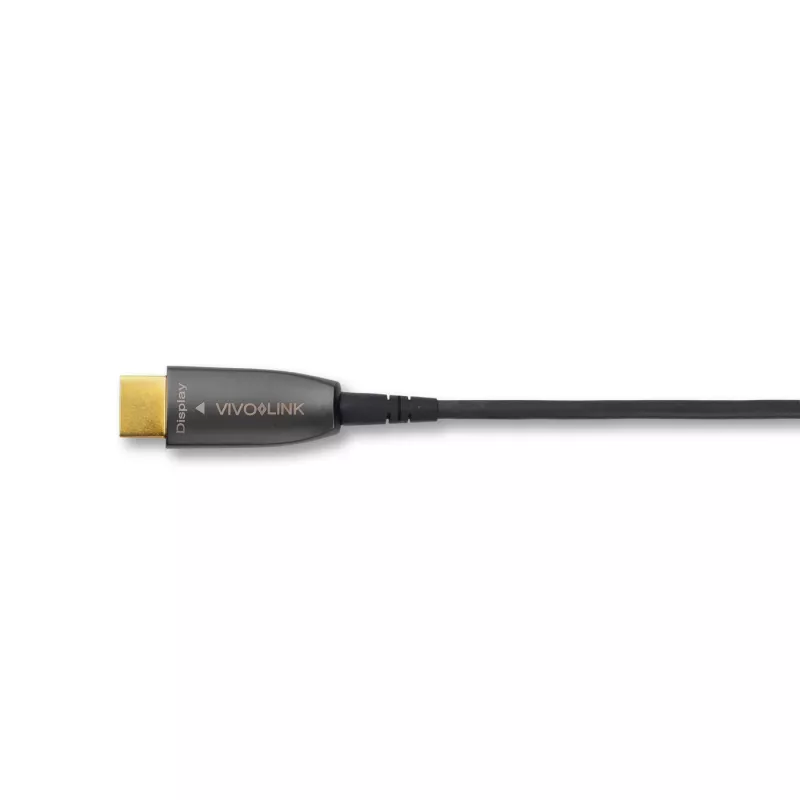

Cable HDMI Vivolink OPTIC 4K 15 m

The Vivolink OPTIC HDMI 4K Cable (15 m) is a slim, high-performance HDMI 2.0 cable designed for long-distance transmission of high-resolution video and audio. It supports up to 4K (4096 x 2160) at 60 Hz with 4:4:4 chroma sampling, HDR 12-bit, HDCP 2.2, 3D and ARC. The cable uses HDMI Type A connectors with gold plating and has a slim profile of approximately 4.0 mm.

Advantages

The cable provides an 18 Gbit/s data rate suitable for 4K/60Hz 4:4:4 signals and HDR 12-bit content. Gold-plated HDMI Type A connectors improve contact reliability and resist corrosion. Its slim 4.0 mm construction makes routing through tight spaces easier, while a tensile strength of 20 kg ensures durability during installation and handling. The 15 m length allows placement of displays or projectors at larger distances from source devices.

Suitable for

• Long-distance connections where high-resolution 4K video is required
• Home cinema and AV installations with ARC and 3D support
• Connecting 4K projectors or displays to Blu-ray players, media players, or AV receivers

Key specifications

• Standard: HDMI 2.0
• Maximum resolution: 4096 x 2160 @ 60 Hz (4K/60Hz)
• Chroma: 4:4:4
• Data rate: 18 Gbit/s
• HDR: 12-bit
• Content protection: HDCP 2.2
• Features: 3D, ARC

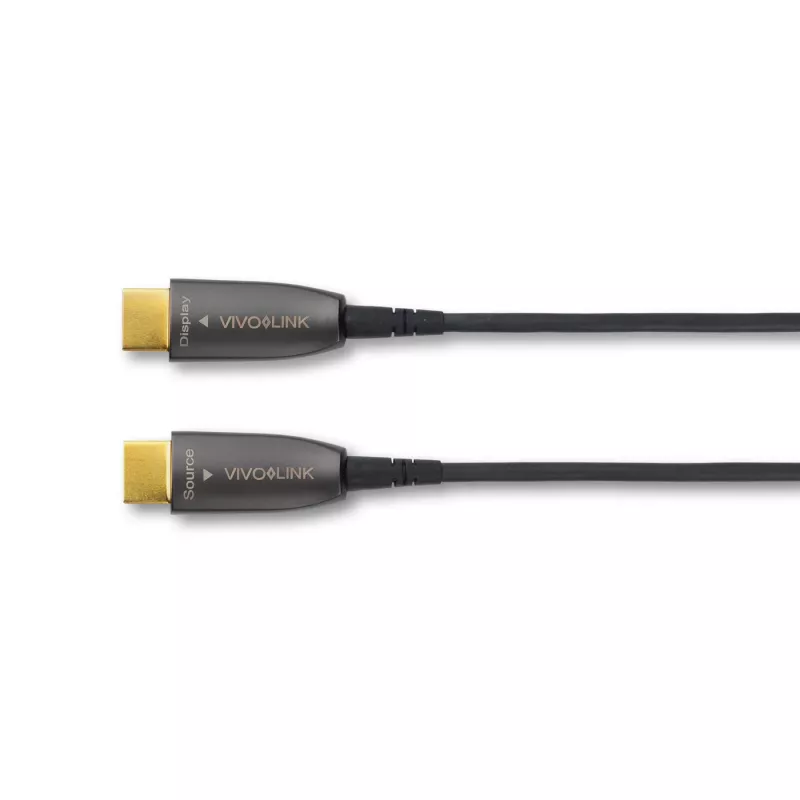

• Connector type: HDMI Type A (gold-plated) – both ends
• Length: 15 m
• Outer thickness: approx. 4.0 mm
• Tensile strength (pull resistance): 20 kg
• Colour: Black

How to use

Connect one HDMI Type A end to the source device (such as a Blu-ray player, media player, game console or AV receiver) and the other end to the display device (TV, monitor or projector). Ensure connectors are fully inserted and devices are powered on. If using ARC, enable the ARC function in both TV and AV receiver settings. For best results, avoid tight bends near the connectors and allow gentle curves along the cable run.

Recommendations

For reliable 4K/60Hz transmission over 15 m, keep connections clean and avoid sharp bends. If running the cable through walls or conduits, verify local installation codes and use appropriate conduit or grommets to protect the slim cable.
