Cable HDMI Vivolink PRO HDMI CONECTOR MACHO - HEMBRA HDMI 2.0 4K - 2K 3 m

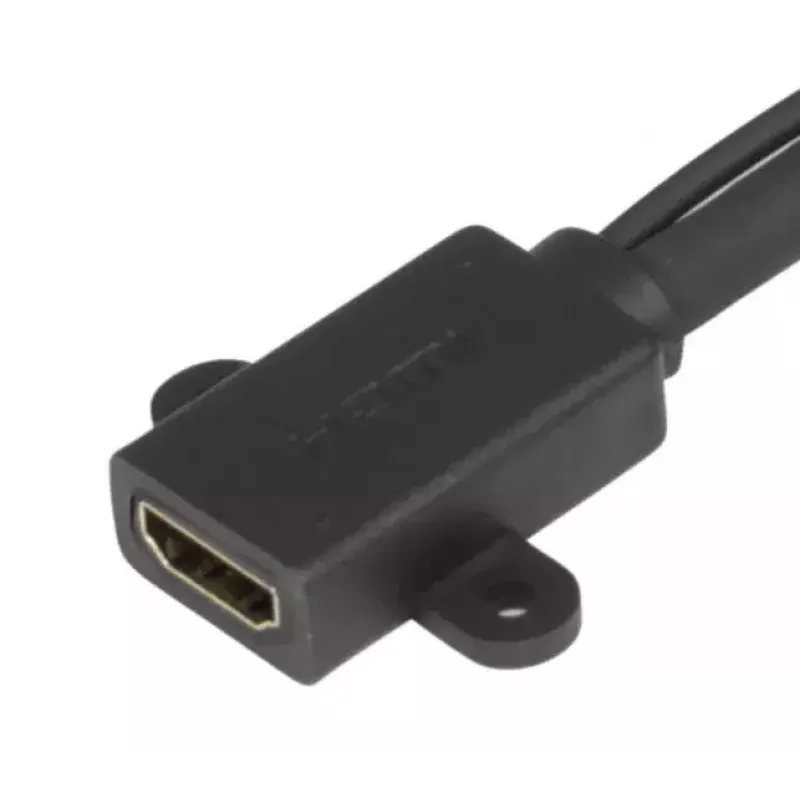

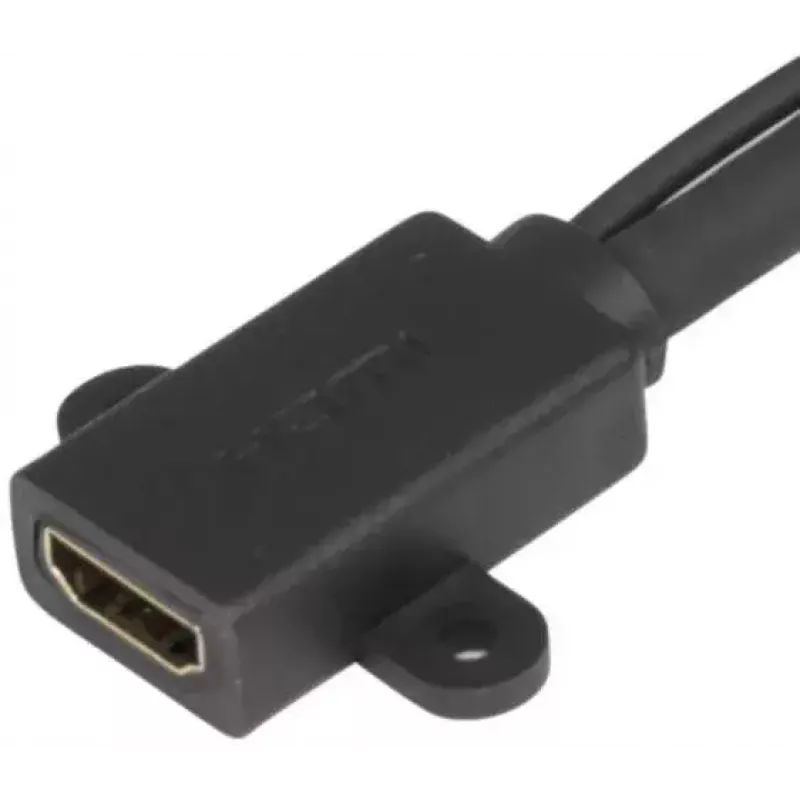

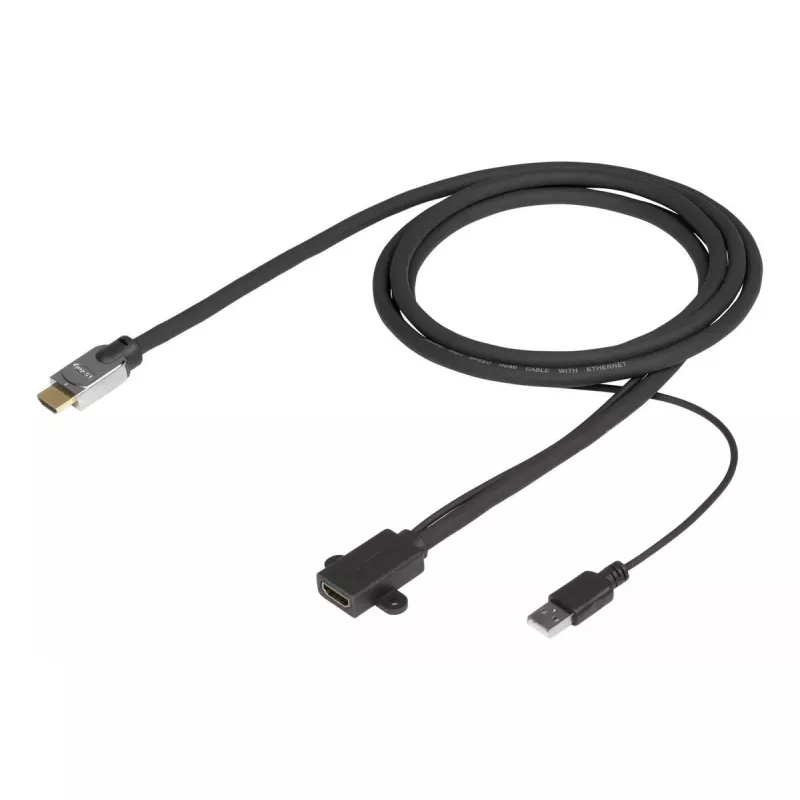

The Vivolink PRO HDMI MALE - FEMALE HDMI 2.0 4K - 2K 3m is a high-performance HDMI 2.0 cable designed for professional AV environments. It supports resolutions up to 4096 x 2160 (4K) at 60 Hz, HDCP 2.2, CEC and Audio Return Channel (ARC), and provides a data transfer rate of 18 Gbit/s. The cable features a metal housing, gold-plated connectors and an ultra-flexible jacket. The female HDMI end includes mounting ears for secure installation and an optional USB power injection cable is provided for fiber setups.

Advantages

This 3 m HDMI cable delivers stable high-bandwidth signal transmission (18 Gbit/s) suitable for 4K@60Hz content and supports HDCP 2.2 for protected sources. The metal connector housings and gold-plated contacts ensure reliable electrical contact and resistance to wear. Its ultra-flexible design and integrated mounting ears on the female connector simplify routing and secure fastening in professional AV installations. A separate USB power injection lead is included for use with fiber or powered signal extenders.

Suitable for

• Connecting 4K@60Hz sources (Blu‑ray players, media players) to displays and projectors
• Professional AV installations where cable routing and secure mounting are required
• Setups requiring ARC or CEC control between TV and audio equipment
• Systems using fiber extenders that need USB power injection

Key specifications

• Standard: HDMI 2.0
• Maximum resolution: 4096 x 2160 @ 60 Hz
• Bandwidth: 18 Gbit/s

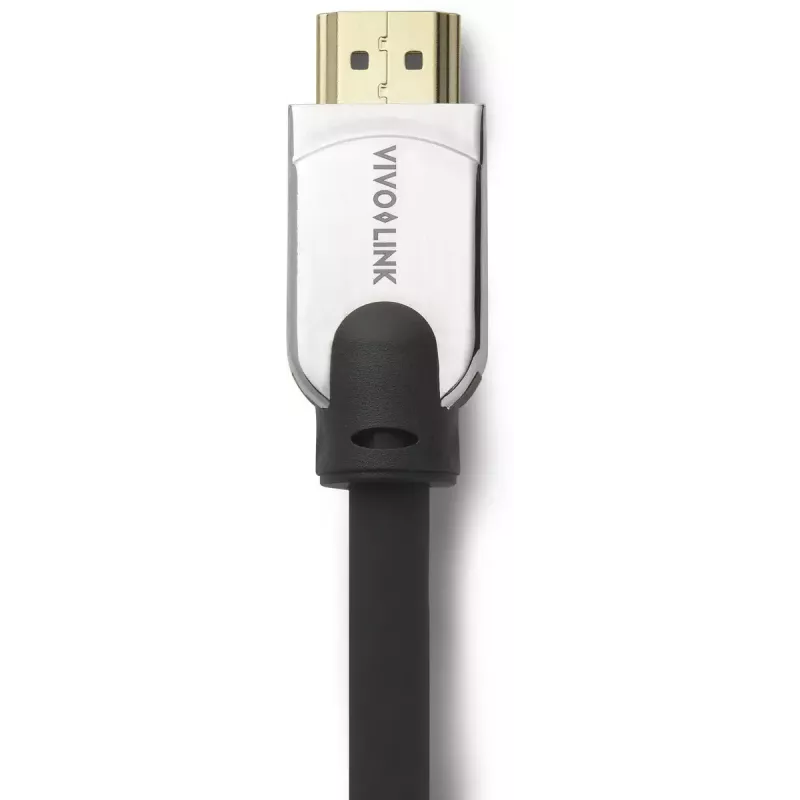

• Connector types: HDMI Type A male to HDMI Type A female
• Length: 3 m
• Features: HDCP 2.2, CEC, ARC
• Housing: Metal; connectors gold-plated
• Color: Black
• Manufacturer: VivoLink, MPN: PROHDMIHDMFM3, EAN: 5706998811660

How to use

Connect the HDMI male end to the video source and the HDMI female end to the display or to a short HDMI patch cable if reaching a recessed port. Use the mounting ears on the female connector to secure the cable under a table or to a rack using screws or cable ties suitable for the mounting points. If your setup uses fiber extenders or requires external power for the signal path, attach the supplied USB power cable to a USB power source and the designated power input.

Recommendations

For best signal integrity, avoid sharp bends and tight kinks; maintain gentle radii when routing the ultra-flexible cable. Use the mounting ears to prevent strain on connectors and ensure proper grounding of connected equipment. When using HDCP-protected content, verify all connected devices support HDCP 2.2.
