Cable HDMI Vivolink PRO HDMI CONECTOR MACHO - HEMBRA HDMI 2.0 4K - 2K 5 m

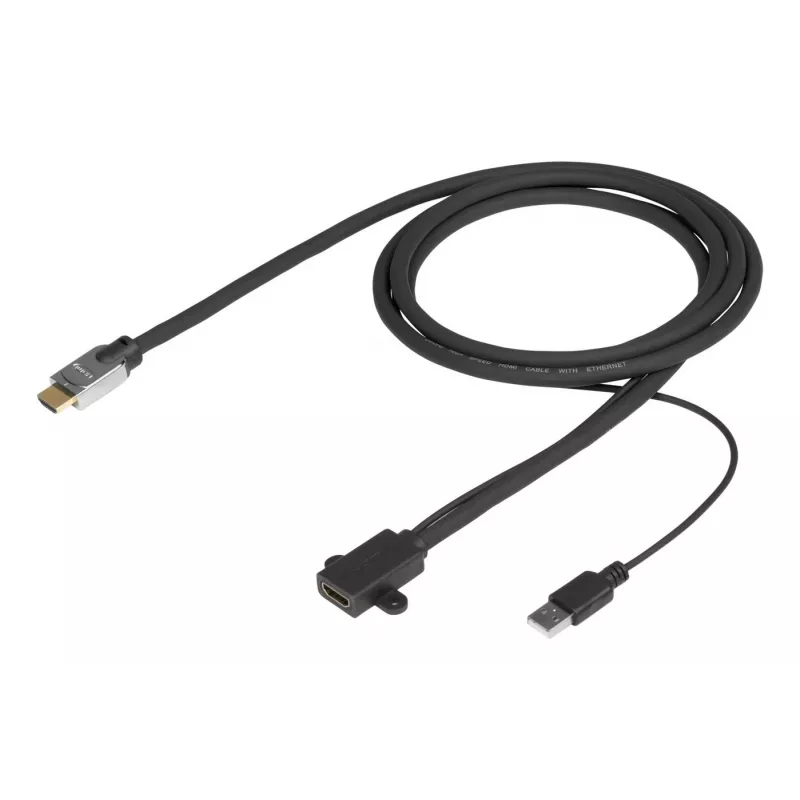

Vivolink PRO HDMI MALE - FEMALE HDMI 2.0 4K - 2K 5m is a high-performance HDMI extension cable with metal housing, offering a 5 m length and support for resolutions up to 4096 x 2160 at 60 Hz. The cable supports HDMI 2.0 features including HDCP 2.2, CEC and ARC, provides a data rate up to 18 Gbit/s, and includes gold-plated connectors for reliable signal transmission. The design is aimed at professional AV environments and the HDMI female end includes mounting ears for secure installation.

Advantages

The cable delivers high-speed 18 Gbit/s throughput for 4K@60Hz content while maintaining compatibility with HDCP 2.2 and 3D formats. Its metal housing and gold-plated connectors improve durability and signal quality, and the ultra-flexible jacket simplifies routing in installations. A USB power injection option is available for systems that require additional power, and the HDMI female end has ears for secure mounting under furniture or in AV racks.

Suitable for

• Extending HDMI connections between source devices and displays up to 5 m
• Professional AV installations where secure mounting is required
• 4K@60Hz video playback with HDCP 2.2-protected content
• Setups requiring ARC or CEC functionality

Key specifications

• Length: 5 m
• Standard: HDMI 2.0
• Maximum resolution: 4096 x 2160 @ 60 Hz
• Data rate: 18 Gbit/s
• Features: HDCP 2.2, CEC, ARC, 3D support
• Connectors: HDMI male to HDMI female, gold-plated
• Housing: metal
• MPN: PROHDMIHDMFM5
• EAN: 5704174242703

How to use

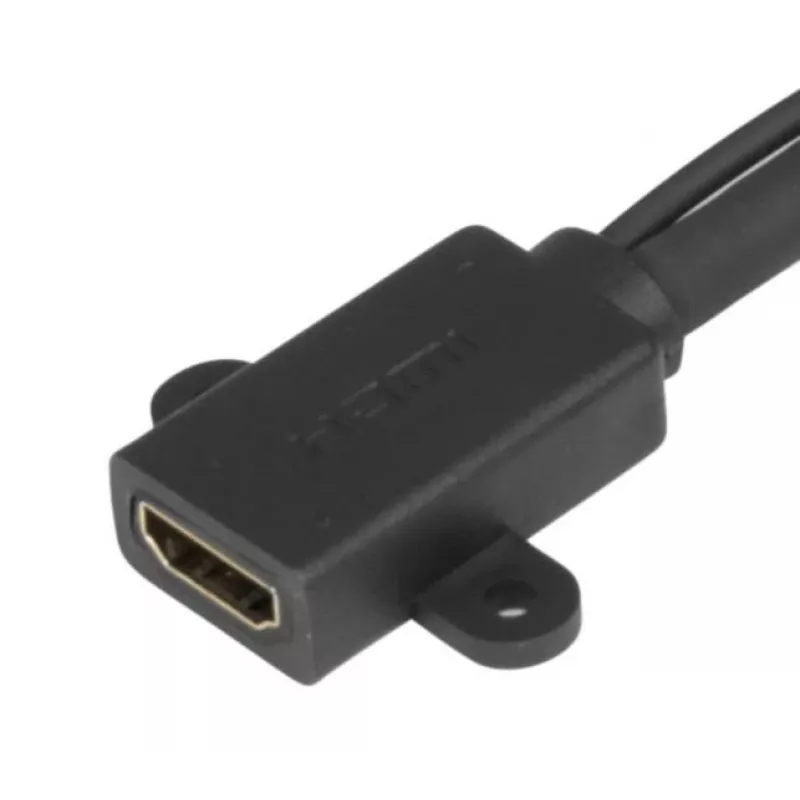

Connect the HDMI male end to the source device and the HDMI female end to the display or to another HDMI cable. If the installation requires additional power for active components or fiber conversion, use the provided USB power injection cable according to the system instructions. Secure the female connector using the mounting ears where fixed installation is needed, for example under a table or inside an AV rack.

Recommendations

For best performance, avoid tight bends and sharp kinks; maintain gentle cable radii when routing. Verify device compatibility with HDCP 2.2 when playing protected 4K content and ensure USB power is connected if downstream active components require it.
