Cable InfiniBand/fibra óptica Microconnect FIB224003 3 m SC amarillo

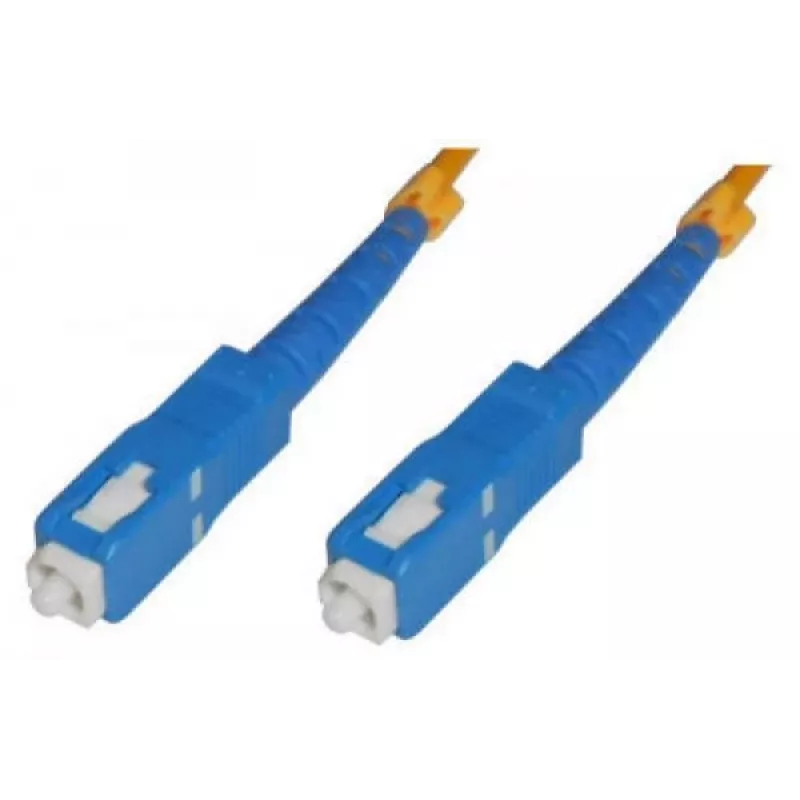

Microconnect FIB224003 is a 3 m single mode fibre optic cable with SC connectors on both ends, designed for high-speed network connections in data centres, server rooms and telecom environments. Compliant with OS2 single mode specifications and manufactured with LSZH jacket material, the cable supports 1G/10G/40G/100G Ethernet links and offers long-distance transmission up to 10 km at 1310 nm or up to 40 km at 1550 nm.

Advantages

The SC–SC single mode patch cord provides stable, low-loss optical performance suitable for enterprise and telecom networks. Its OS2 core and LSZH outer jacket meet common industry standards (IEC, EIA/TIA, Telcordia), while the 3 m length and yellow colouring make it easy to identify and route within racks and cable runs.

Suitable for

• Data centres and server farms
• Telecom rooms and central offices
• Cloud storage and high-speed LAN links (1G/10G/40G/100G)
• Long-distance fibre connections up to 40 km

Key specifications

• Brand: MicroConnect
• MPN: FIB224003
• Length: 3 m
• Connector type: SC–SC
• Fibre type: OS2 (single mode, 9 µm core)
• Jacket: LSZH
• Colour: Yellow
• Typical transmission: up to 10 km at 1310 nm; up to 40 km at 1550 nm
• Weight: 0.02 kg
• EAN: 5704327408765

How to use

Install the SC connectors into the corresponding SC ports on your networking equipment or patch panels. Ensure connectors and ports are clean before mating to avoid signal loss; use appropriate fibre cleaning tools if required. Route the 3 m cable without tight bends or kinks and secure it with cable management accessories to prevent strain on connectors.

Recommendations

For optimal performance, keep connector end-faces clean and avoid bending the cable beyond its minimum bend radius. Use in indoor installations with appropriate cable management; replace the cable if physical damage or persistent signal issues occur.
