Cable InfiniBand/fibra óptica TP-Link Omada SM9220-1M QSFP28 Twinax negro

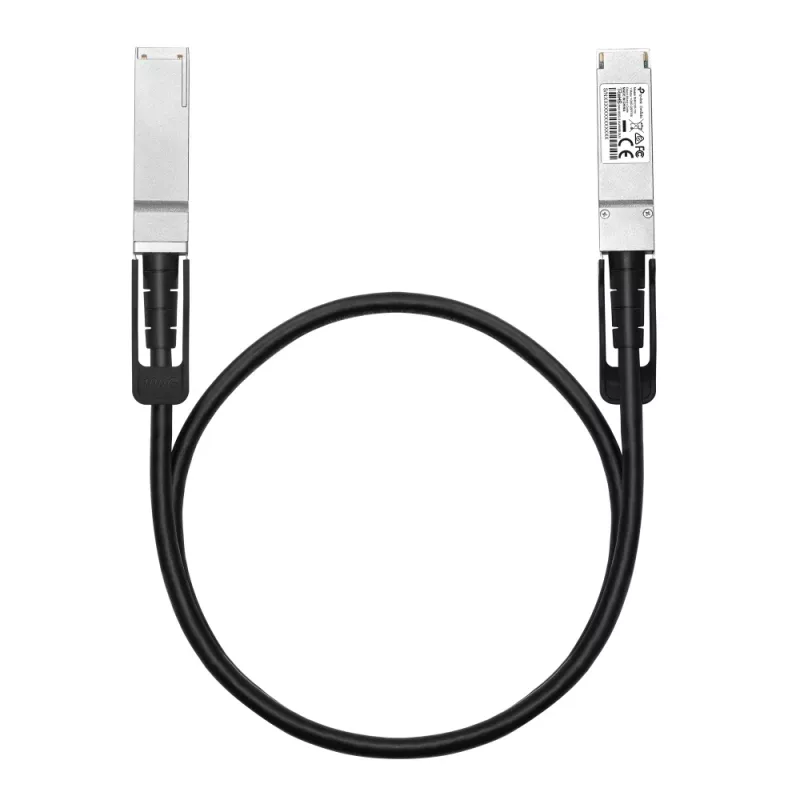

SM9220-1M is a passive Direct Attach Cable (Twinax) with a length of 1 meter and QSFP28 connectors on both ends, designed for short-distance transmission of 100 Gbps data. Manufactured by TP‑LINK for rack-to-rack and intra-rack connections, this cable provides a compact, low-latency connection option for data centers and enterprise networking equipment.

Advantages

The cable supports 100 Gbps data transmission and uses QSFP28 connectors on both sides for direct compatibility with QSFP28 ports. As a passive Twinax assembly, it offers low power use and low latency for short links up to 1 m. The design allows hot-swappable installation and a jacket made of OFNR or PVC depending on the variant, providing standard durability and flexibility for typical data center environments.

Suitable for

• High-speed rack-to-rack connections in data centers
• Short-distance links between adjacent switches or servers
• 100 Gbps QSFP28 network ports and devices
• Environments requiring low-latency direct attach cabling

Key specifications

• Cable type: Twinax
• Cable length: 1 m
• Connector 1: QSFP28 Male
• Connector 2: QSFP28 Male
• Data rate: 100 Gbit/s
• Product colour: Black
• Jacket material: Optical fiber non-conductive riser (OFNR) or Polyvinyl chloride (PVC)

How to use

Insert each QSFP28 connector into matching QSFP28 ports on networking devices or servers until they click into place. Use the cable for direct short-distance links (up to 1 m) between compatible QSFP28 ports. The cable supports hot swapping—remove or install it while devices are powered, following your equipment vendor's procedures for link up/down handling.

Recommendations

For reliable operation, use this passive Twinax cable only for short-reach connections (up to 1 m) between QSFP28-compatible ports. Avoid tight bends and excessive mechanical stress on the cable; follow your data center’s cable management and safety guidelines when routing and securing the cable.
