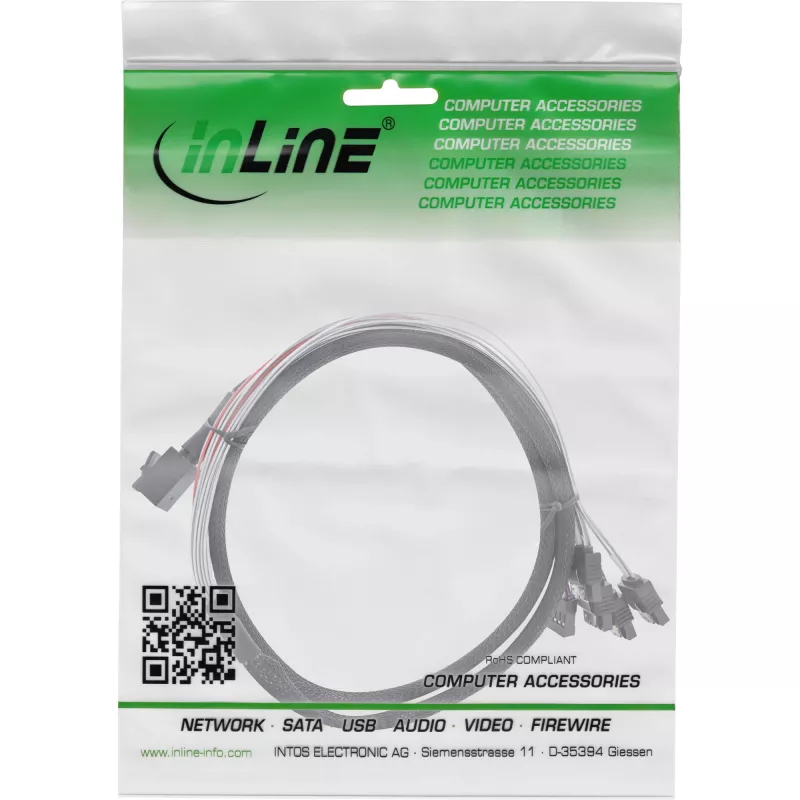

Cable Mini SAS HD InLine SFF-8643 a 4x SATA + Sideband 1 m

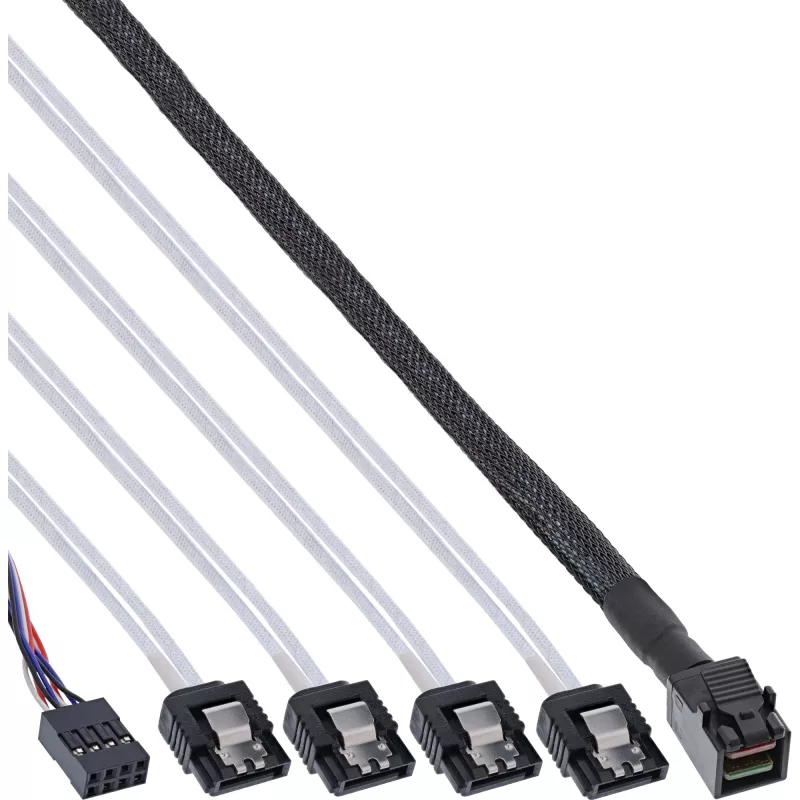

The InLine Mini SAS HD Cable SFF-8643 to 4x SATA + Sideband 1m is an internal cable for connecting a device or controller with a Mini SAS HD 4i (SFF-8643) interface to up to four SATA drives. With a 1 m length and a single SFF-8643 plug on one end and four SATA plugs on the other, the cable enables consolidation of multiple SATA connections from a SAS controller or backplane to individual hard drives or SSDs.

Advantages

This 1 m Mini SAS HD to 4x SATA cable supports high-speed data transfer between SAS controllers and SATA drives while keeping cable routing inside the chassis neat. The single SFF-8643 connector reduces port usage on the controller and the four SATA outputs provide direct connections to individual drives. The cable is manufactured in black with durable construction for reliable internal server and storage use.

Suitable for

• Connecting a SAS controller with SFF-8643 output to up to four SATA HDDs or SSDs
• Internal cabling in servers, workstations, and NAS enclosures
• Replacing or extending existing Mini SAS HD to SATA connections

Key specifications

• Product name: InLine Mini SAS HD Cable SFF-8643 to 4x SATA + Sideband 1m
• Length: 1 m
• Connector 1: Mini SAS HD SFF-8643 (4i)
• Connector 2: 4 × SATA
• Colour: Black
• Brand: InLine
• MPN: 27630B
• EAN: 4043718211807

How to use

Power off the system and open the chassis. Plug the SFF-8643 connector into the corresponding Mini SAS HD port on the controller or backplane, ensuring correct orientation. Connect each SATA plug to the individual SATA power/data ports on the HDDs or SSDs. Route the cable to avoid obstructing airflow and close the chassis before powering the system back on. Verify drive detection in the controller or system BIOS/RAID utility.

Recommendations

Use this internal cable only inside computer enclosures. Keep cable length within the 1 m specification, avoid sharp bends and excessive stress on connectors, and ensure the system is powered off when installing or removing the cable to prevent damage.
