Cable SAS Intel AXXCBL650HDHRT

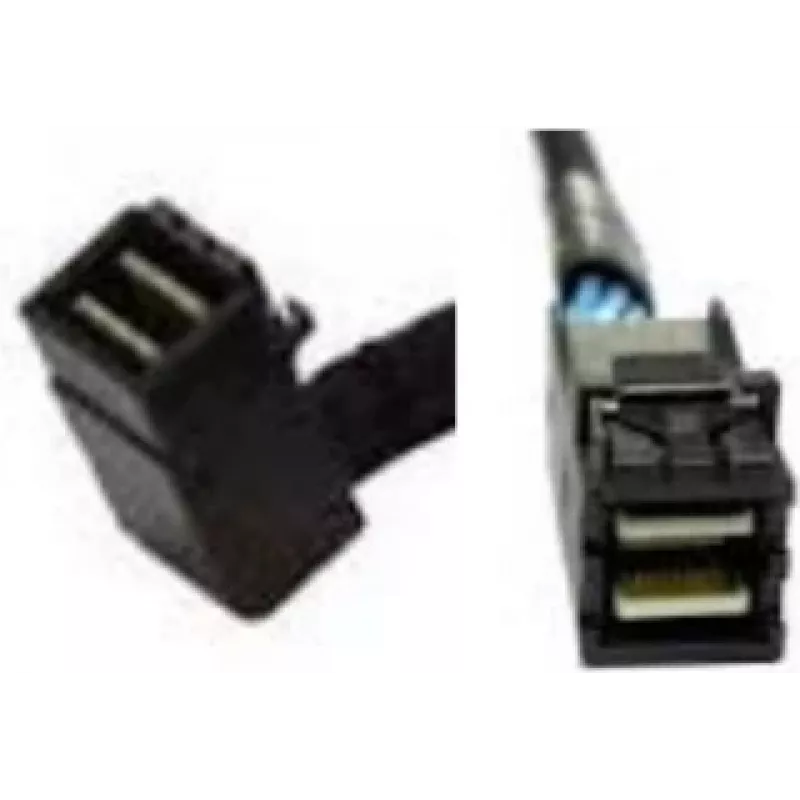

650 mm spare/accessory SAS cable kit with two 0.65 m HD Mini SAS SFF8643 cables. Each cable has an inline straight HD Mini SAS SFF8643 connector on one end and a right-angle HD Mini SAS SFF8643 connector on the other. The AXXCBL650HDHRT cable from Intel is intended for internal server use to connect mSAS‑HD connectors on a server board to an HSBP, supporting drives 0–3 and providing a compact, black, high-density SAS connection.

Advantages

The kit includes two matched cables designed for HD Mini SAS SFF8643 interfaces and offers a compact right-angle termination for space-restricted server layouts. Constructed for internal data-center use, the cable supports reliable, high-speed Serial Attached SCSI connections and maintains signal integrity for SAS device links.

Suitable for

• Connecting server board mSAS‑HD ports to an HSBP in rack servers
• Replacing or adding spare SAS cables for drives 0–3
• Installations requiring right-angle connectors to save space

Key specifications

• Cable length: 0.65 m (650 mm)
• Connector 1: HD Mini SAS SFF8643 (straight)
• Connector 2: HD Mini SAS SFF8643 (right-angle)
• Quantity: 2 cables per kit
• Colour: Black
• Brand: INTEL, MPN: AXXCBL650HDHRT958254

How to use

Power down the server according to vendor procedures before installation. Route the straight-to-right-angle HD Mini SAS SFF8643 cable from the server board mSAS‑HD connector to the HSBP, ensuring the right-angle end fits the available clearance. Secure cables to avoid strain on connectors and verify connections before powering the system back on. After boot, confirm drive visibility in the system BIOS or storage management utility.

Recommendations

Use these cables indoors in controlled data‑center environments; avoid excessive bending near the connectors and maintain proper cable management to preserve signal integrity. Follow Intel and server manufacturer guidelines for handling and installation.
