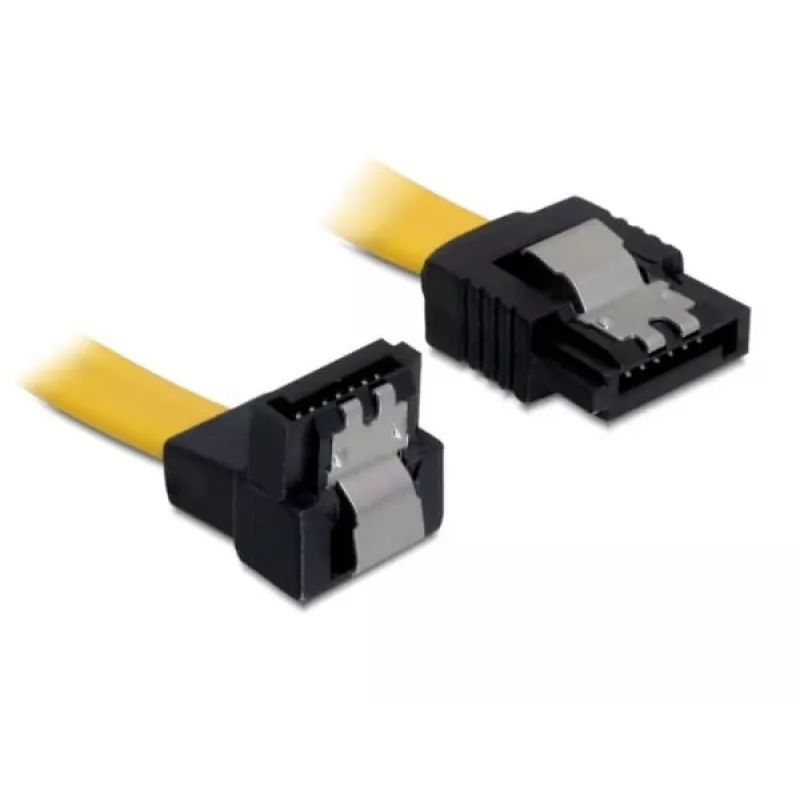

Cable SATA conector macho/conector macho DeLOCK 0,3 m amarillo 82806

This SATA cable by DeLOCK is designed for internal SATA connections and supports the SATA III standard with data transfer rates up to 6 Gb/s. The cable connects SATA devices such as hard disk drives (HDD), controller cards or flash storage. The connector orientation causes the cable to lead downwards when attached to a drive. The SATA 6 Gb/s interface is backward compatible with earlier SATA versions, operating at the respective lower speeds when used with older devices. Metal clips on the SATA connector provide additional snap-in retention.

Advantages

The DeLOCK cable supports up to 6 Gb/s transfers and is backwards compatible with earlier SATA standards. Its compact 0.3 m length offers convenient internal routing in PC cases, and the metal clips on the connectors ensure secure attachment. The yellow cable jacket helps with quick visual identification inside a system.

Suitable for

• Internal connection of HDDs and SSDs
• Connecting SATA controller cards
• Attaching internal flash storage or optical drives
• Short cable runs inside desktop PC cases

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 82806
• EAN: 4043619828067
• Interface: SATA III (6 Gb/s), backward compatible with SATA I/II
• Connector type: SATA male to SATA male
• Cable length: 0.3 m
• Colour: Yellow

How to use

Align the SATA connectors with the device and motherboard or controller card ports, then press the connectors onto the SATA sockets until the metal clips engage. When connecting to a hard drive, the cable will naturally hang downwards from the drive’s SATA port. If connecting to an older SATA device, transfer speed will be limited to that device’s maximum supported SATA generation.

Recommendations

For reliable operation, avoid sharp bends and excessive tensile force on the cable. Route the 0.3 m cable to minimize contact with moving parts and secure it with cable ties if necessary. Verify connector orientation before applying force to prevent damage to the SATA ports.
