Cable SATA DeLOCK 85346 0,5 m negro transparente

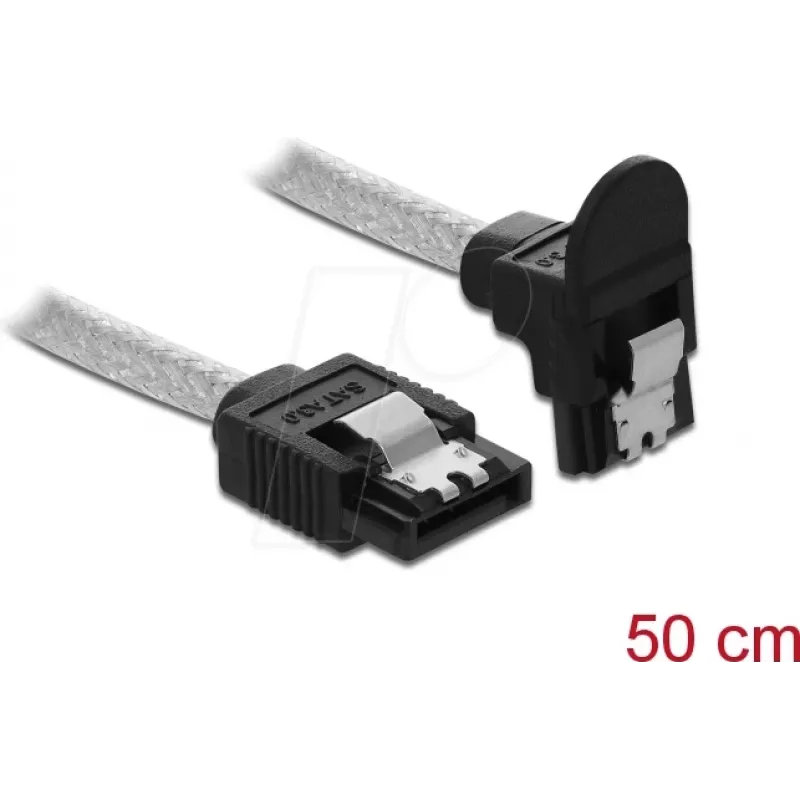

The DeLOCK 85346 SATA cable is a 0.5 m internal cable with two 7-pin SATA connectors, designed to connect SATA devices such as SSDs, HDDs, controller cards or flash modules inside a computer. It supports the SATA III standard with a maximum data transfer rate of up to 6 Gb/s and is backward compatible with earlier SATA versions while operating at the corresponding lower speeds when used with older devices. The cable has a black transparent design and is intended for use where the connector is routed downward when attached to a hard drive.

Advantages

The cable provides support for SATA III speeds up to 6 Gb/s and backward compatibility with earlier SATA versions. Molded metal clips on the connectors ensure secure, audible insertion and retention. The 0.5 m length offers a compact routing option inside most desktop cases, and the black transparent housing provides a neutral appearance that blends with many system builds.

Suitable for

• Connecting internal SSDs and HDDs to motherboard or controller card
• Installing or replacing storage devices in desktop PCs
• Use with SATA controller cards and internal flash storage modules

Key specifications

• Cable length: 0.5 m
• Connectors: SATA 7-pin to SATA 7-pin
• Data transfer rate: up to 6 Gb/s (SATA III)
• Backward compatibility: compatible with earlier SATA versions at their respective speeds
• Product colour: Black, Transparent

How to use

Align each SATA 7-pin connector with the corresponding port on the drive and the motherboard or controller card, then press until the metal clip clicks to secure the connection. Ensure the cable is routed without sharp bends and that the connector on the drive is oriented so the cable leads downward as intended. Power the system only after connections are confirmed and secured.

Recommendations

Use the cable for internal connections only. Avoid excessive bending or pulling of the cable and keep it clear of fans or moving components. For best performance, pair the cable with devices and controllers that support SATA III to achieve the full 6 Gb/s transfer rate.
