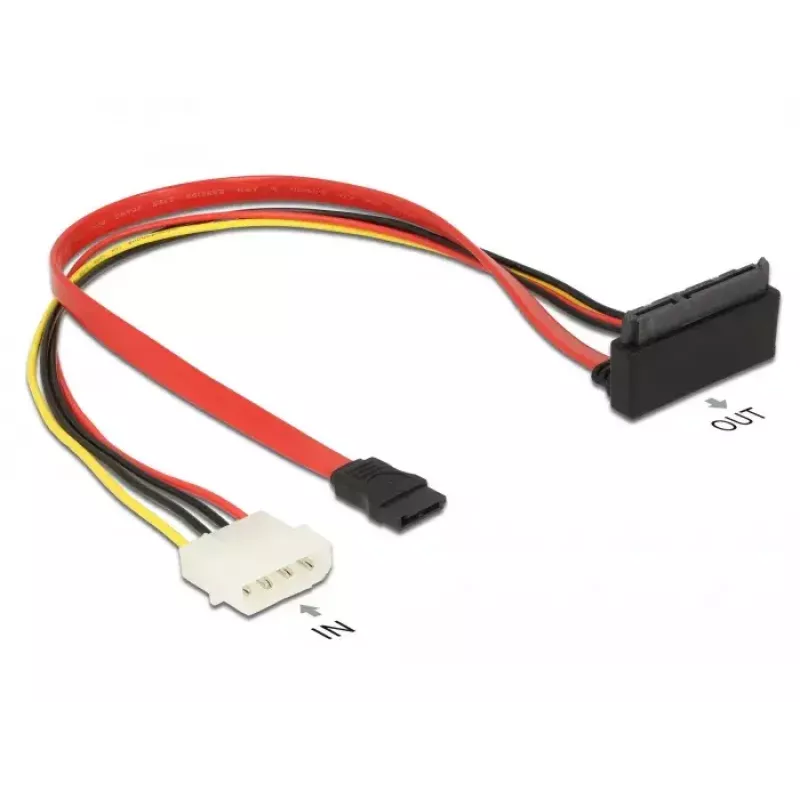

Cable SATA DeLOCK 85514 0,3 m 1x Molex 4-Pin 1x SATA 22-Pin 1x SATA 7-Pin

This DeLOCK SATA cable (model 85514) is 0.3 m long and provides one Molex 4‑pin power connector, one SATA 22‑pin connector and one SATA 7‑pin data connector. It allows connecting a device with a 22‑pin SATA interface using an available SATA 7 port and an available 4‑pin Molex power plug from the power supply. The cable's SATA receptacles have metal clips that ensure a secure connection.

Advantages

The compact 0.3 m length is suitable for installations with limited space inside the PC case. Integrated metal clips on the SATA plugs help maintain a reliable, locked connection. Combined Molex power and SATA connectors eliminate the need for additional adapters when connecting legacy or specialized SATA devices.

Suitable for

• Connecting a 22‑pin SATA device to a motherboard or controller with a SATA 7 pin port and a Molex power supply
• Internal PC builds with limited cable routing space
• Upgrading or adding internal storage or optical drives that require Molex power

Key specifications

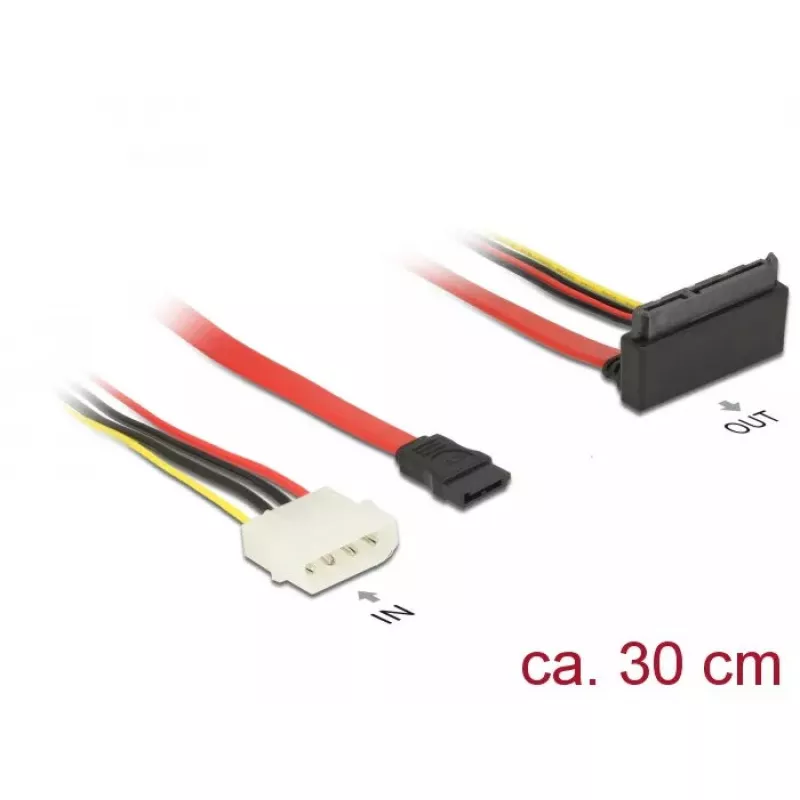

• Cable length: 0.3 m
• Connector 1: 1 x Molex 4 pin (power)
• Connector 2: 1 x SATA 22 pin (device), 1 x SATA 7 pin (data)
• Product colour: Multicolour
• Brand / MPN / EAN: DELOCK / 85514 / 4043619855148

How to use

Connect the SATA 7‑pin plug to the motherboard or SATA controller port designated for data. Insert the SATA 22‑pin connector into the target device's SATA interface, ensuring the metal clip engages to lock the plug. Finally, connect the Molex 4‑pin plug to an available Molex power socket from the power supply. Verify all connections are secure before powering the system.

Recommendations

Use the cable inside a powered‑off system and handle connectors by their housings. Avoid excessive bending or stretching of the cable and ensure the Molex connector is fully inserted to provide stable power to the connected device.
