Cable serie DeLOCK 62904 negro 1,8 m DB-9

The DeLOCK 62904 cable provides a USB Type-C to serial connection for RS-232 devices. With a 1.8 m black cable, FTDI FT232RL chipset and support for up to 1 Mb/s, it enables reliable serial communication between modern computers with USB‑C or Thunderbolt 3 ports and equipment that uses DB9 or DB25 serial interfaces. The package includes the USB‑C to serial cable, a DB9-to-DB25 adapter, driver CD and user manual.

Advantages

This cable uses the FTDI FT232RL chipset for stable driver support and compatibility with common operating systems. The 1.8 m length offers flexible placement of connected devices. Included DB9-to-DB25 adapter expands compatibility with equipment using either connector type, while the DB9 connectors with screws and nuts ensure secure physical connection.

Suitable for

• Connecting legacy RS-232 devices (DB9) to computers with USB Type-C or Thunderbolt 3 ports
• Interfacing serial instruments, industrial controllers, POS terminals and modems
• Software development and debugging that requires serial console access

Key specifications

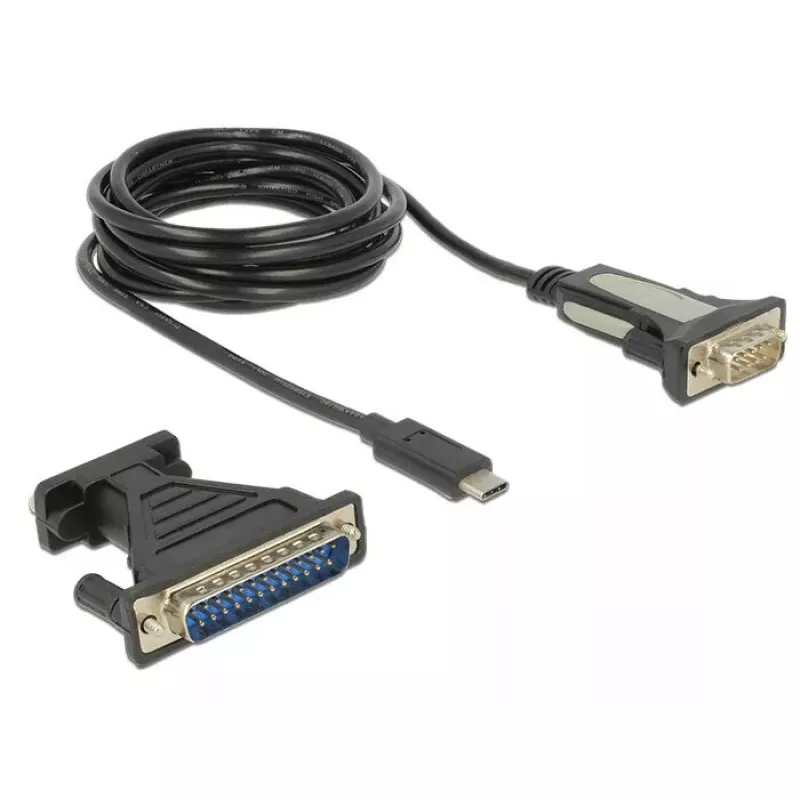

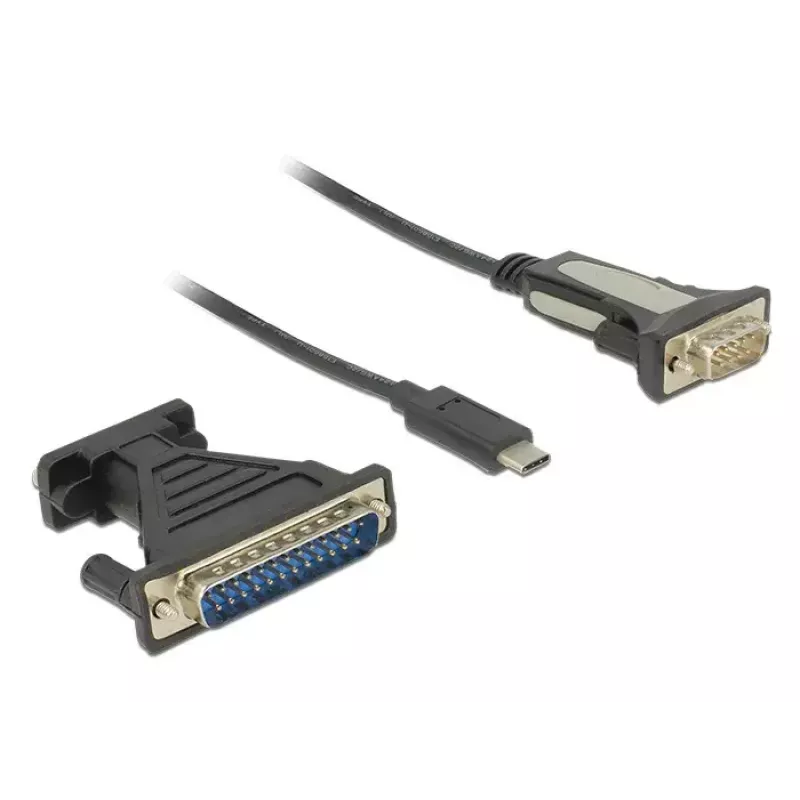

• Connectors: 1× USB Type‑C male (cable) to 1× RS‑232 DB9 male (cable) with screws; adapter: 1× RS‑232 DB9 female with nuts to 1× RS‑232 DB25 male with screws
• Chipset: FTDI FT232RL
• Data transfer rate: up to 1 Mb/s
• FIFO: 512 byte
• Cable length: approx. 1.8 m
• Package contents: USB‑C to serial adapter cable, DB9 to DB25 adapter, driver CD, user manual

How to use

Connect the USB Type‑C plug to a free USB‑C or Thunderbolt 3 port on your PC or laptop. Attach the DB9 connector to the serial device and secure it with the screws or nuts as appropriate. If needed, attach the included DB9-to-DB25 adapter to connect DB25 equipment. Install drivers from the included CD or obtain the latest FTDI drivers from the manufacturer's website, then configure the serial port parameters (baud rate, parity, data bits, stop bits) in your application.

Recommendations

Use this cable on systems running Windows 7/8.1/10 or Linux kernels 2.6.31 and later (including 4.x.x). Verify driver installation after connecting and avoid excessive bending or tension on the cable to maintain connector reliability.
