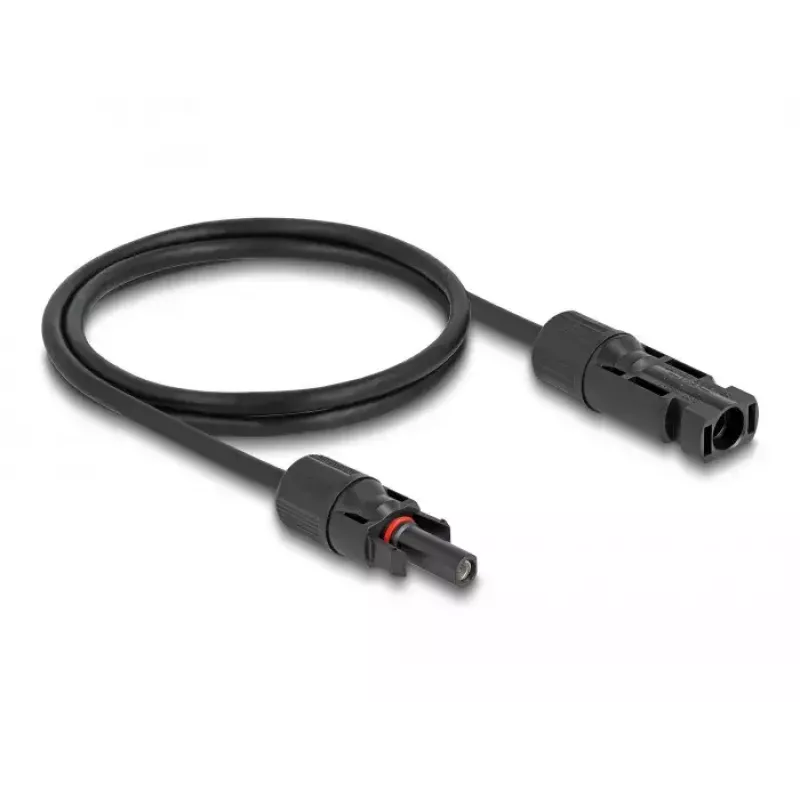

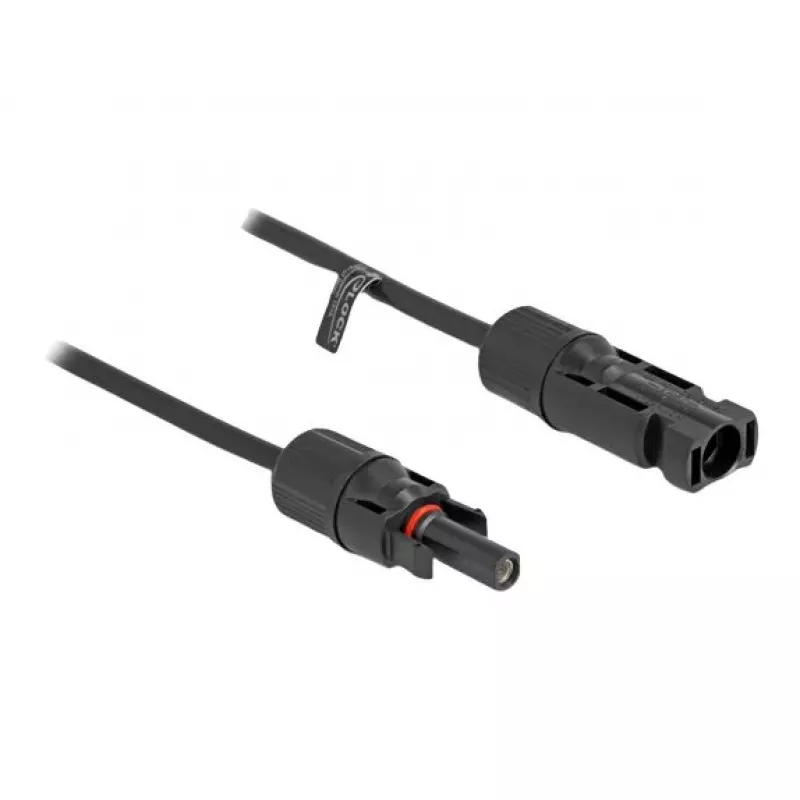

Cable solar DeLOCK DL4 4 mm² conector macho a conector hembra 1 m negro

The DeLOCK DL4 Solar Cable is a 1 m black photovoltaic cable with MC4 connectors, featuring a male plug on one end and a female socket on the other. Designed for transmitting power from solar panels, the cable has a conductor cross-section of 4 mm², an outer diameter of 5 mm and is specified for an input voltage up to 600 V. The cable is intended for use in solar panel installations and related equipment connections.

Advantages

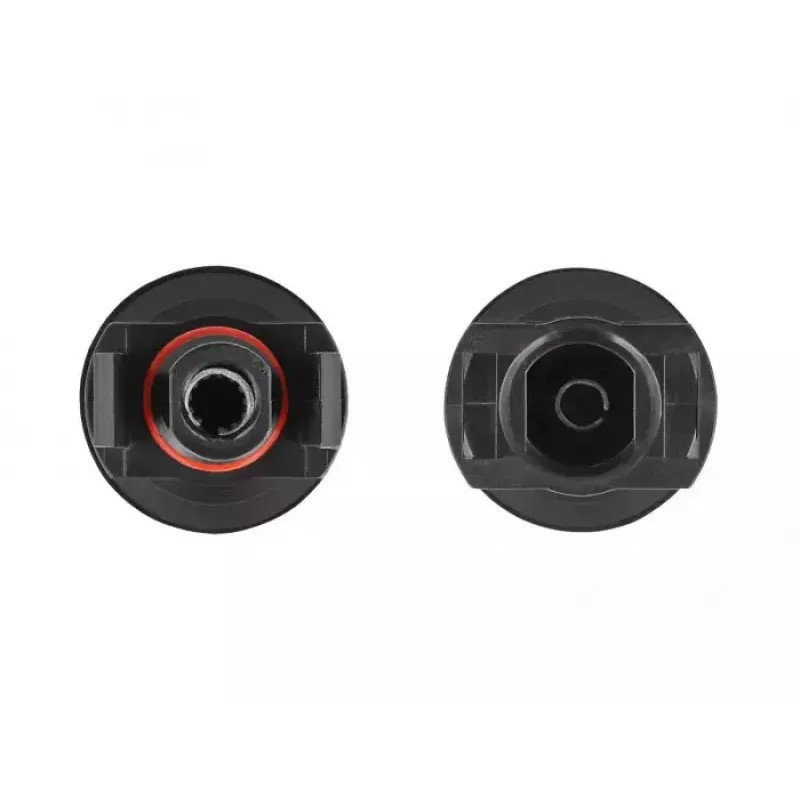

The MC4 plugs and sockets provide a snap-in locking function that prevents accidental disconnection while allowing release with the appropriate tool. The cable is rated IP67 for dust and waterproof protection, reducing the risk of moisture or dirt ingress. With a 4 mm² conductor and 1 m length, it offers a compact, industry-standard connection solution for photovoltaic systems.

Suitable for

• Connecting individual solar panels to string leads
• Extending or linking PV cables in small installations
• Temporary or permanent power connections in solar setups

Key specifications

• Brand: DELOCK
• Model / MPN: 88228
• EAN: 4043619882281
• Cable length: 1 m
• Conductor cross-section: 4 mm²
• Outer diameter: 5 mm

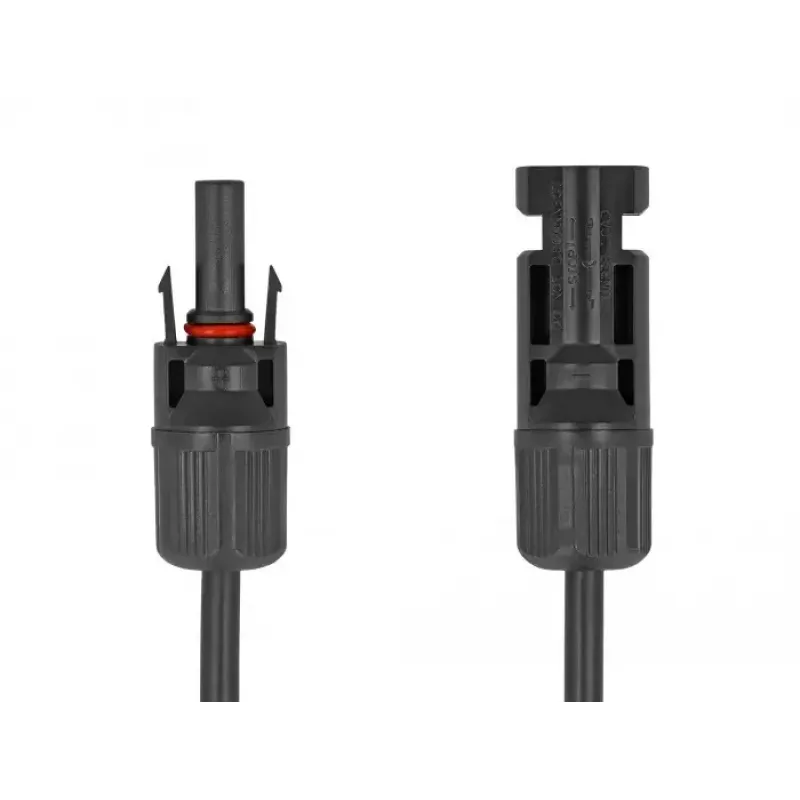

• Connector type: MC4 male to MC4 female
• Rated input voltage: 600 V
• Ingress protection: IP67 (dust and waterproof)

How to use

Connect the MC4 male plug to the corresponding female connector on the solar panel or cable, and the MC4 female socket to the matching male counterpart. Ensure connectors snap into place to secure the connection; use the appropriate release tool to disconnect. Route the cable to avoid sharp bends and secure it according to local installation guidelines and safety standards.

Recommendations

Use the cable within the specified voltage rating and protect connections from prolonged mechanical stress. Inspect connectors periodically for dirt or damage and clean or replace components if necessary. For permanent outdoor installations, follow national electrical codes and the solar panel manufacturer's instructions.
