Cable USB Axagon BUCM-CM20AB 2m USB C Negro

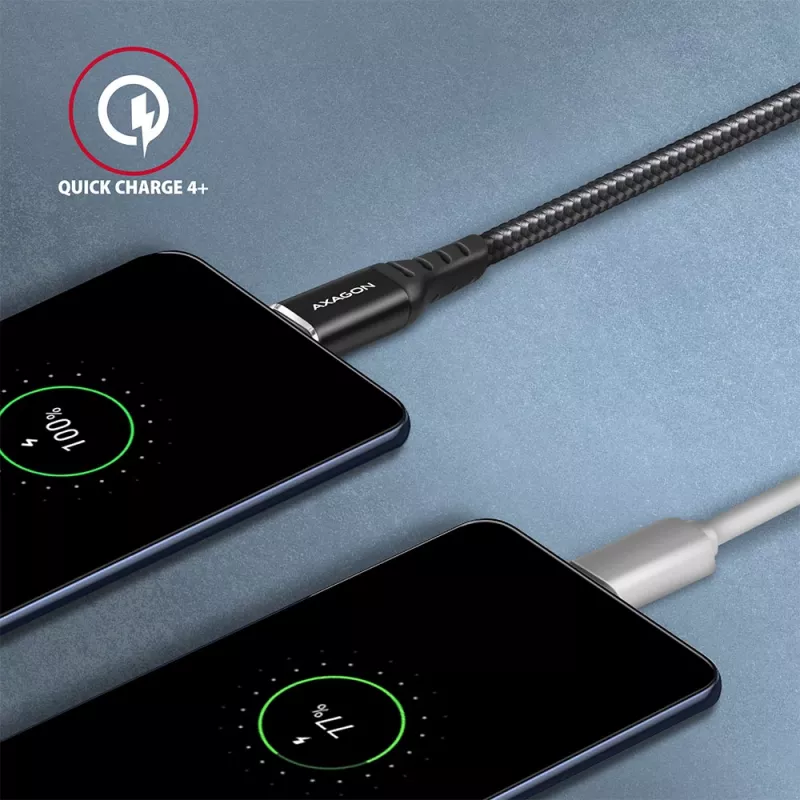

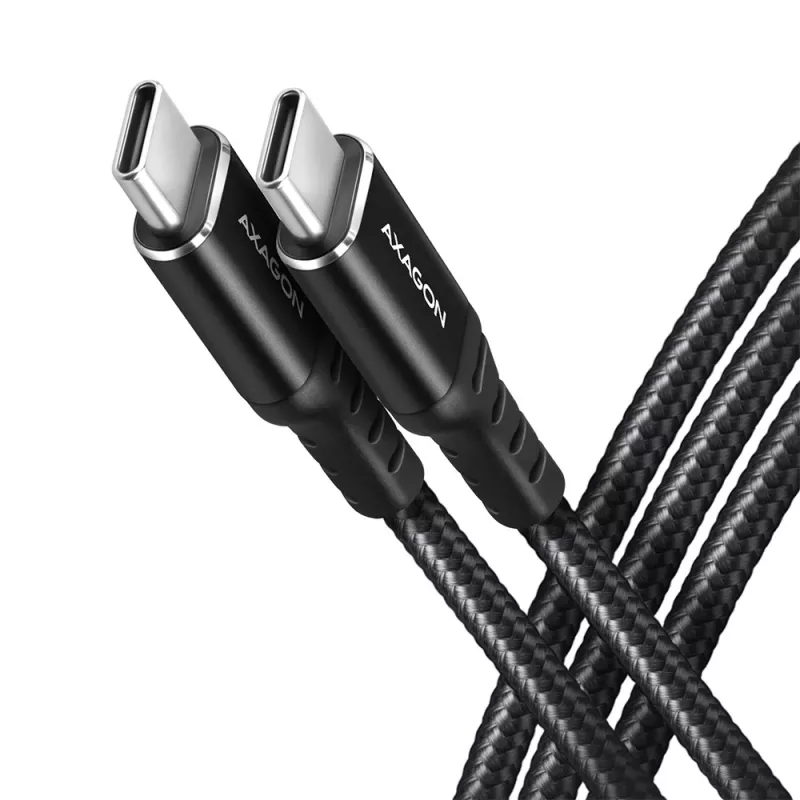

The Axagon BUCM-CM20AB is a 2 m USB 2.0 cable with USB-C male connectors on both ends, designed for simultaneous data synchronization and charging of phones, tablets, notebooks and other mobile devices. It supports data transfer rates up to 480 Mb/s and charging currents up to 3 A, with compatibility for Power Delivery 60W, Qualcomm Quick Charge, Samsung AFC, Huawei FCP, SMART and other charging protocols. The cable features metal terminals, nickel-plated connector housings, gold-plated contacts and tin-plated oxygen-free copper conductors. Flexible TPE insulation and a nylon braid provide enhanced durability and flexibility, and a convenient strip is included for neat storage.

Advantages

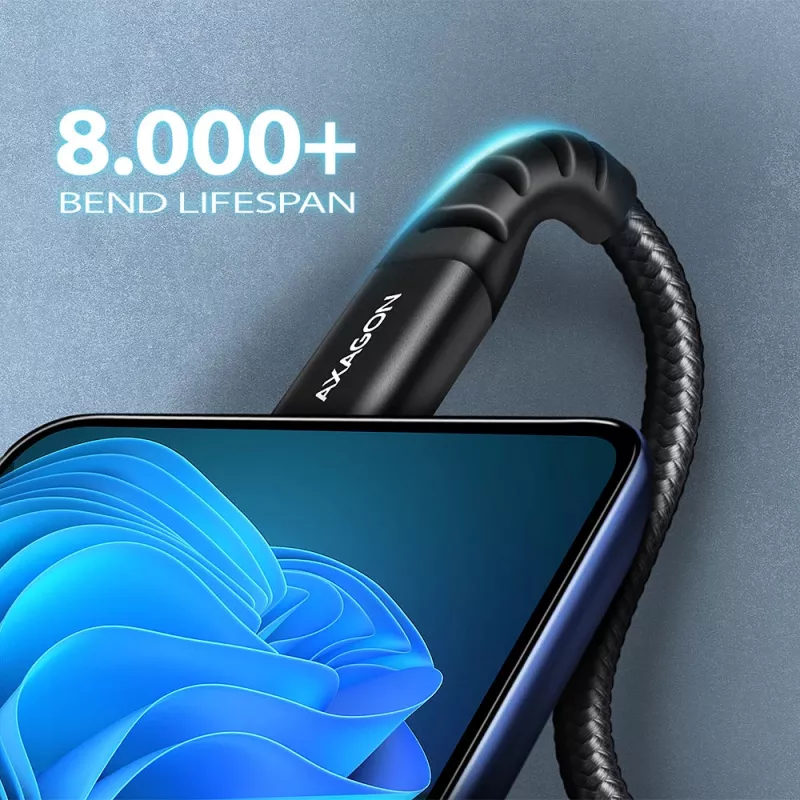

The cable combines 22AWG power wires for fast charging and 30AWG data wires with double shielding to ensure stable data transmission and minimal interference. Nickel-plated connectors and gold-plated contacts reduce oxidation and improve contact reliability. Reinforcements such as aluminum terminal covers, a nylon braid and a strain-relief gland increase mechanical resistance and extend the service life to more than 8,000 bends. The construction materials (tin-plated oxygen-free copper conductors, galvanized foil and copper braiding) provide clear signal transmission and reduced signal loss.

Suitable for

• Charging and data sync of smartphones and tablets
• Charging notebooks that support Power Delivery up to 60W (20V/3A)
• Connecting powerbanks and other mobile accessories with USB-C
• Data transfer between USB-C devices at USB 2.0 speeds

Key specifications

• Connectors: USB-C (M) ↔ USB-C (M)
• USB version: USB 2.0 (backward compatible with USB 1.1)

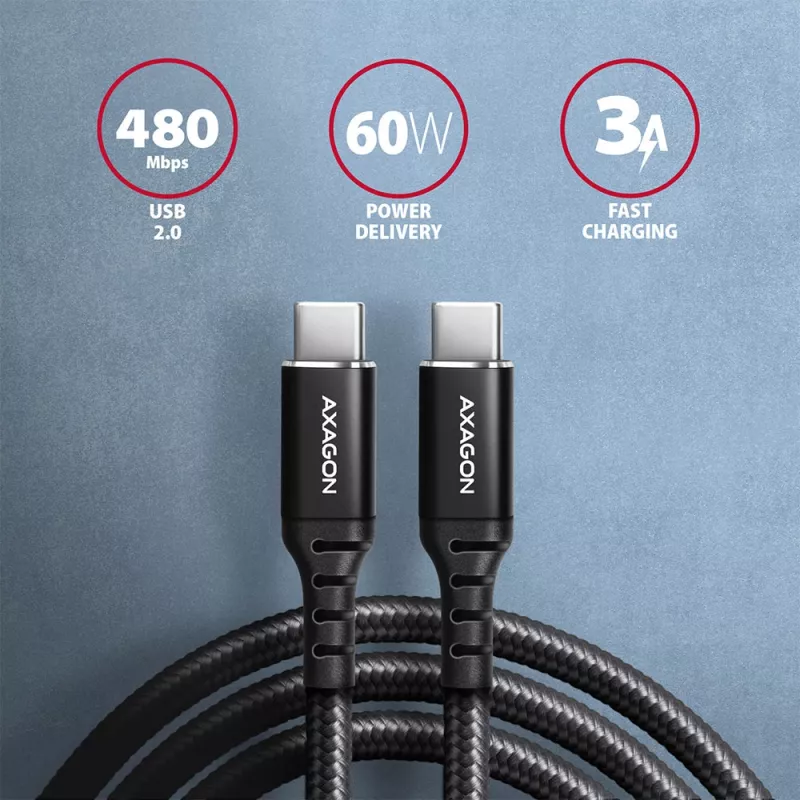

• Data rate: up to 480 Mb/s (High Speed)
• Charging current: up to 3 A; Power Delivery support up to 60W (20V/3A)
• Power wires: 22AWG; Data wires: 30AWG
• Conductors: tin-plated oxygen-free copper
• Shielding: galvanized foil + oxygen-free copper braiding (double shielding)

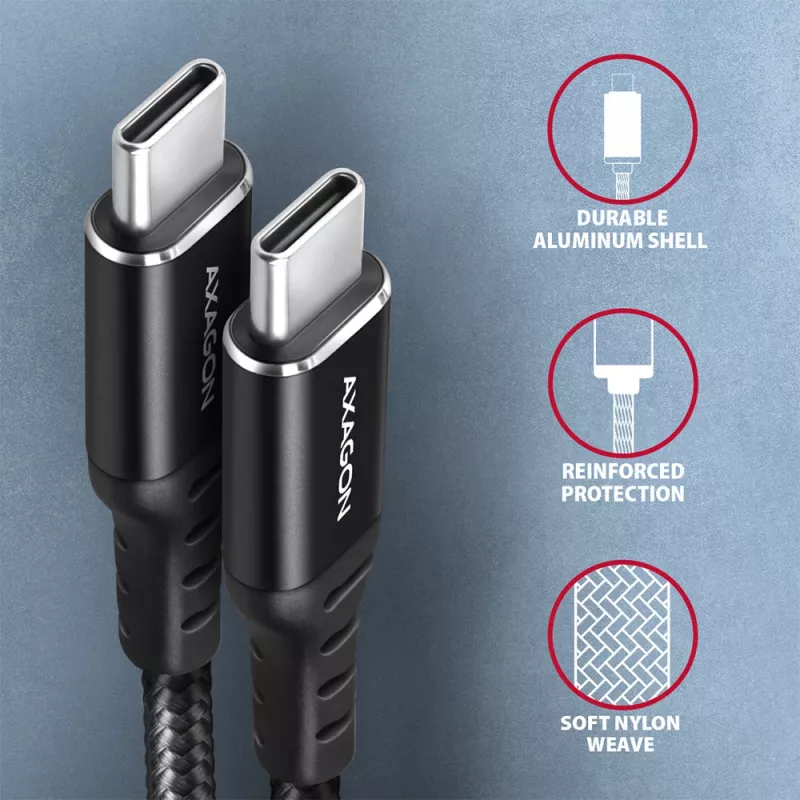

• Connector finish: nickel-plated housings, gold-plated contacts
• Cable length: 2 m; outer diameter: 4 mm

How to use

Connect one USB-C male end to the source device (charger, notebook or powerbank) and the other USB-C male end to the target device (smartphone, tablet or other USB-C accessory). For notebook charging, ensure the notebook supports Power Delivery and the required voltage/current. Data transfer and charging can occur simultaneously when both devices support these functions. After use, secure the cable with the included tightening strip for storage.

Recommendations

Use the cable with compatible chargers and devices that support USB-C and the listed charging protocols. Avoid excessive bending near the connectors, keep the cable dry, and store it coiled without sharp folds to preserve the nylon braid and strain relief. For maximum charging speed, use a charger that supports Power Delivery or the corresponding fast-charge protocol of your device.
