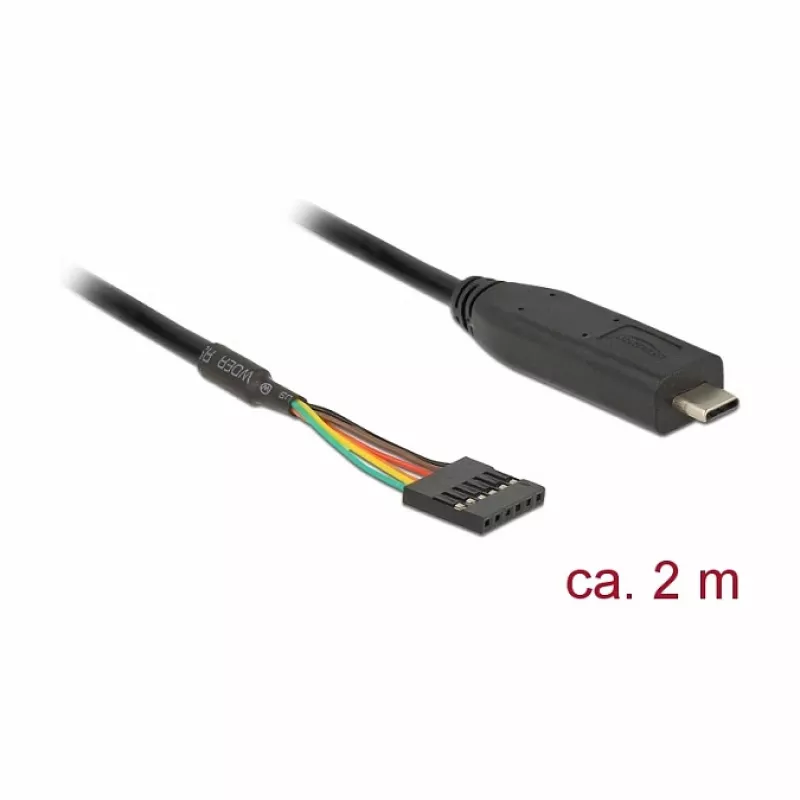

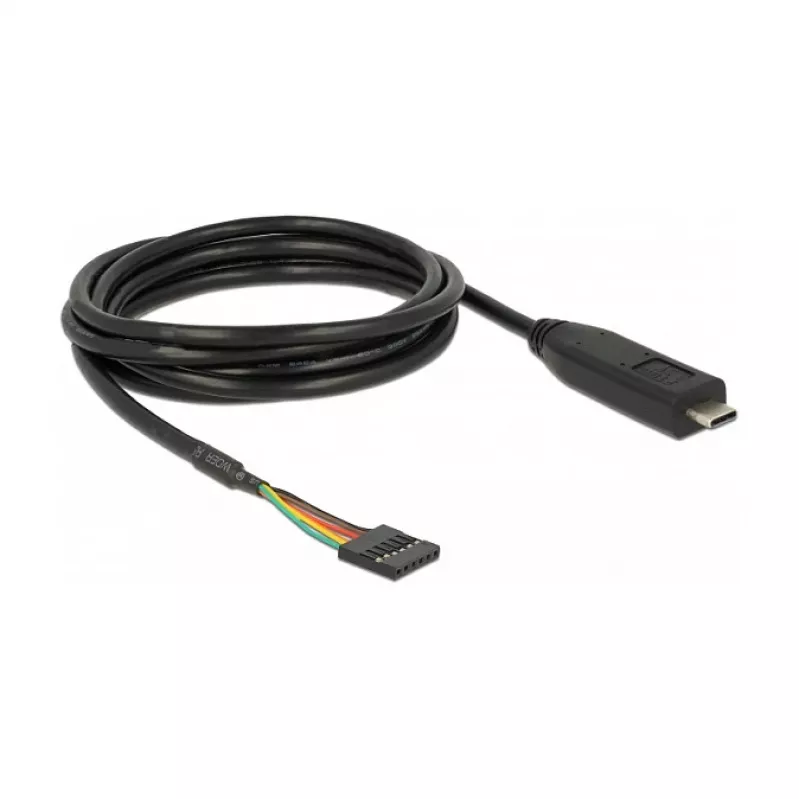

Cable USB DeLOCK 63913 2m USB-C negro

This USB Type-C™ 2.0 to LVTTL converter by Delock can be connected directly to GPIO (General purpose input / output) connectors or UART (Universal Asynchronous Receiver / Transmitter) interfaces. The converter is suitable for applications on single-board computers, controllers, FPGAs, MCUs and in-circuit electronics.

Advantages

The converter provides a direct interface between USB Type-C 2.0 and LVTTL logic levels, enabling communication with GPIO and UART devices without additional level-shifting modules. Its compatibility with common embedded platforms and controllers allows straightforward integration for development and debugging tasks.

Suitable for

• Single-board computers (e.g., development boards)
• Microcontroller and FPGA development and debugging
• Connecting UART or GPIO peripherals to a USB-C host
• In-circuit electronics testing and serial communication

Key specifications

• Interface: USB Type-C™ 2.0 to LVTTL
• Compatible with GPIO and UART (TX/RX) interfaces
• Suitable platforms: SBCs, controllers, FPGAs, MCUs
• Brand: DELOCK
• MPN: 63913
• EAN: 4043619639137
• Product colour: Black

How to use

Connect the USB Type-C connector to a host device that supports USB 2.0. Attach the LVTTL signal lines to the target device's GPIO or UART pins according to the target system's pinout (TX, RX, GND, and any required control lines). Ensure correct orientation and secure connections before powering the devices. Use appropriate drivers on the host if required to establish serial communication.

Recommendations

Verify the target device voltage levels and pin assignments before connection to avoid damage. Use this converter for development and debugging in low-voltage TTL environments and avoid exposure to voltages outside the LVTTL specification.
