Cable USB Vision USB 2.0 2m

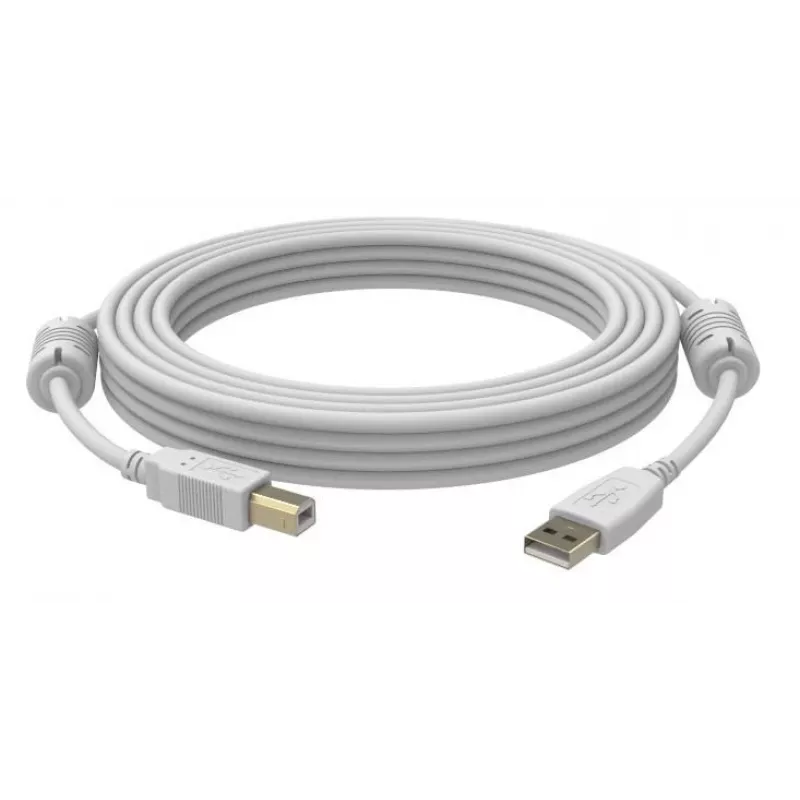

The Vision USB 2.0 2m cable is a 2‑metre USB‑A (male) to USB‑B (male) data cable in white, designed for connecting printers, scanners and other USB devices. It supports USB 2.0 speeds up to 480 Mbit/s and features gold‑plated connectors and ferrite cores on both ends to reduce RF interference.

Advantages

This high‑speed USB 2.0 cable offers reliable data transfer up to 480 Mbit/s, durable gold‑plated contacts for improved conductivity and corrosion resistance, and ferrite cores to suppress electromagnetic interference. The cable construction includes a braided shield with more than 65% coverage, HDPE insulation and a PVC sheath with a 4.5 mm outer diameter for mechanical protection.

Suitable for

• Connecting printers to computers
• Connecting scanners and multifunction devices
• Data transfer between USB‑B equipped peripherals and PCs

Key specifications

• Connector 1: USB‑A (male)
• Connector 2: USB‑B (male)
• USB version: USB 2.0
• Maximum bandwidth: 480 Mbit/s
• Cable length: 2 m
• Colour: White
• Conductor thickness: 28+24 AWG
• Shielding: >65% braided shield
• Insulation: HDPE
• Sheath: PVC, outer diameter 4.5 mm
• Ferrite cores: both ends
• Contacts: gold‑plated
• Compliance: CE, FCC

How to use

Plug the USB‑A (male) end into a standard USB port on your computer and the USB‑B (male) end into the compatible port on your printer, scanner or other peripheral. Ensure connectors are aligned before insertion and avoid bending the cable sharply near the ends. For best performance, use the cable for USB 2.0 devices and within its 2 m length specification.

Recommendations

To minimise interference and maintain signal quality, route the cable away from large power supplies and wireless transmitters; avoid running it parallel to power cables when possible.
