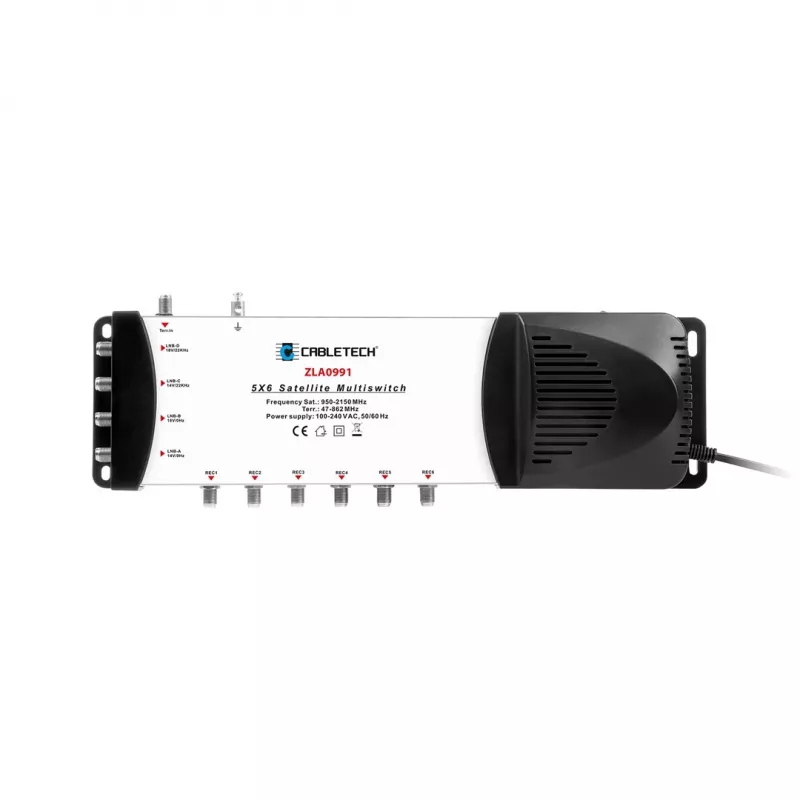

Cabletech Multiswitch 5x6

The Cabletech Multiswitch 5x6 is a high-performance multiswitch designed for satellite and terrestrial signal distribution. It enables the connection of up to 5 satellite inputs and 6 user outputs, making it ideal for multi-room installations in residential or commercial buildings. This device ensures reliable signal splitting and minimal loss, supporting both horizontal and vertical polarisation.

Advantages

Efficient signal distribution for up to 6 users from 5 satellite feeds. Compact design for easy installation in distribution cabinets. Supports both satellite and terrestrial signals, reducing the need for separate infrastructure.

Suitable for

• Multi-room satellite TV installations
• Apartment buildings and hotels
• Small office or commercial signal distribution

Key specifications

• Inputs: 5 satellite (4 from LNBs, 1 terrestrial)
• Outputs: 6 user ports
• Frequency range: 5-2400 MHz
• Insertion loss: typically 4-6 dB
• Isolation: >20 dB between outputs
• Power pass: 12-18V DC on satellite inputs

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper grounding. This multiswitch is compatible with standard satellite LNBs and terrestrial antennas.
