Multiswitch de señal MRP-508 5 entradas 8 salidas para sistemas de satélite, Signal MRP-508

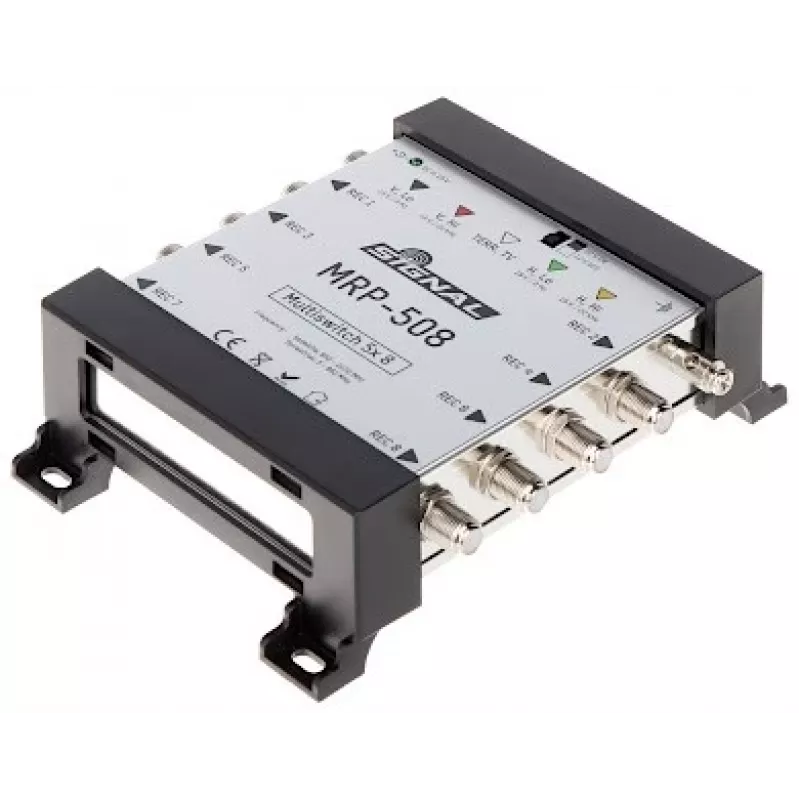

The Signal MRP-508 5-in 8-out multiswitch is designed to distribute satellite and terrestrial signals from multiple inputs to several receivers. With five independent inputs and eight outputs, this multiswitch allows connection of multiple TVs or set-top boxes while preserving signal quality. It supports combined distribution of satellite polarisation/band and terrestrial TV signals in a single device, making it suitable for compact home installations and small shared systems.

Advantages

The compact design of the Signal MRP-508 provides reliable signal routing for up to eight receivers without complex wiring changes. Individual outputs deliver independent signals to connected devices, reducing interference and cross-talk. Built with typical multiswitch shielding and connectors, it simplifies installation and centralises satellite and terrestrial signal management in one device.

Suitable for

• Small apartments and houses that need satellite signal distribution to multiple TVs
• Shared reception setups in holiday homes or multi-room installations
• Simple MATV or home distribution systems combining satellite and terrestrial signals

Key specifications

• Inputs: 5 (satellite and terrestrial combined)
• Outputs: 8 independent outputs for multiple receivers
• Function: Multiswitch distribution of satellite polarisation/band and terrestrial signals
• Installation: Wall- or rack-mount compatible compact housing
• Connectors: Standard F-type connectors for satellite and TV cabling
• Signal handling: Designed to maintain signal integrity across outputs

How to use

Mount the multiswitch in a central location near the incoming satellite dish and terrestrial antenna. Connect the satellite LNB and terrestrial antenna cables to the appropriate input connectors, then run coaxial cables from the eight outputs to each receiver or TV. Ensure all connections are tight and use quality coaxial cables and connectors to minimise signal loss. Power requirements should follow the setup of the connected LNB or external power inserter if required by the system.

Recommendations

For stable reception, use low-loss coaxial cables, keep cable runs as short as practical, and avoid routing cables near strong electrical sources. When extending installations, plan cable routes and splitters to preserve signal levels; if signal degradation occurs, consider using an amplifier or a professional signal measurement.
