Caja de acometida de fibra óptica METZ OpDAT ADT VIK 2xLC-D OM4 blanco puro RAL 9010 1501107H02HC

With an insertion loss of under 0.2 dB, this METZ OpDAT ADT VIK wall outlet delivers exceptional signal integrity for high-speed fiber optic networks. The pure white RAL 9010 housing blends seamlessly into any interior, while the violet LC-Duplex adapters provide OM4 multimode connectivity for distances up to 550 meters at 10 Gbps.

Overview

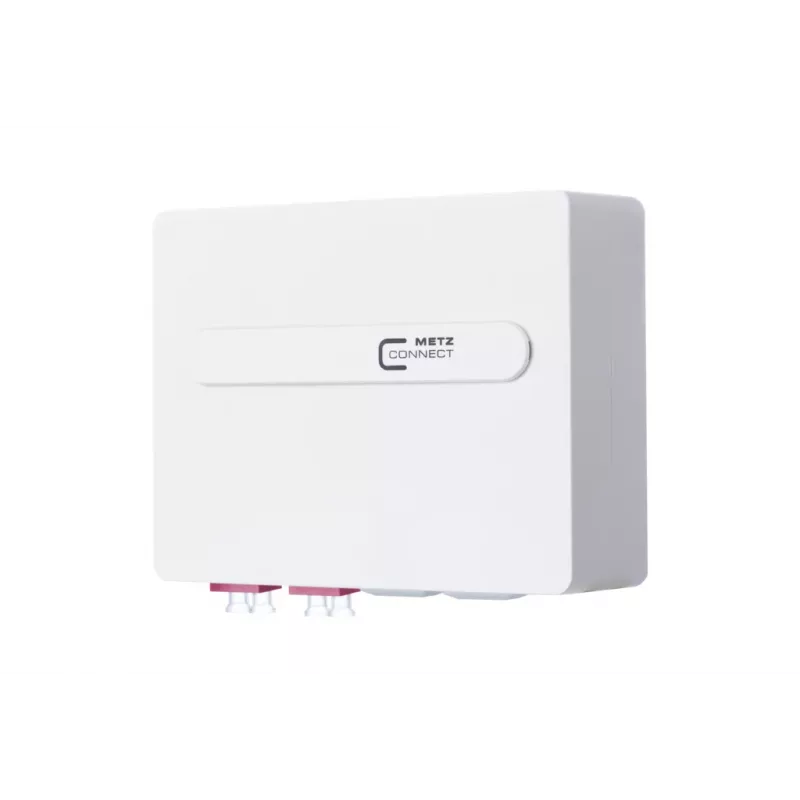

The METZ 1501107H02HC is a flush-mount fiber optic wall outlet designed for Fiber to the Desk (FTTD) applications. It features two LC-Duplex ports, supporting four fibers in total, and comes pre-installed with four 2-meter LC OM4 pigtails. The integrated splice tray accommodates up to four splices, and the rear/side cable entry with strain relief ensures a tidy installation.

What stands out

• OM4 multimode fiber supports 40/100 Gbps Ethernet up to 150 meters.
• Violet adapters clearly identify OM4 per industry standards.
• Integrated dust shutters protect connectors from contamination.
• Thermoplastic housing is durable and paintable to match decor.
• Compatible with standard flush-mount boxes for easy retrofitting.

Technical details

• Connector type: LC-Duplex (2 ports)
• Fiber type: Multimode OM4
• Number of fibers: 4
• Pigtail length: 2 m
• Insertion loss: < 0.2 dB
• Return loss: > 20 dB
• Mounting: Flush-mount
• Housing material: Thermoplastic
• Color: Pure white RAL 9010
• Adapter color: Violet
• Splice tray capacity: 4 splices
• Cable entry: Rear and side
• Strain relief: Yes
• Dust protection: Integrated shutters

Our verdict

A professional-grade fiber outlet that combines high performance with aesthetic flexibility. The OM4 rating future-proofs your network, and the included pigtails simplify installation. Ideal for offices, data centers, and smart buildings.
