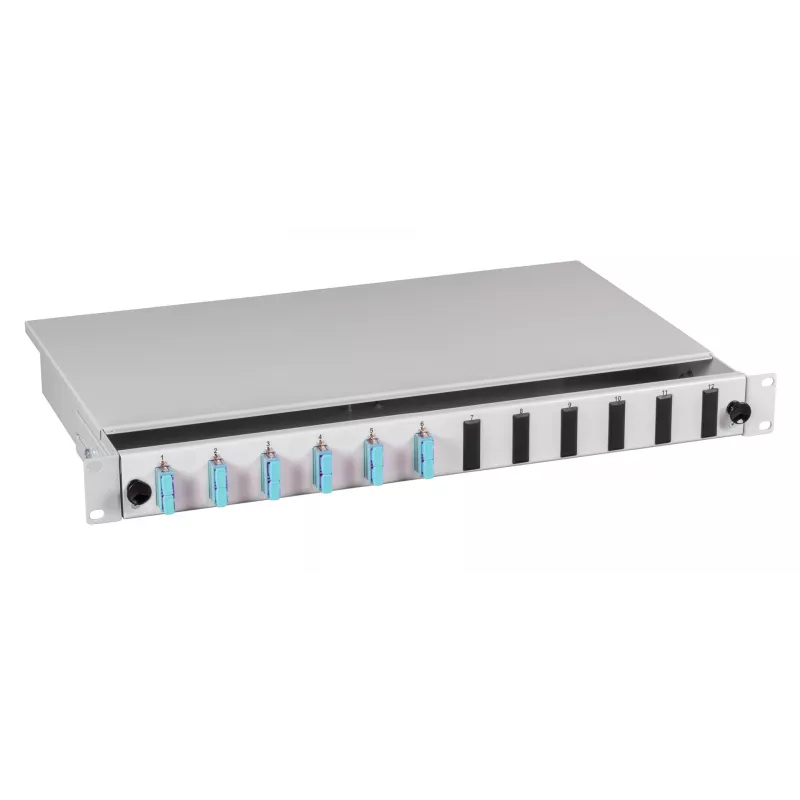

Caja de empalme EFB Electronics SC 50/125 µm OM4 extraíble 12 pigtails / 6 acopladores

The EFB Electronics Splice Box BA71203.12OM4 is a high-quality fiber optic splice box designed for professional network installations. It features 12 pre-terminated SC pigtails and 6 SC duplex couplings, providing reliable connectivity for multimode OM4 fibers. The extractable (sliding) design allows easy access for maintenance and splicing, making it ideal for data centers, LAN, and telecommunication networks.

Advantages

This splice box offers exceptional flexibility and ease of use. The sliding tray simplifies fiber management and reduces installation time. The robust steel housing in light grey (RAL 7035) ensures durability and protection for sensitive fiber connections. With OM4 performance, it supports high-bandwidth applications over longer distances.

Suitable for

• Data center cabling infrastructure
• Local area networks (LAN)
• Telecommunication networks
• Fiber-to-the-x (FTTx) deployments

Key specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Fiber Type: Multimode OM4
• Core/Cladding Diameter: 50/125 µm
• Connector Type (Pigtails): SC
• Connector Type (Adapters): SC Duplex
• Number of Fibers: 12
• Number of Pigtails: 12
• Number of Adapters: 6
• Design: Sliding / Extractable
• Mounting: 19-inch Rack Mount, 1U
• Housing Material: Steel
• Housing Color: Light Grey (RAL 7035)
• Cable Entry: Rear

Recommendations

For optimal performance, use with OM4 patch cables and ensure proper cable management. This splice box is a reliable solution for structured cabling and network expansion projects.
