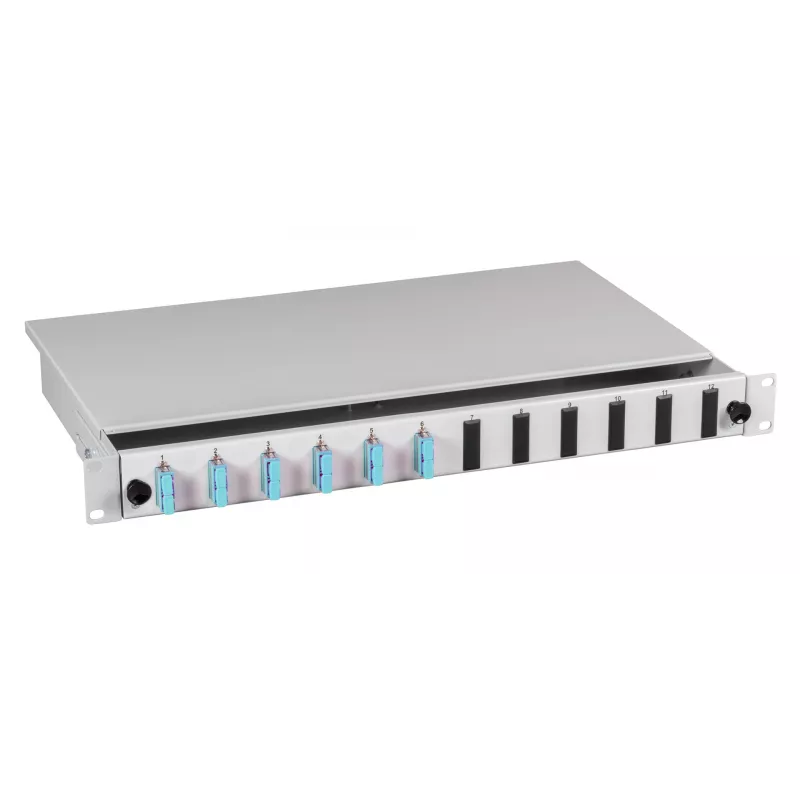

Caja de empalme EFB-Elektronik SC OS2 9/125 µm extraíble 12 pigtails / 6 acopladores

The EFB-Elektronik Splice Box BA71223.12 is a high-quality fiber optic splice box designed for professional network infrastructure. It features 12 pre-terminated SC pigtails and 6 SC duplex adapters, supporting single-mode OS2 fibers with 9/125µm core/cladding. The extendable sliding tray allows easy access for splicing and maintenance, making it ideal for data centers, telecommunications, and LAN applications.

Advantages

This splice box offers reliable performance and easy installation. The 1U 19-inch rack-mount design saves space, while the pre-terminated pigtails reduce installation time. The duplex adapters ensure efficient fiber management for up to 12 fibers.

Suitable for

• Data center fiber distribution
• Telecommunications networks
• LAN infrastructure
• FTTH and terminal box applications

Key specifications

• Product Type: Rack Splice Box
• Fiber Type: Single-mode OS2
• Fiber Core/Cladding: 9/125µm
• Connector Type: SC
• Number of Pigtails: 12
• Number of Adapters: 6 (Duplex)
• Design: Extendable sliding tray
• Mounting: 19-inch 1U
• Max Splice Capacity: 12 fibers
• Housing Material: Steel

Recommendations

For optimal performance, use with OS2 single-mode patch cables and ensure proper fiber cleaning before splicing. This splice box is compatible with standard 19-inch racks.
