Caja de empotrar para tabique hueco Kaiser Elektro 9063-02 68 x 49 mm Naranja

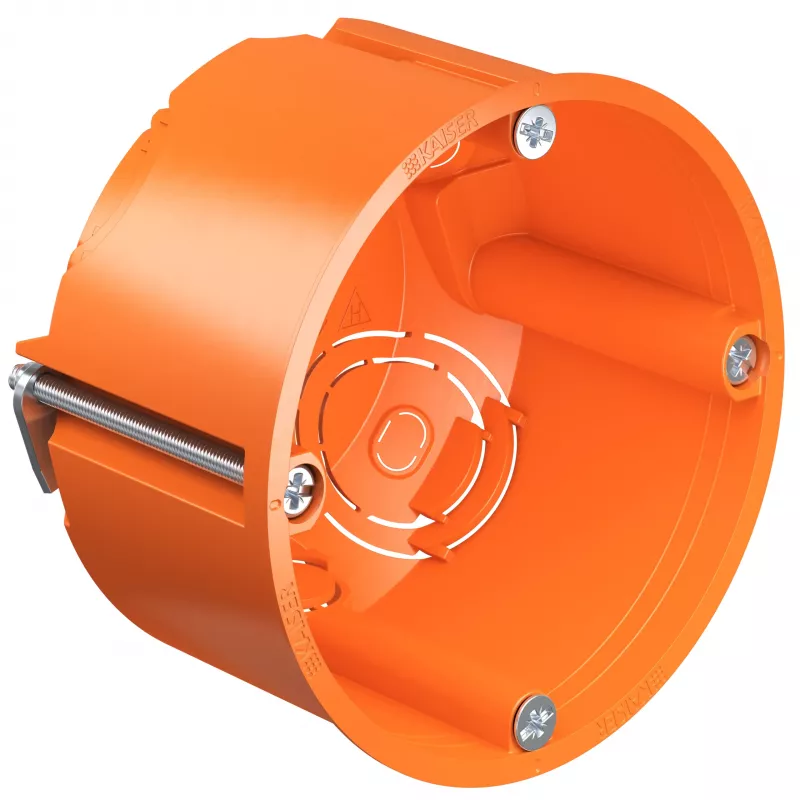

The Kaiser Elektro 9063-02 is a high-quality cavity wall device box designed for flush-mounted installations in drywall and cavity walls. Manufactured from halogen-free, flame-retardant polypropylene, this box ensures safety and durability in residential and commercial environments. With a milling diameter of 68 mm and a depth of 49 mm, it accommodates standard device mounting. The box features 8 cable entries with flexible sealing membranes for cable diameters from 3 to 20 mm, suitable for plate thicknesses of 7 to 35 mm. It includes screw domes for device mounting and connection supports for secure wiring. Rated IP30, it operates in temperatures from -5°C to +60°C.

Advantages

Halogen-free and flame-retardant material ensures high safety standards. Flexible sealing membranes allow easy cable entry and maintain protection. Suitable for a wide range of plate thicknesses, offering versatility in installation.

Suitable for

• Flush-mounted installations in cavity walls
• Mounting electrical devices such as switches and sockets
• Use in drywall constructions

Key specifications

• Product Type: Cavity Wall Device Box
• Installation: Flush-mounted
• Milling Diameter: 68 mm
• Depth: 49 mm
• Material: Polypropylene (PP)
• Halogen-free: Yes
• Flame Retardant: Yes (VDE 0606-1)
• Number of Cable Entries: 8
• Cable Entry Diameter: 3 - 20 mm
• For Plate Thickness: 7 - 35 mm
• Device Mounting: With screw domes
• Combination: With connection supports
• Protection Class: IP30
• Temperature Range: -5°C to +60°C
• Colour: Orange

Recommendations

For optimal installation, ensure the wall plate thickness is within 7-35 mm. Use appropriate cable glands for diameters outside the membrane range.
