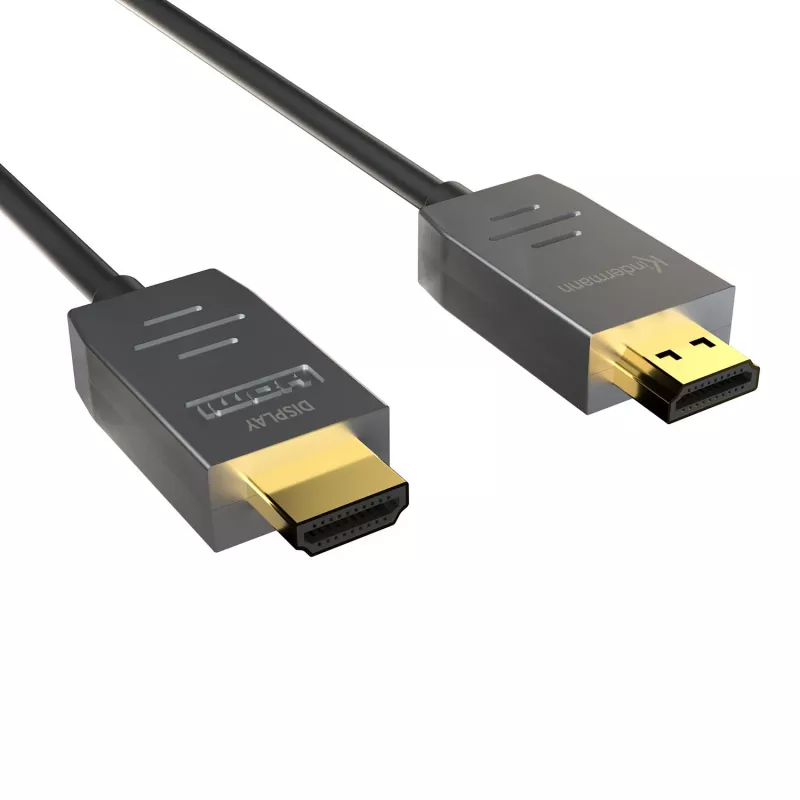

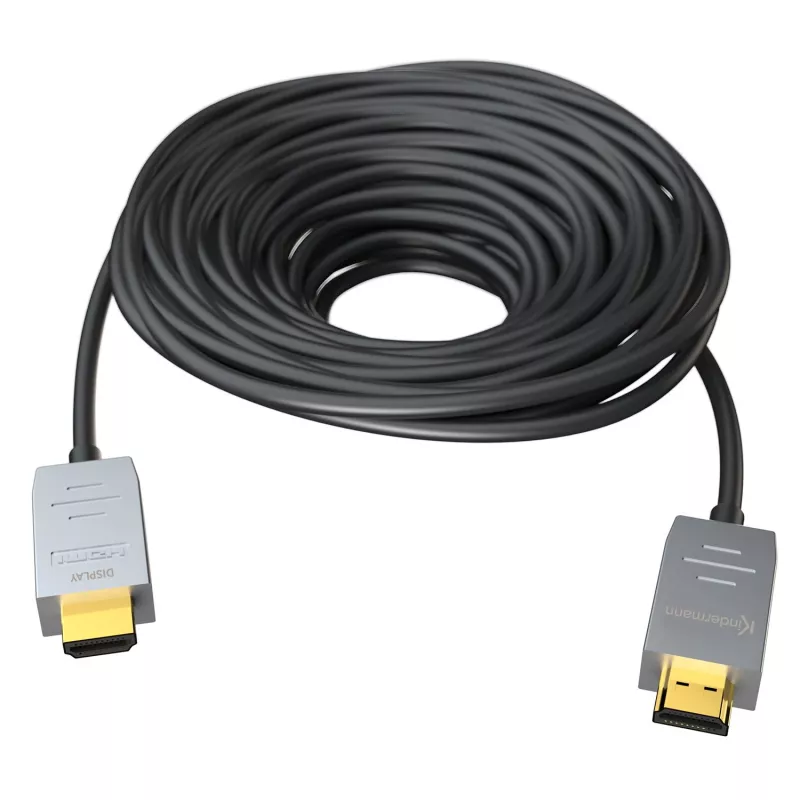

Kindermann Cable HDMI 2.0 AOC 50m conector macho/conector macho - Cable HDMI óptico activo - 4K UHD @60Hz - 18 Gbit/s - HDR - HDCP 2.2

The Kindermann HDMI 2.0 AOC Cable 50m St/St is a high-performance active optical cable designed for reliable transmission of 4K UHD video and multi-channel audio over long distances. Ideal for professional AV installations, digital signage, and home theater setups, this cable combines fiber optic technology with copper conductors to deliver 18 Gbps bandwidth, HDR support, and HDCP 2.2 compliance.

Advantages

Active Optical Technology (AOC) ensures signal integrity over 50 meters without degradation, immune to electromagnetic interference. Plug & Play installation with bus-powered operation eliminates the need for external power. Supports 4K UHD @60Hz with 4:4:4 chroma subsampling, HDR10, HLG, and Dolby Vision for stunning picture quality.

Suitable for

• Professional AV installations requiring long cable runs
• Digital signage and commercial displays
• Home theater systems with distant source and display
• Conference rooms and educational environments

Key specifications

• Cable Type: Active Optical Cable (AOC)
• HDMI Standard: HDMI 2.0b
• Bandwidth: 18 Gbps
• Maximum Resolution: 4K UHD (3840 x 2160) @ 60Hz
• Color Subsampling: 4:4:4, 4:2:2, 4:2:0
• HDR Support: HDR10, HLG, Dolby Vision
• HDCP Version: 2.2
• Audio Return Channel (ARC): Yes
• Connectors: HDMI Type A Male to HDMI Type A Male
• Cable Length: 50 meters
• Directionality: Directional (Source/Display marked)
• Power Source: Bus-powered (from HDMI port)
• Conductor Material: Fiber Optic (data), Copper (power/control)
• Jacket Material: PVC
• Supported Technologies: EDID, CEC
• Compliance: CE, RoHS
• Color Depth: Up to 12-bit
• Plug & Play: Yes
• EMI Resistance: High (due to fiber optic core)

Recommendations

For optimal performance, ensure the source device's HDMI port can provide sufficient power for the AOC cable. This cable is directional; connect the end marked 'Source' to the transmitting device and 'Display' to the monitor or projector.
