Caja de pared LANBERG WF10-2309-10S 9U, 280×310×469 mm, capacidad de carga 20 kg, gris

With a 9U capacity and a 20 kg load rating in a compact 280×310 mm footprint, the Lanberg WF10-2309-10S delivers serious rack organization for tight spaces. This 10" wall-mounted cabinet keeps network gear, CCTV recorders, and low-voltage components secure behind a lockable tempered glass door while maintaining a clean, professional look.

Overview

The WF10-2309-10S is a 9U wall-mount rack cabinet built from cold-rolled steel with a grey finish. It ships flat-pack for easy transport and quick on-site assembly. The front door is tempered glass with a key lock and up to 180° rotation, allowing full visibility of installed equipment. Top and bottom blank panels provide flexible cable entry, and the IP20 rating suits indoor installations. Compliance with ANSI/EIA RS-310-D, IEC297-2, and DIN41494 ensures compatibility with standard 19" rack-mount hardware.

What stands out

• 9U capacity in a 10" form factor – ideal for small network or surveillance setups
• Lockable tempered glass front door with 180° swing for easy access
• 20 kg maximum static load – supports switches, patch panels, and small UPS units
• Flat-pack design reduces shipping volume and simplifies handling
• Top and bottom knockouts for neat cable routing
• Removable side panels for effortless maintenance

Technical details

• Rack type: Wall-mounted network cabinet
• Rack units: 9U
• Rack standard: 19" (10" mounting width)
• External dimensions (W×D×H): 280 × 310 × 469 mm
• Maximum static load capacity: 20 kg
• Weight: 7 kg
• Material: Cold-rolled steel
• Front door: Tempered glass, lockable, up to 180° rotation
• Side panels: Removable
• Cable entry: Top and bottom blank panels

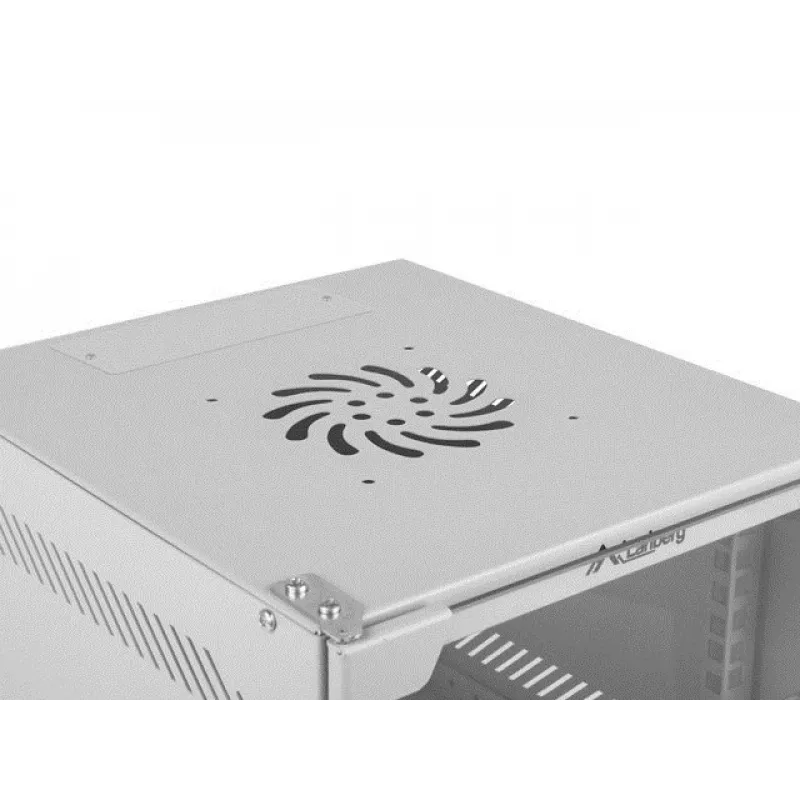

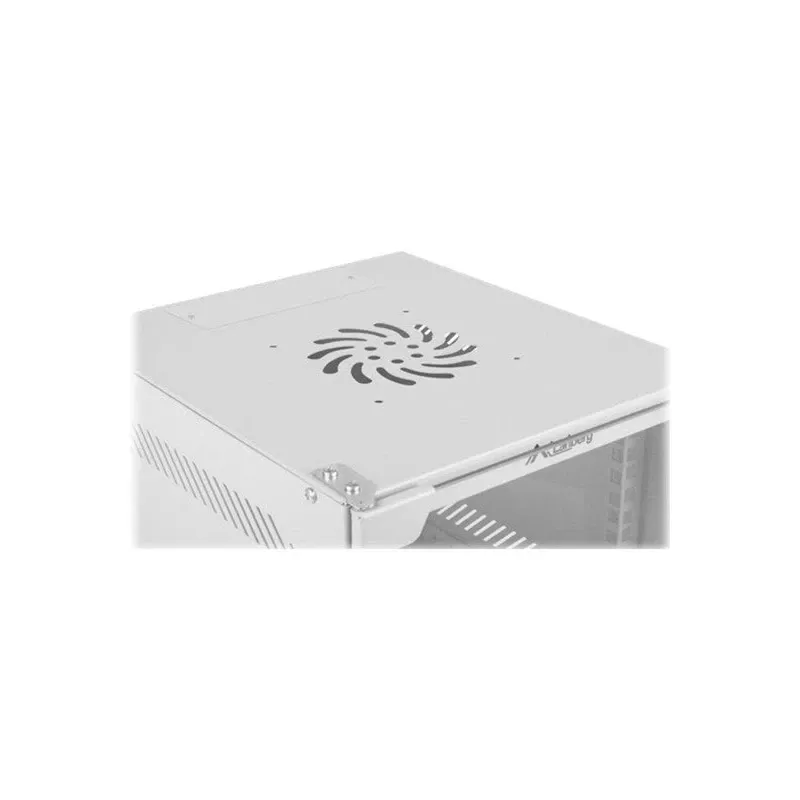

• Ventilation: Passive (fan ready)
• Protection rating: IP20
• Assembly: Flat-pack (assembly required)
• Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7
• Included accessories: Mounting kit, keys

Our verdict

The Lanberg WF10-2309-10S is a solid, no-nonsense wall-mount rack for small installations. Its lockable glass door, 20 kg capacity, and flat-pack convenience make it a practical choice for offices, retail back rooms, and home network closets.
