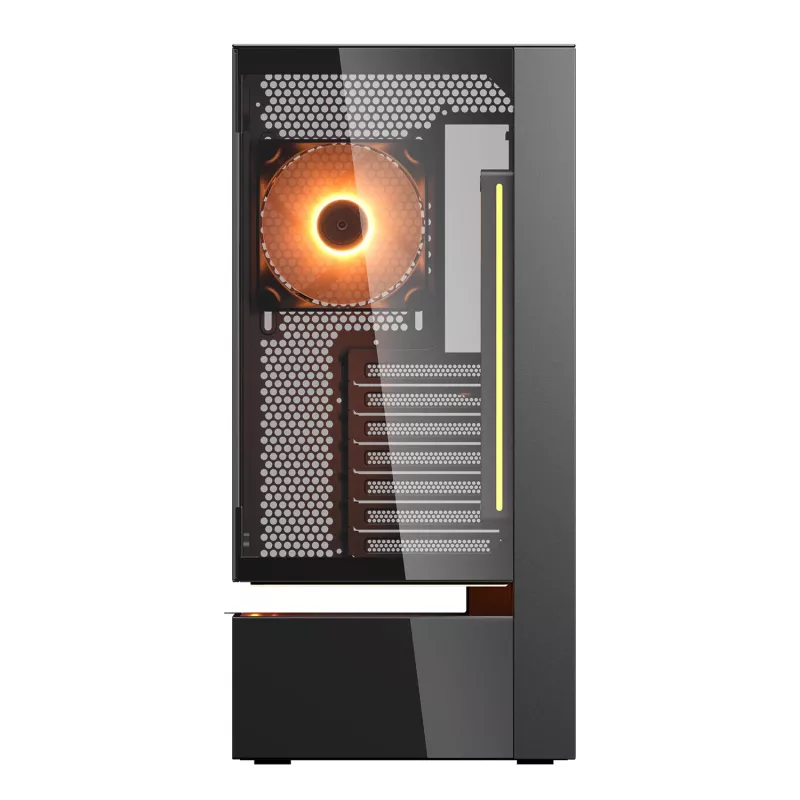

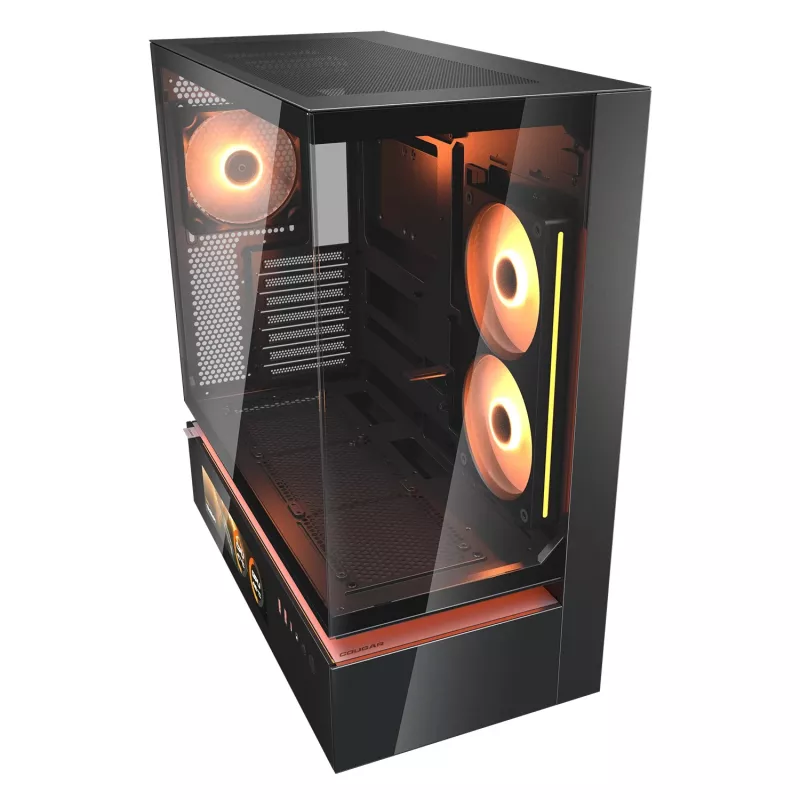

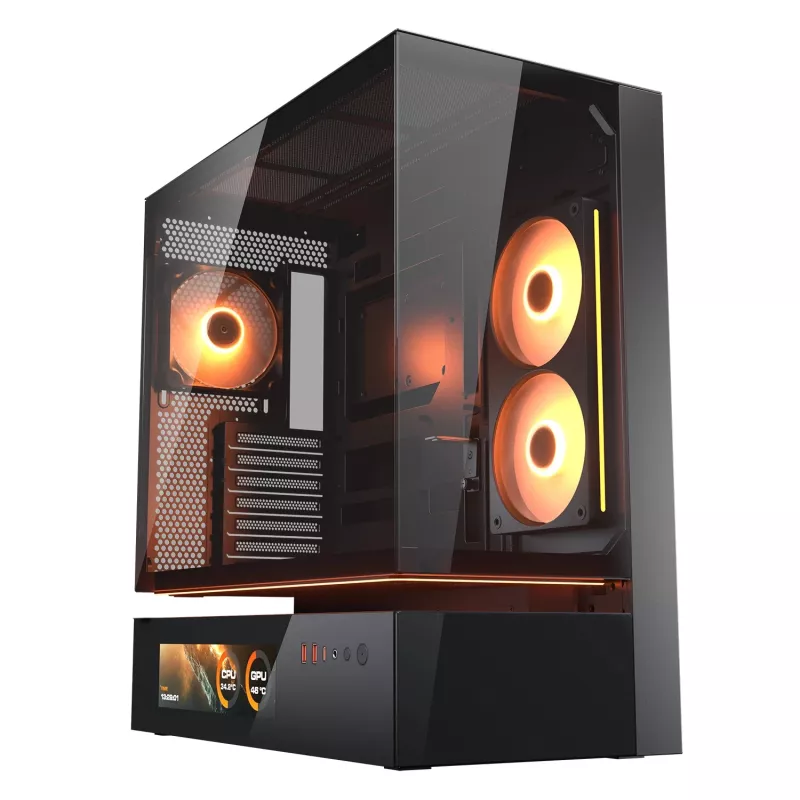

Caja de PC Cougar CFV235 Vision Torre Midi, ARGB, LCD de 9,16" (1920×462), cristal templado, negra

Float in Form. Flow in Function. Visualize in Motion.
The CFV235 Vision is a new kind of PC case featuring the innovative Central Floating Ventilation (CFV) structure. This divides the PSU cabin and main chamber, retooling the open space in between as a cooling advantage by accessing extra ventilation. An integrated 9.16-inch IPS TFT LCD panel provides real-time, software-controlled system monitoring in ultra-crisp 1920×462 resolution at a 60Hz refresh rate, displaying critical data and customizable visuals.

An optimal combination of a full panoramic view, compact footprint, architecturally-enhanced cooling and immersive display technology, the CFV235 Vision empowers airflow beyond ordinary dimensions, visualized.

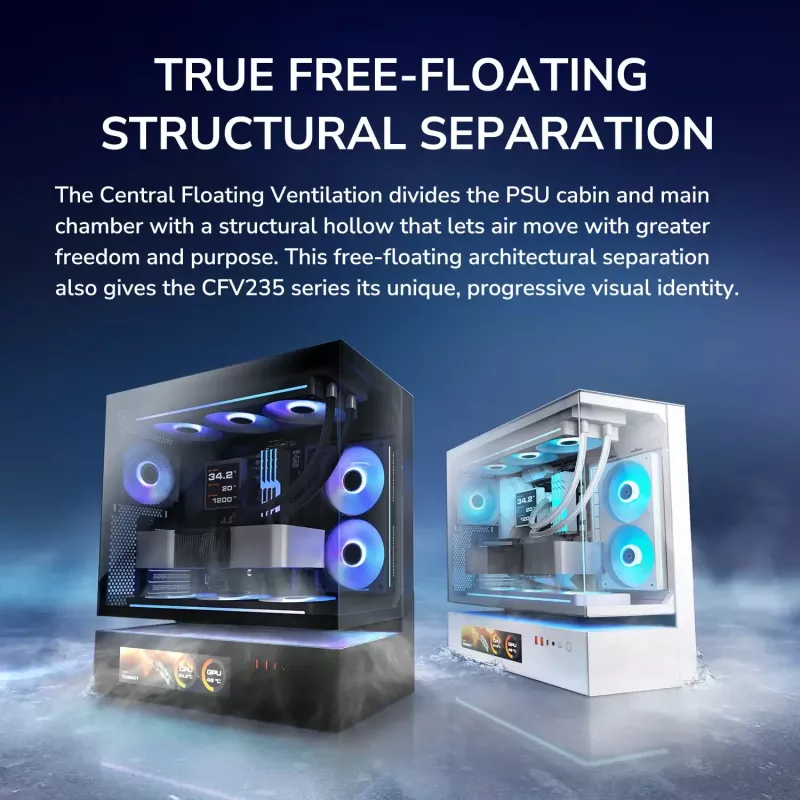

True Free-Floating Structural Separation
Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.

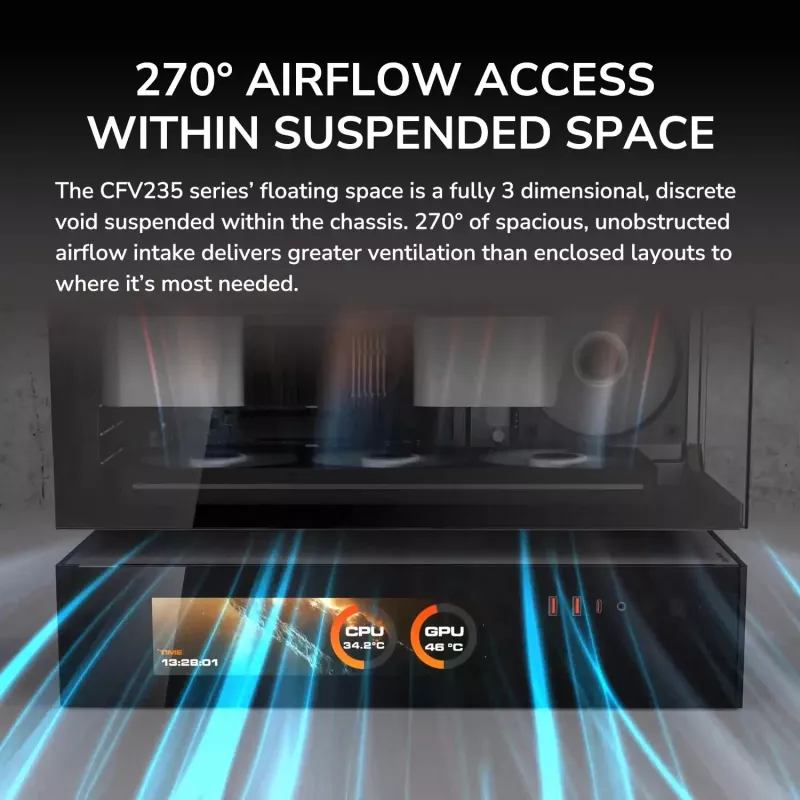

270° Airflow Access Within Suspended Space
The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.

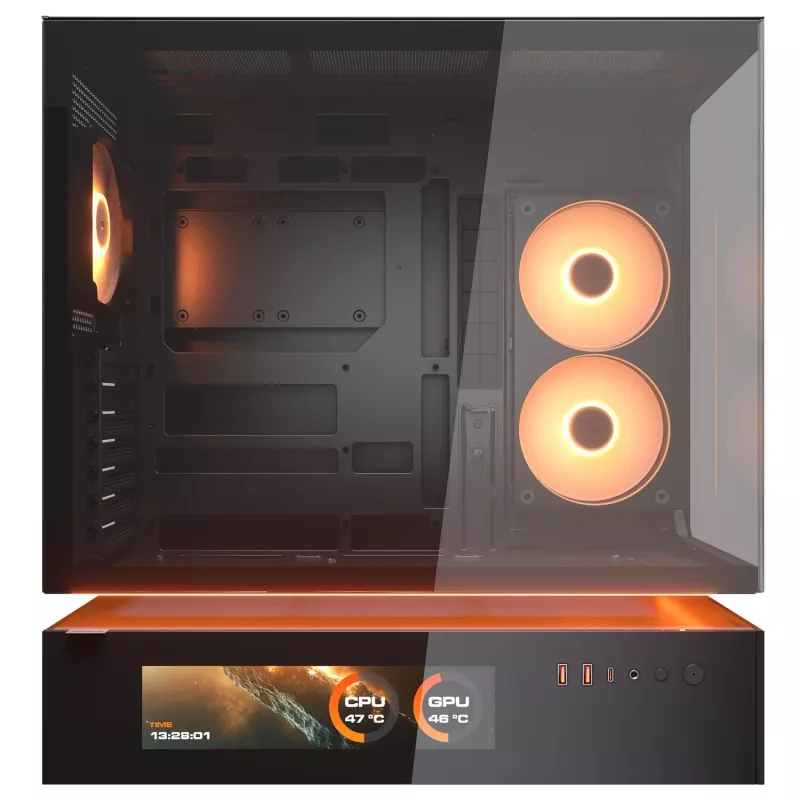

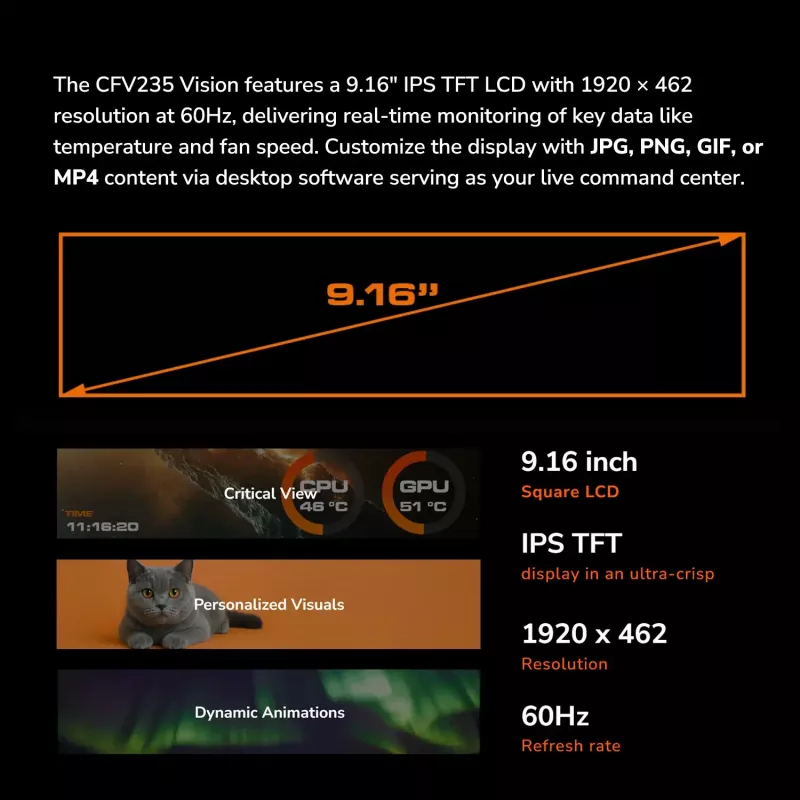

The Eye in the Machine
The CFV235 Vision integrates a 9.16-inch IPS TFT LCD panel for real-time system monitoring in an ultra-crisp 1920 x 462 resolution with a 60Hz refresh rate. Keep an eye on critical data from temperatures to fan speeds, while you personalize the display with JPG, PNG, GIF, or MP4 content, all managed through desktop software that acts as a live command center.

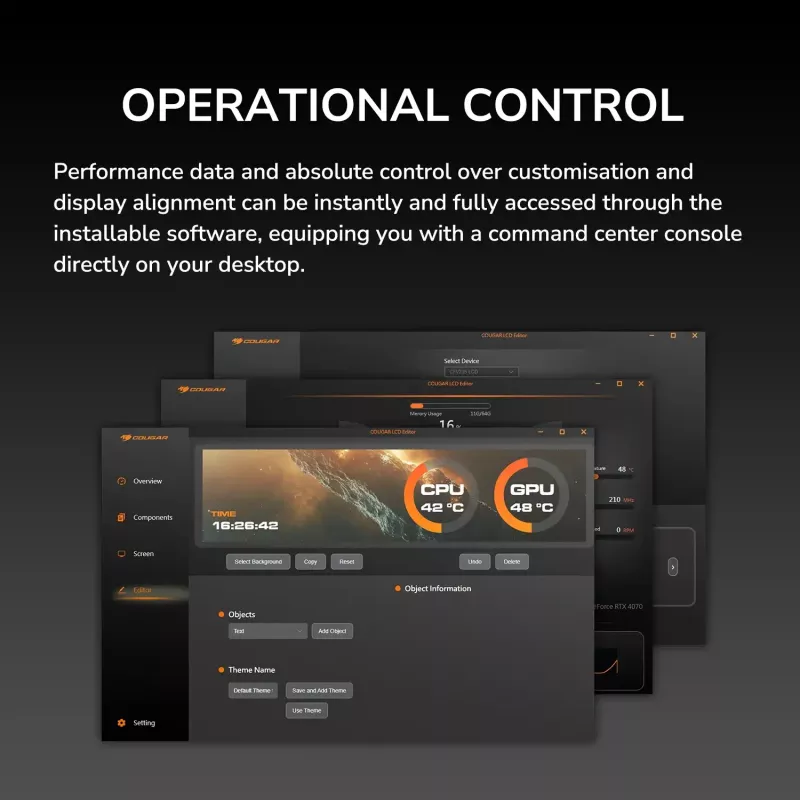

Operational Control
Performance data and absolute control over customisation and display alignment can be instantly and fully accessed through the installable software, equipping you with a command center console directly on your desktop.

Pre Installed Reverse Blade
Unity ARGB 240 Fans
COUGAR Unity ARGB 240 single-frame PWM reverse-blade fans are preinstalled on the motherboard side, providing precise fan speed control, exceptional cooling, near-silent operation, and stunning RGB lighting straight out of the box.

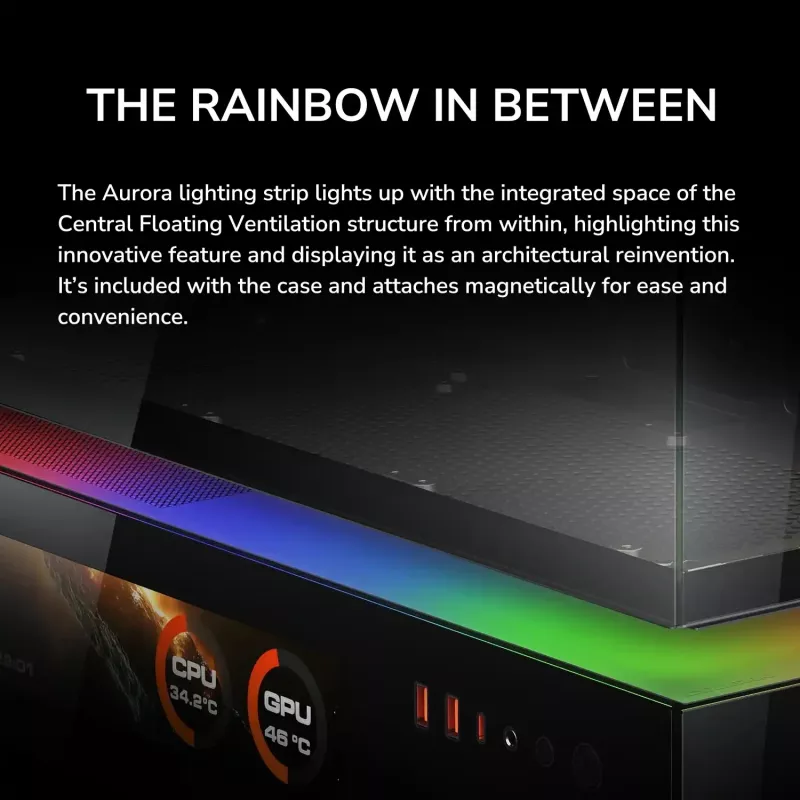

The Rainbow In Between
The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.

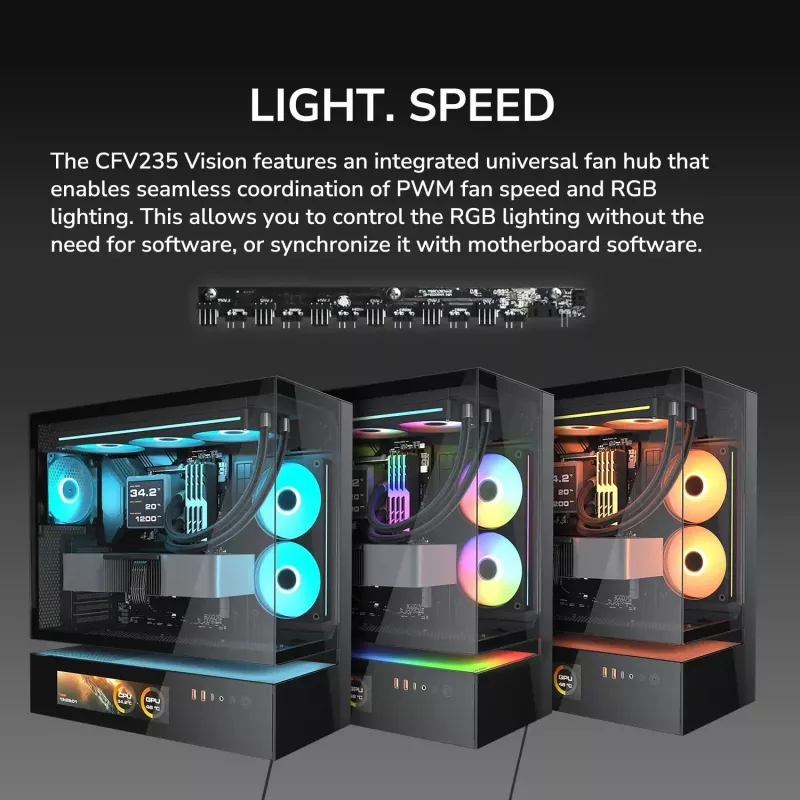

Light. Speed
The CFV235 Vision features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software.

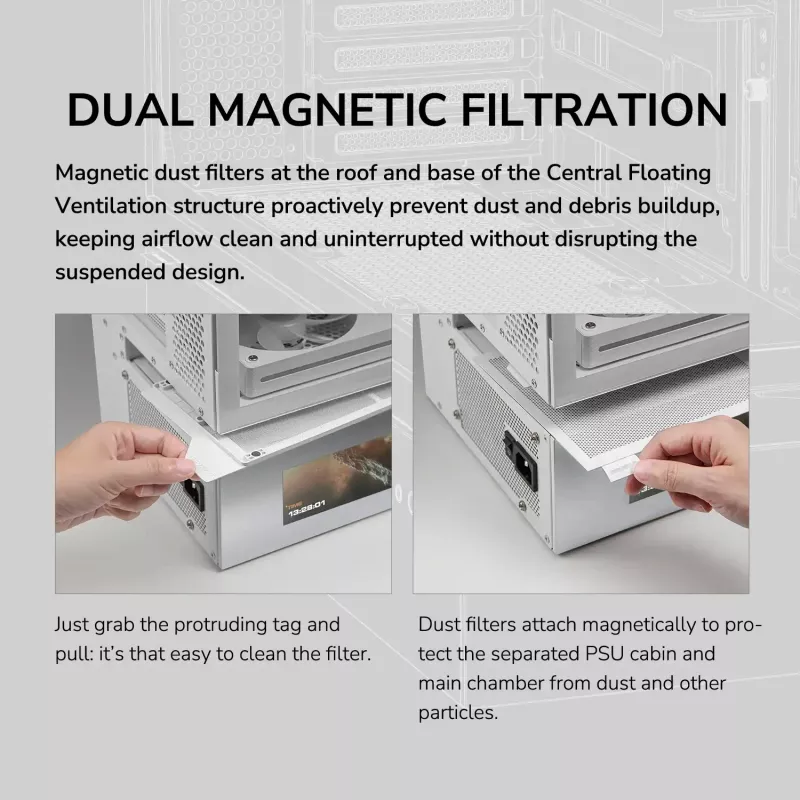

Dual Magnetic Filtration
Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design.

Just grab the protruding tag and pull: it’s that easy to clean the filter.

Dust filters attach magnetically to protect the separated PSU cabin and main chamber from dust and other particles.

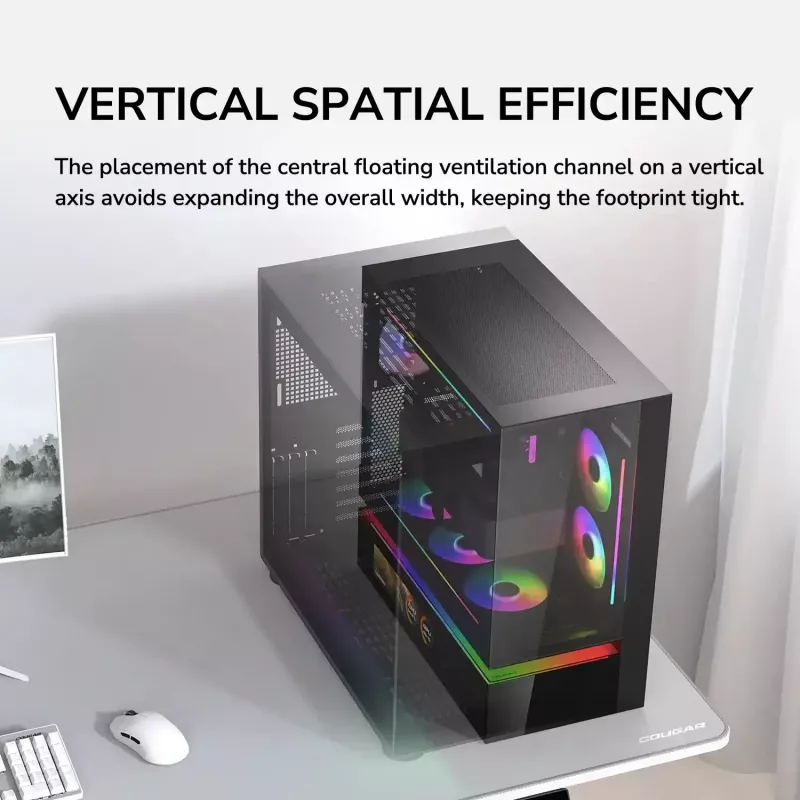

Vertical Spatial Efficiency
The placement of the central floating ventilation channel on a vertical axis avoids expanding the overall width, keeping the footprint tight.

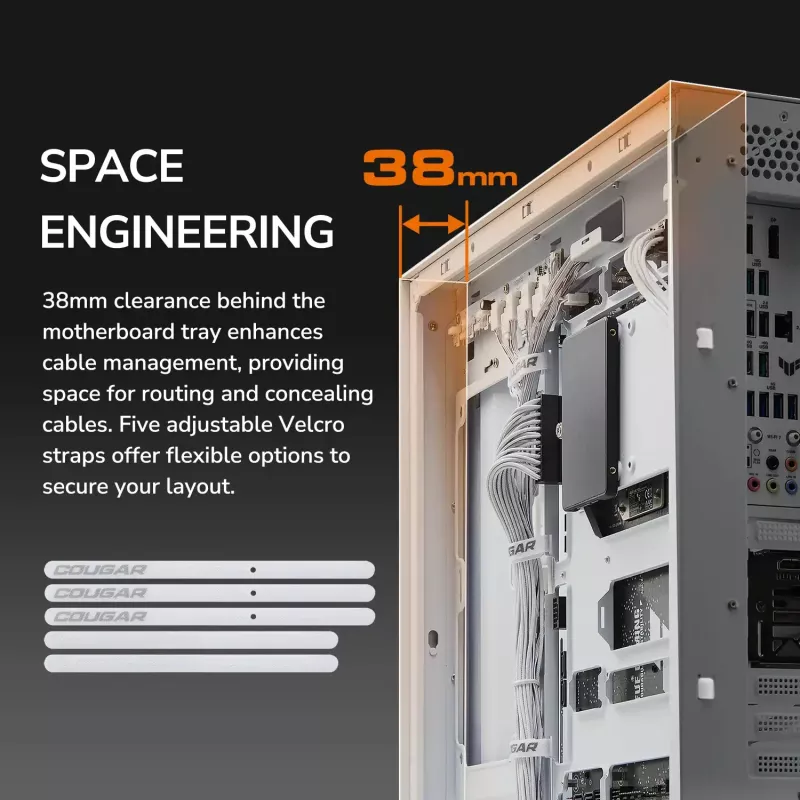

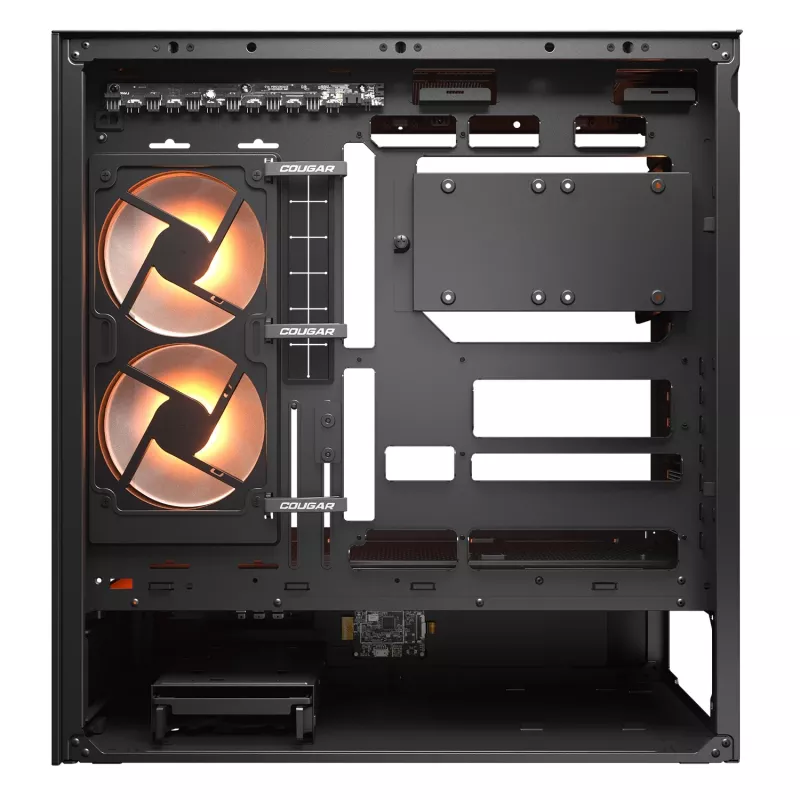

Space Engineering
38mm of clearance behind the motherboard tray improves cable management ,offering more room to route and conceal cables of varying thickness. Five adjustable Velcro straps offer versatile options to secure and tidy your layout.

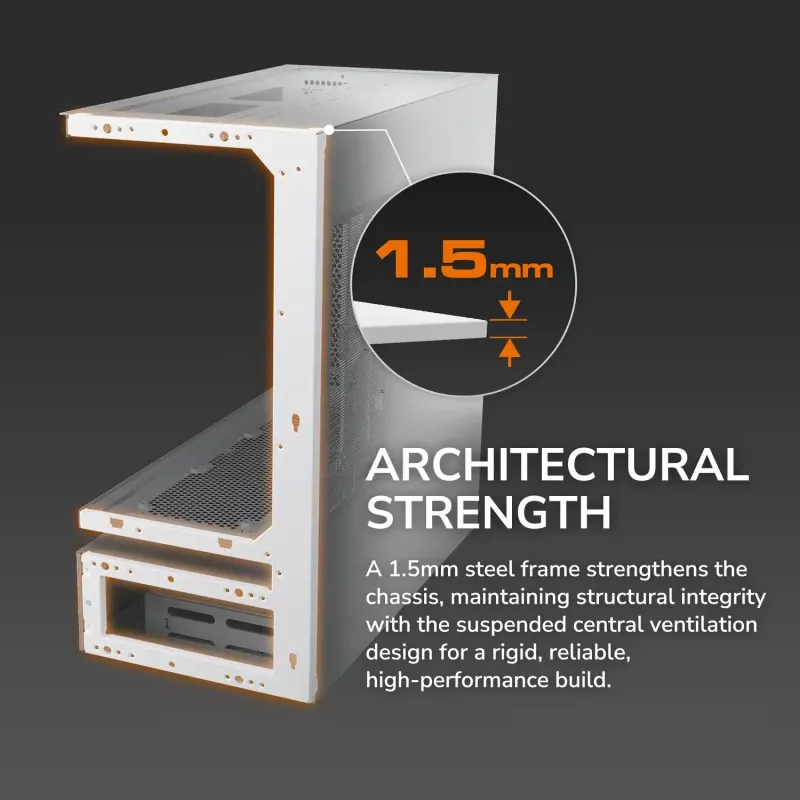

Architectural Strength
A 1.5mm-thick steel frame reinforces the chassis, preserving structural integrity even with the suspended central ventilation design. The result is a bold, open architecture that stays rigid, reliable, and ready for high-performance builds.

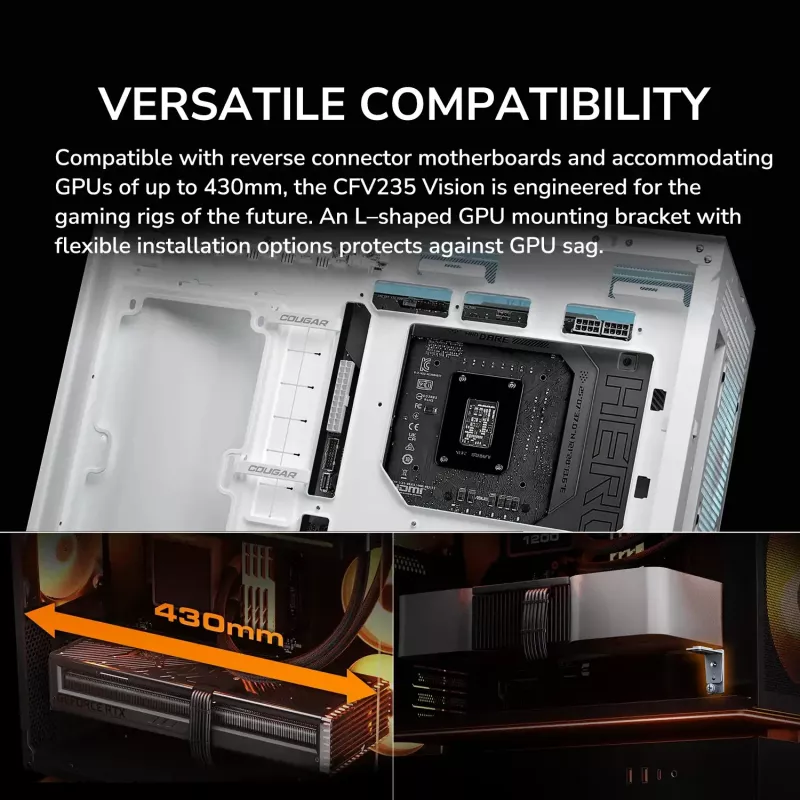

Versatile Compatibility
Compatible with reverse connector motherboards and accommodating GPUs of up to 430mm, the CFV235 Vision is engineered for the gaming rigs of the future. An L–shaped GPU mounting bracket with flexible installation options protects against GPU sag.

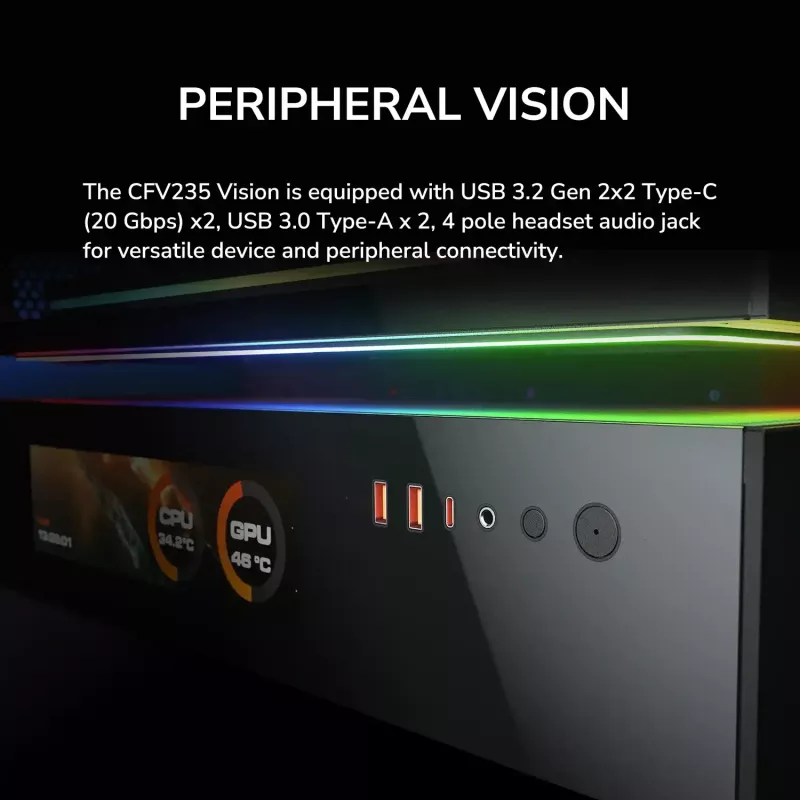

Peripheral Vision
The CFV235 Vision is equipped with USB 3.2 Gen 2x2 Type-C (20 Gbps) x2, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device and peripheral connectivity.

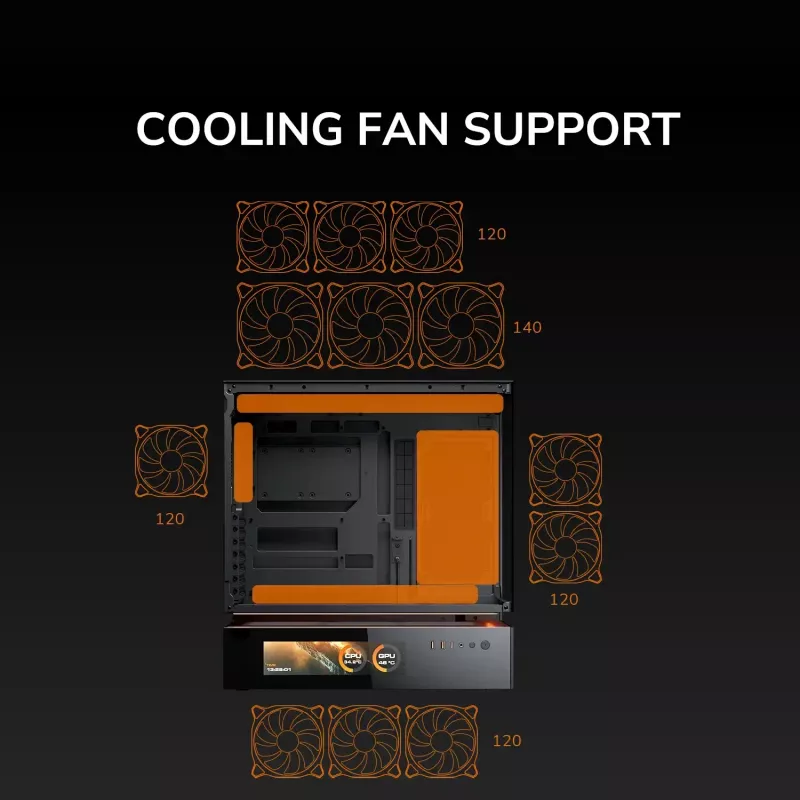

Cooling Capacity

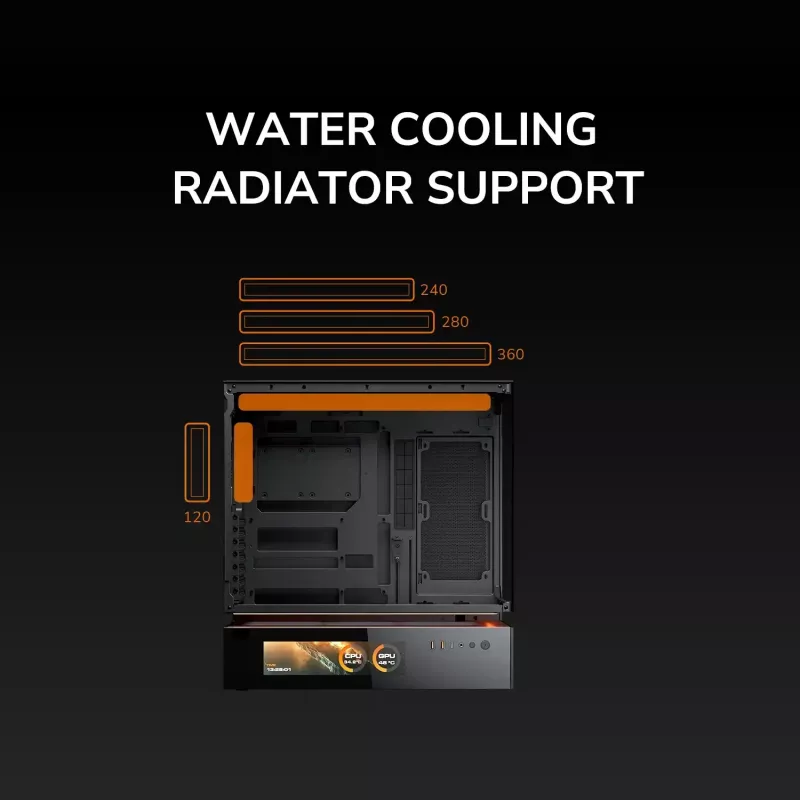

The CFV235 Vision has a fan capacity of 3x120mm or 3x140mm on the top, 3x120mm on the floor of the main chamber, 2x120mm fans on the motherboard side, and 1x120mm (pre-installed) on the rear. Water cooling support maxes out at 360mm on the top.

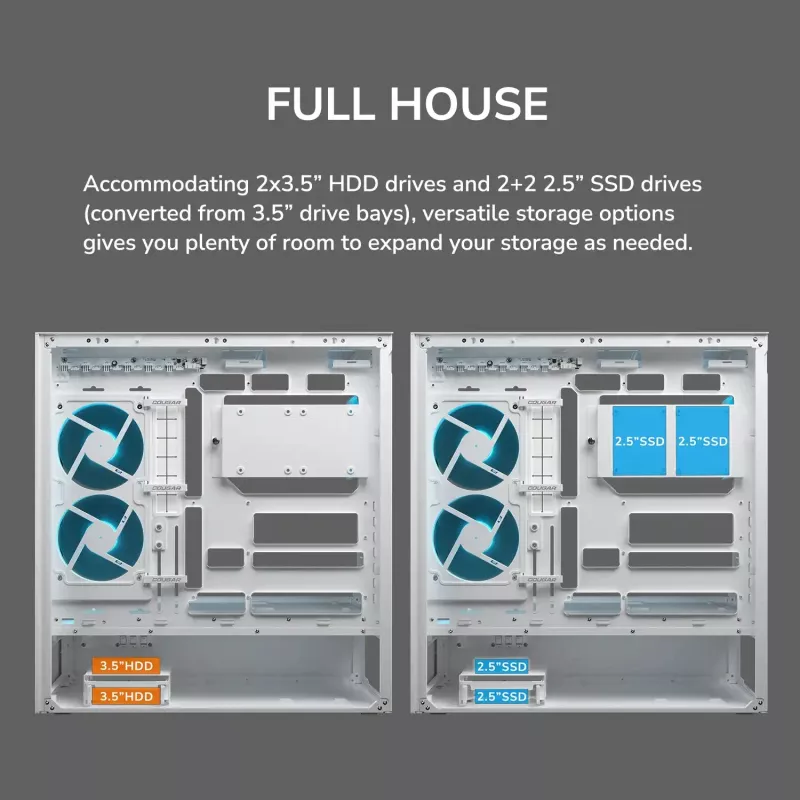

Full House
Accommodating 2x3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays), versatile storage options gives you plenty of room to expand your storage as needed.

How to use

Install the motherboard (ATX/CEB/Micro‑ATX/Mini‑ITX) and connect PSU to the separated PSU cabin, route cables behind the 38 mm clearance behind the motherboard tray and secure them with the included adjustable Velcro straps. Mount storage drives in the convertible 3.5" bays or dedicated 2.5" locations, install GPU (up to 430 mm) using the L‑shaped mounting bracket as needed to prevent sag, and place fans or radiators according to the listed fan mounts. Connect the integrated LCD and ARGB components to the motherboard or use the included universal fan hub and the installable control software to manage display content, performance readouts and lighting.

Recommendations

For optimal cooling and display use, keep the magnetic dust filters clean by pulling the filter tab to remove and wipe them periodically; synchronize ARGB lighting through the hub or motherboard software and use the control software for detailed LCD monitoring and content management.
