Caja de PC Thermaltake AH T200 Snow Micro Tower blanca

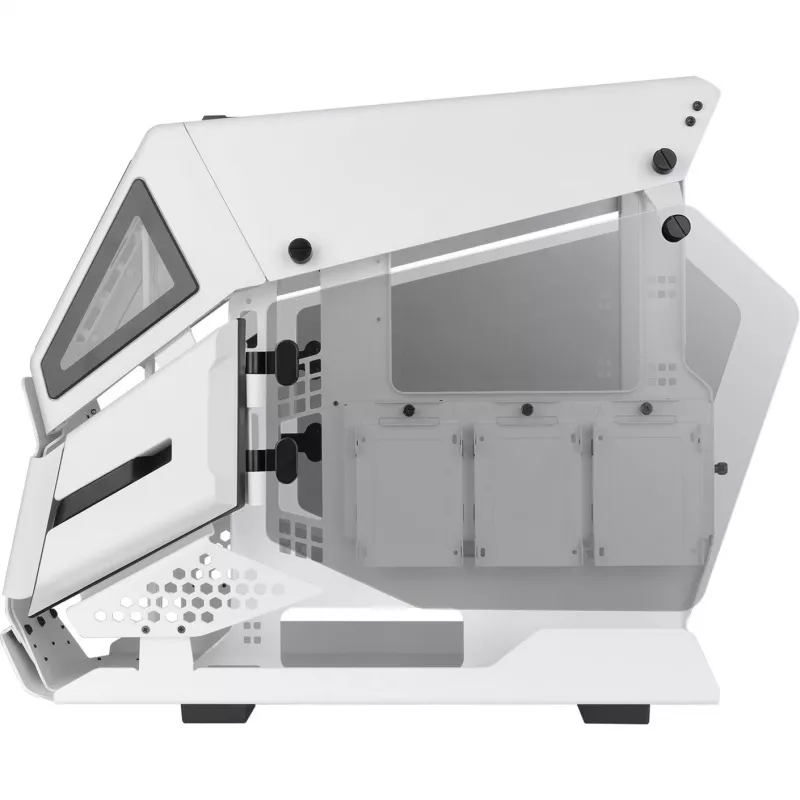

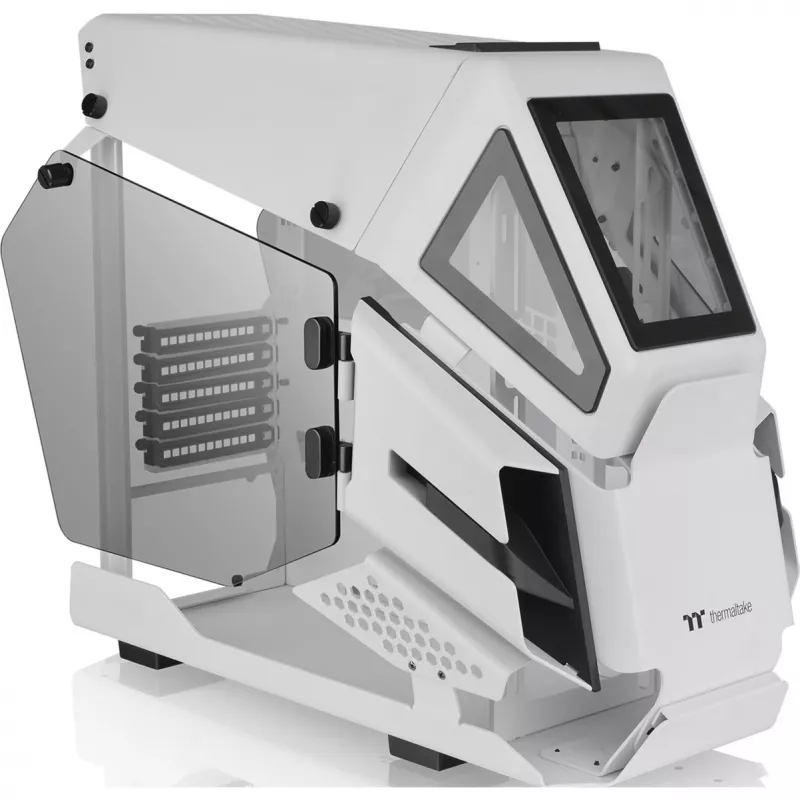

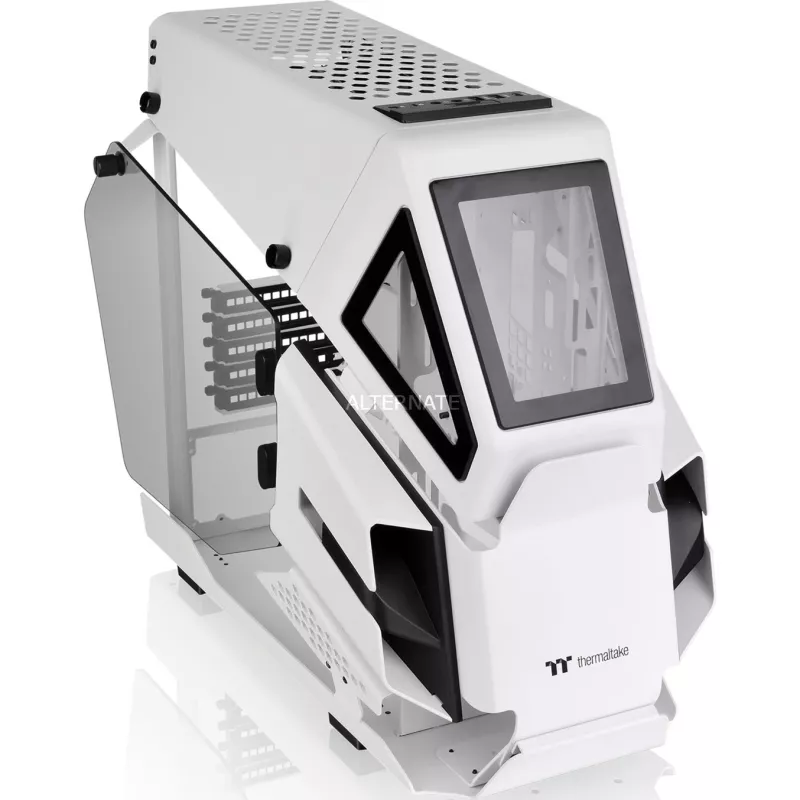

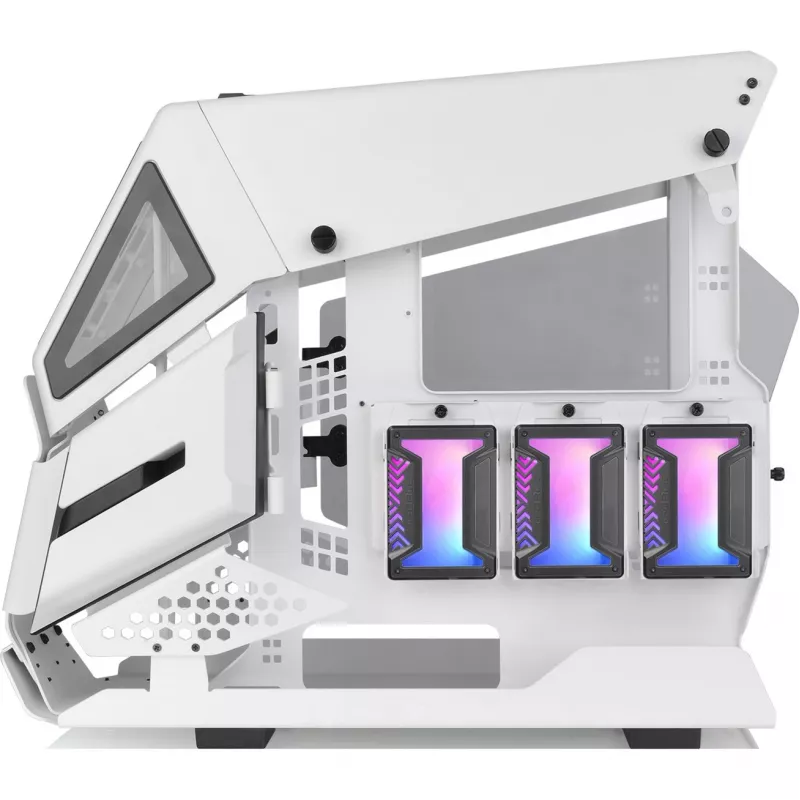

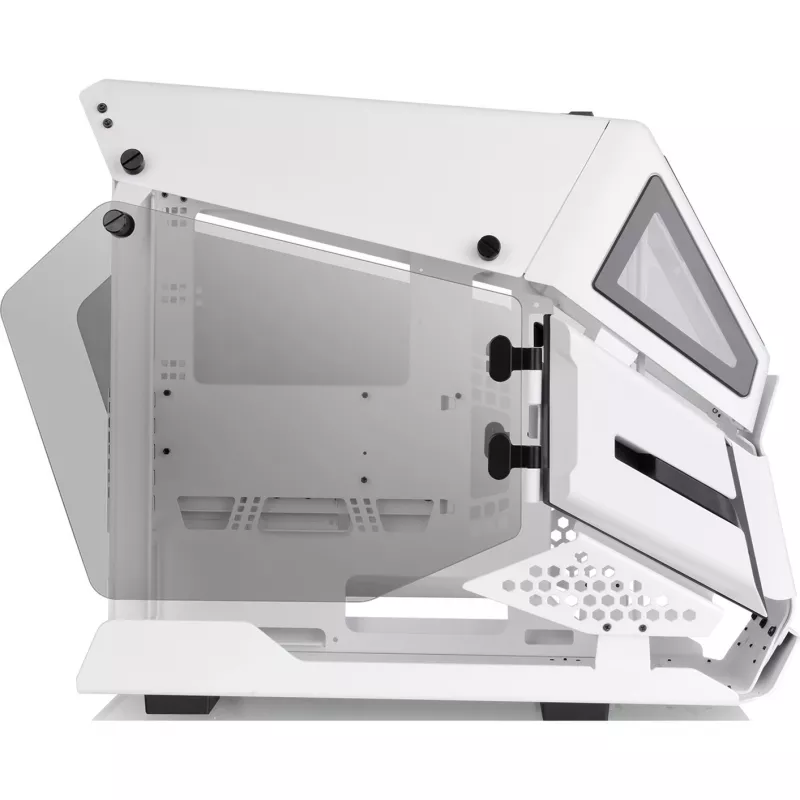

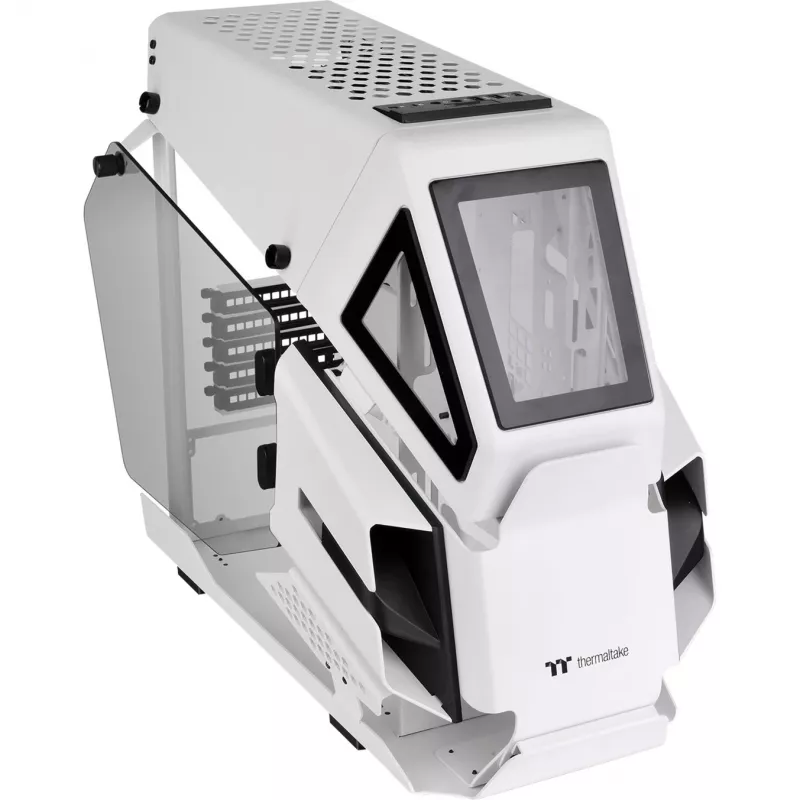

The Thermaltake AH T200 Snow Micro Tower is a white micro ATX PC case with a helicopter-inspired open-frame design, tempered glass side and front windows, and top-front I/O. Constructed from SPCC steel with thick tempered glass panels, the chassis supports Micro ATX and Mini-ITX motherboards and offers dedicated airflow routes and modular assembly for compact high-performance builds.

Advantages

The case features two 4 mm tempered glass side panels and three 3 mm tempered glass front windows for durable component visibility. Its open-frame layout and side vents promote effective airflow, while the dismantlable modular design (DMD) simplifies installation and maintenance. Top-front I/O includes two USB 3.0 Type-A ports and one USB 3.1 (Gen 2) Type-C port for convenient connectivity. The AH T200 Snow supports multiple fan and radiator configurations to suit strong cooling needs in a compact footprint.

Suitable for

• Compact Micro ATX or Mini-ITX gaming and workstation builds
• Systems requiring visible component showcase with tempered glass
• Builds that need strong airflow or front-mounted AIO radiators (240/280 mm)

Key specifications

• Form factor: Micro Tower compatible with Micro ATX and Mini-ITX
• Material: SPCC steel and tempered glass (two 4 mm side panels, three 3 mm front windows)
• Drive bays: up to two 3.5" or three 2.5" (3.5" thickness limit: 22 mm)
• Cooling support: up to two 120/140 mm fans at front and top; front radiator support: 120/140/240/280 mm
• CPU cooler max height: 150 mm; VGA max length: 320 mm; PSU max length: 180 mm
• I/O: 2 × USB 3.0 Type-A, 1 × USB 3.1 (Gen 2) Type-C
• Product colour: White; weight: 10.8 kg

How to use

Install a Micro ATX or Mini-ITX motherboard on the provided standoffs and route cables through the open interior and modular mounting points. Mount storage drives in the designated trays or brackets according to their form factor, observing the 3.5" thickness limitation. Fit cooling components—front fans or a 240/280 mm AIO radiator are supported at the front; additional 120/140 mm fans may be installed on top. Swing-open tempered glass doors on either side provide direct access for component installation and maintenance and can be removed entirely if full internal access is needed.

Recommendations

For best thermal performance, install intake fans at the front and keep cable routing tidy using the modular brackets. If using a 3.5" HDD, ensure the drive thickness does not exceed 22 mm. When planning high-performance builds, prioritize front-mounted 240/280 mm AIO radiators and verify GPU and PSU length compatibility with the specified limits.
