Caja de red de montaje en pared DIGITUS Dynamic-N DN-37111 — 12U, 600 x 600 mm, IP20, cerradura con llave

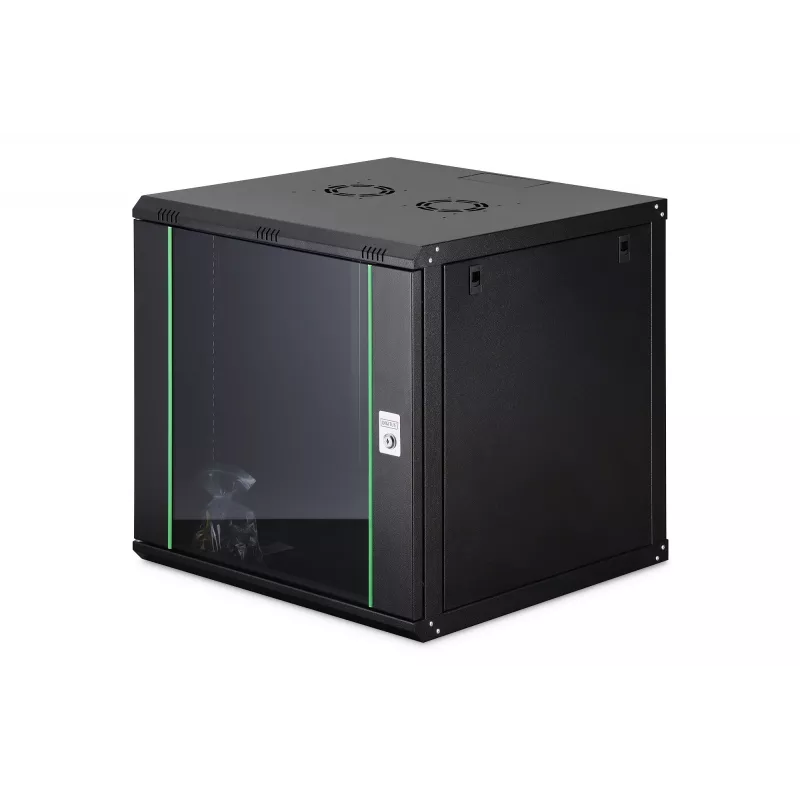

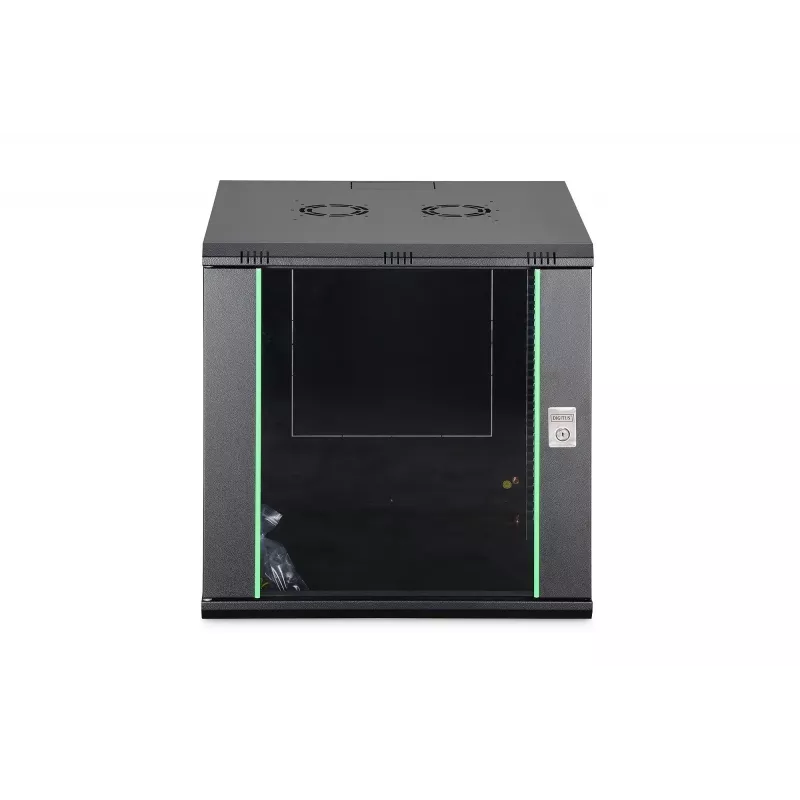

DIGITUS Dynamic-N DN-37111 is a 12U wall-mounted network enclosure (600 x 600 mm) designed for housing 19" network and telecommunications equipment. The cabinet is supplied unassembled to reduce transport volume and can be quickly assembled on site. It provides basic protection at IP20 level, a lockable safety glass front door with steel frame and adjustable galvanized 19" profile rails at the front and rear.

Advantages

The enclosure is made from robust 1.0–1.2 mm sheet steel with electrostatic powder coating and offers good load-bearing capacity for medium-density installations up to 60 kg. Ventilation slots and pre-punched cable inlets in the roof, base and rear allow both passive and active cooling and simple cable routing. Removable side panels, a removable rear panel and a hinged, lockable front door improve accessibility during installation and maintenance. Supplied unassembled in a flat pack, it optimises transport and storage.

Suitable for

• Small to medium-sized network or server installations in offices or communication rooms
• Mounting 19" patch panels, switches and small routers up to 12U
• Environments requiring a lockable front door and basic dust protection (IP20)

Key specifications

• Rack units: 12U
• External width: 600 mm
• External depth: 600 mm
• External height: 607 mm
• Installation depth for components: 369–470 mm (standard maximum)
• Material: sheet steel, thickness 1.0–1.2 mm; front door: safety glass with steel frame
• Finish: electrostatic powder coating, black
• Protection class: IP20
• Maximum load capacity: 60 kg

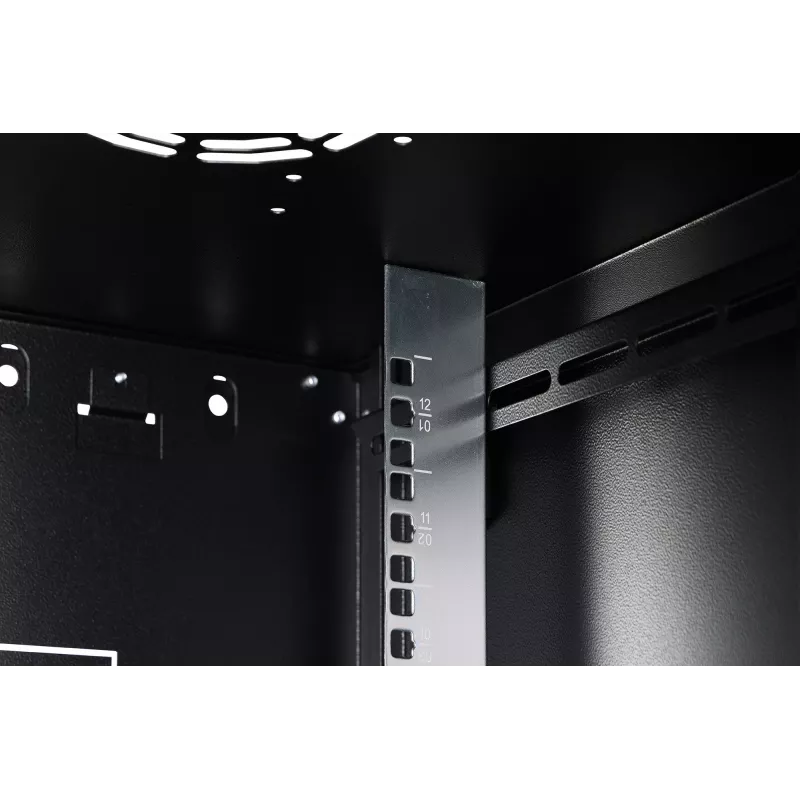

• 483 mm (19") profile rails at front and rear, galvanized and depth-adjustable; rails marked in height units
• Cable entry: pre-punched cut-outs at roof, rear and base
• Ventilation: ventilation slots and roof prepared for fan module

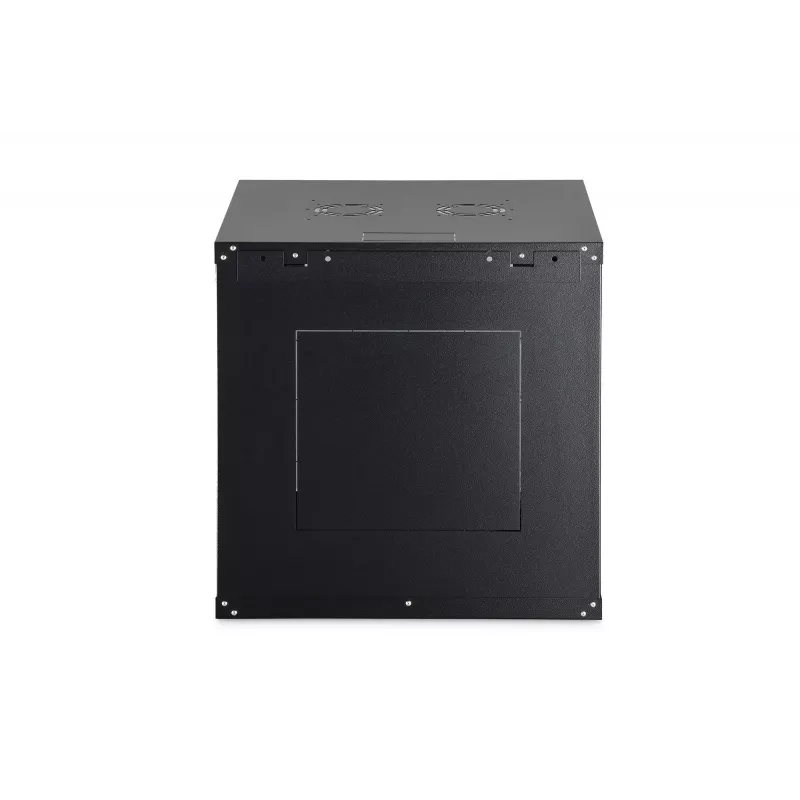

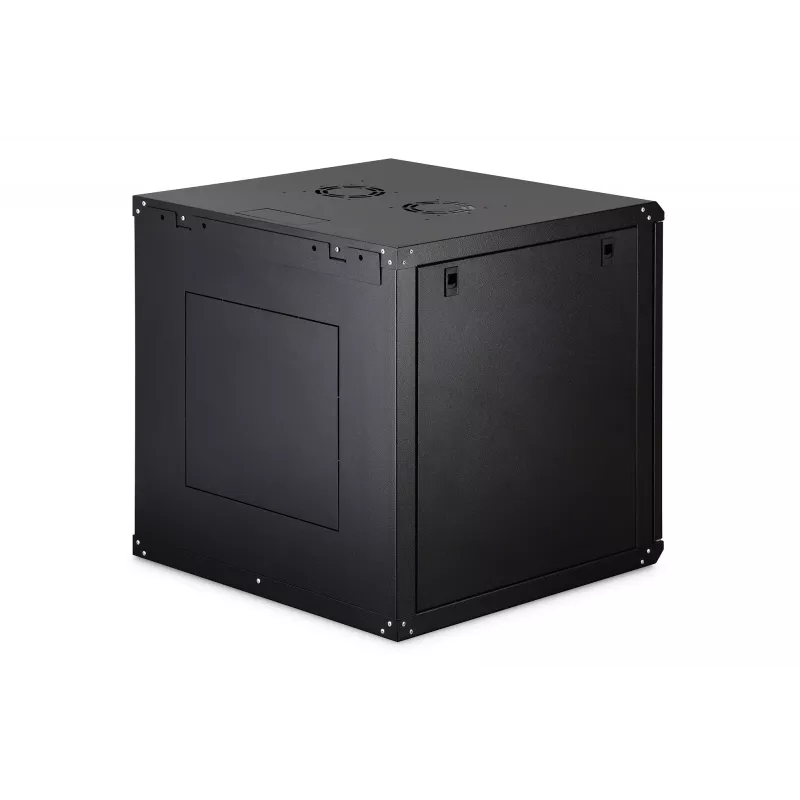

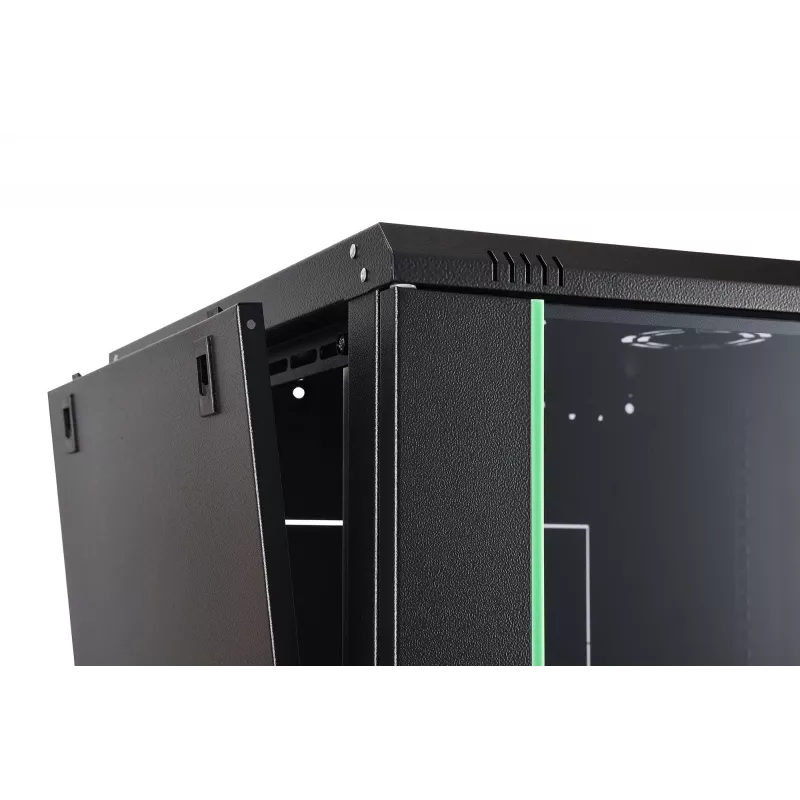

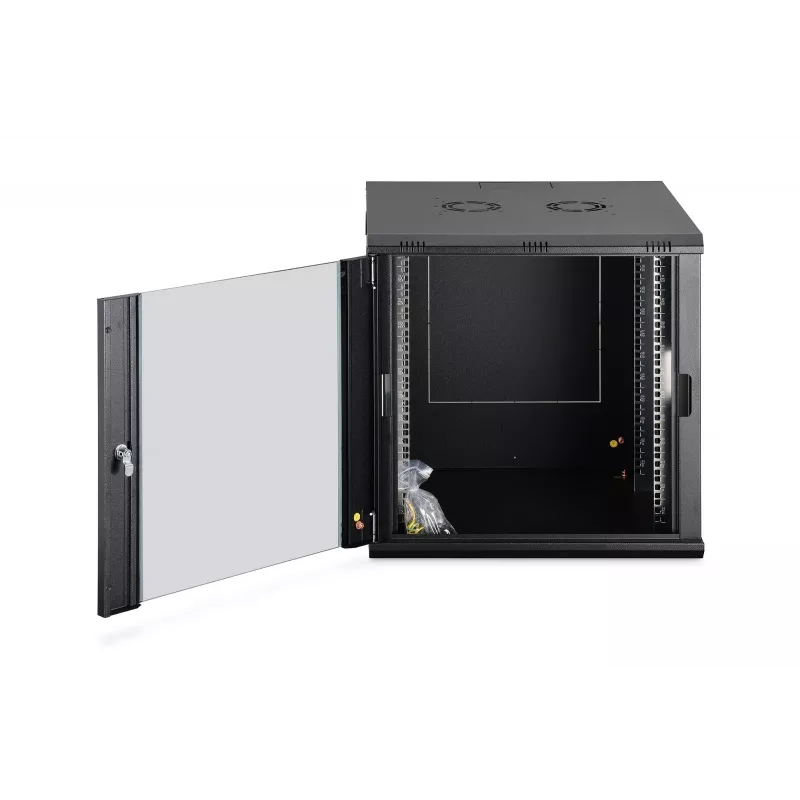

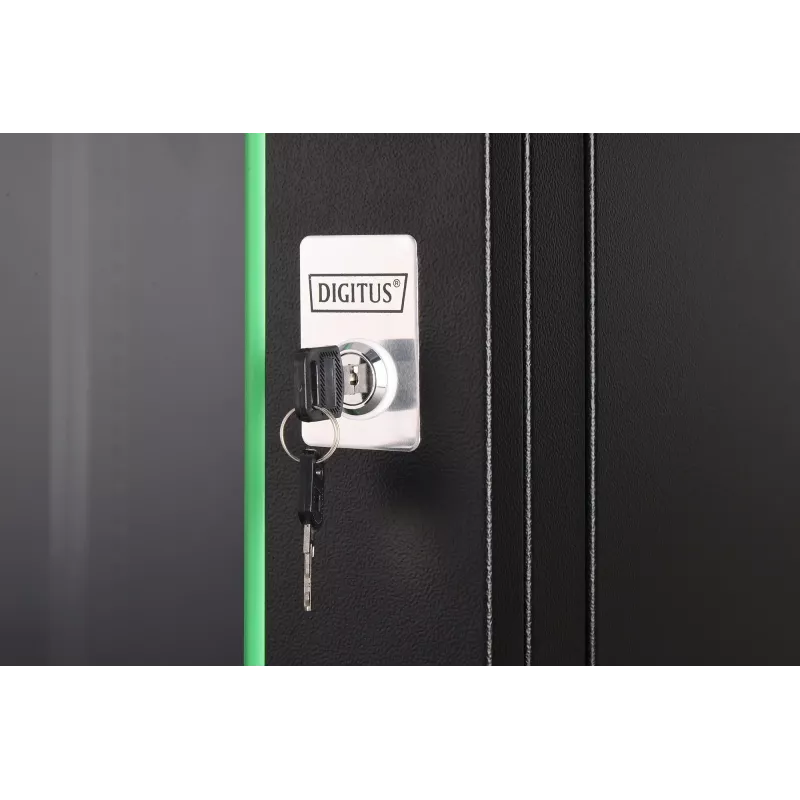

• Door: lockable with 1-point locking, 230° opening angle; removable front and rear doors and side panels

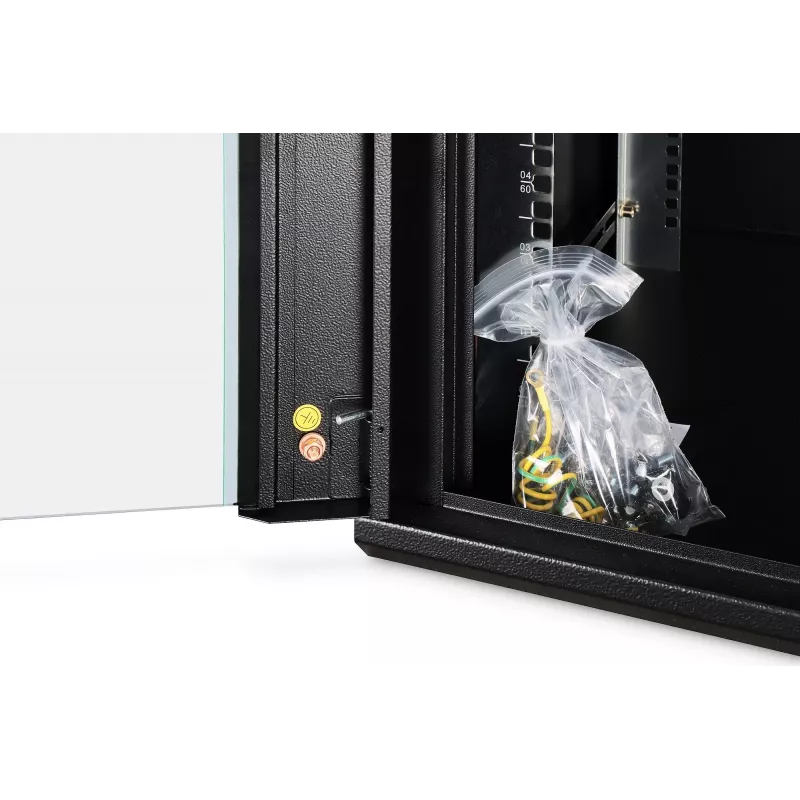

• Earthing: 4 earthing points (base, side panel, front door) with protective caps

How to use

Unpack the flat pack and follow the enclosed installation instructions to assemble the cabinet. First mount the supplied wall plate to a suitable load-bearing wall, then attach the assembled housing to the plate. Fit and adjust the galvanized 19" profile rails to the required depth and secure equipment such as patch panels, switches or small servers within the 12U space. Route cables through the pre-punched entries in the roof, base or rear and, if required, install a fan module in the roof area and use the ventilation slots to support cooling. Lock the front door with the supplied key when access control is needed.

What to consider before purchase

• Intended installation location must be dry and indoors due to IP20 protection
• Verify that the maximum load capacity (60 kg) and internal installation depth (369–470 mm) suit your equipment
• Ensure wall structure and mounting points can safely support the cabinet and its loaded weight
• Plan cable entry points and any additional cooling (fan module) required for active ventilation

Recommendations

For reliable operation, mount the cabinet on a solid wall, distribute equipment weight evenly across the rails, use the adjustable rails to accommodate device depths, and fit a fan module if devices produce significant heat. Keep side panels closed to maintain dust protection and lock the front door to restrict access.
