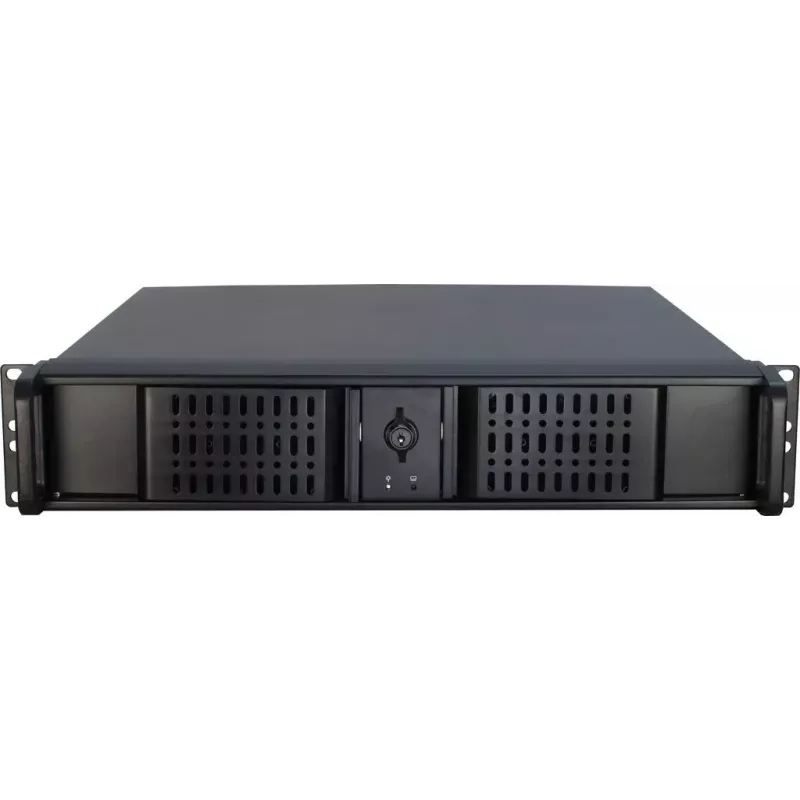

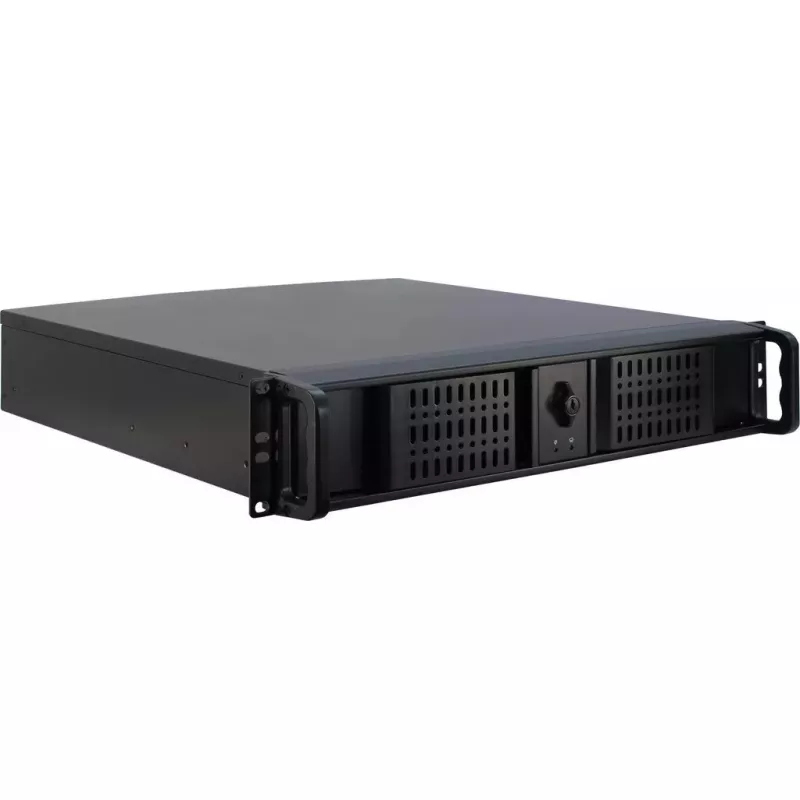

Caja de servidor Inter-Tech 2U-2098-SK rack negra

The Inter-Tech 2U-2098-SK Rack Black is a 2U server case designed for compact rack installations and reliable continuous operation. Constructed from steel with a black finish, it accommodates Micro ATX and Mini-ITX motherboards and provides multiple drive bays for flexible storage configurations. Two 60 mm front fans are included to support airflow in dense server environments, while front I/O offers two USB 2.0 ports for basic connectivity. The chassis dimensions are 485 mm (width) x 505 mm (depth) x 89 mm (height), making it suitable for standardized 19" rack systems where space efficiency is required.

Advantages

The steel construction ensures structural rigidity and durability for server use, while the compact 2U rack form factor conserves valuable rack space. A combination of eight 3.5" bays and three 2.5" bays plus one 5.25" bay allows mixed HDD and SSD setups. Two preinstalled 60 mm front fans help maintain stable operating temperatures in enclosed rack environments. Built-in front USB 2.0 ports provide convenient local access for maintenance tasks and peripheral connections.

Suitable for

• Small to medium rack-mounted server deployments
• Storage-focused builds using multiple 3.5" and 2.5" drives
• Compact Micro ATX or Mini-ITX server motherboards
• Cases where 2U height and a 19" rack footprint are required

Key specifications

• Form factor: 2U rack chassis
• Material: steel
• Colour: black
• Supported motherboard sizes: Micro ATX, Mini-ITX
• Drive bays: 8 × 3.5" bays, 3 × 2.5" bays, 1 × 5.25" bay

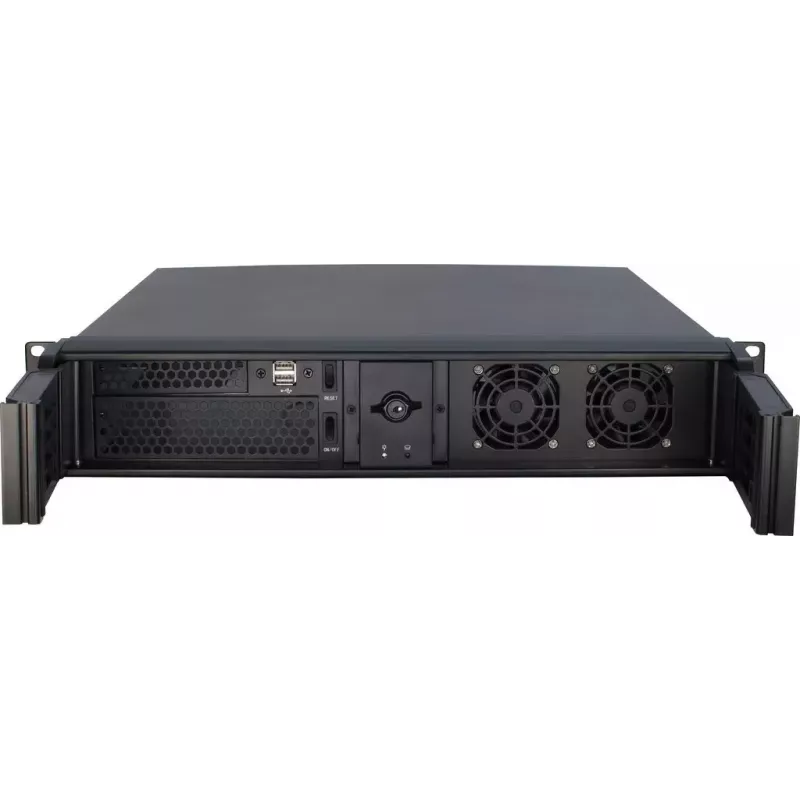

• Cooling: 2 × front 60 mm fans (preinstalled)
• Front I/O: 2 × USB 2.0 ports
• Dimensions (W×D×H): 485 × 505 × 89 mm
• Weight: 6.48 kg

How to use

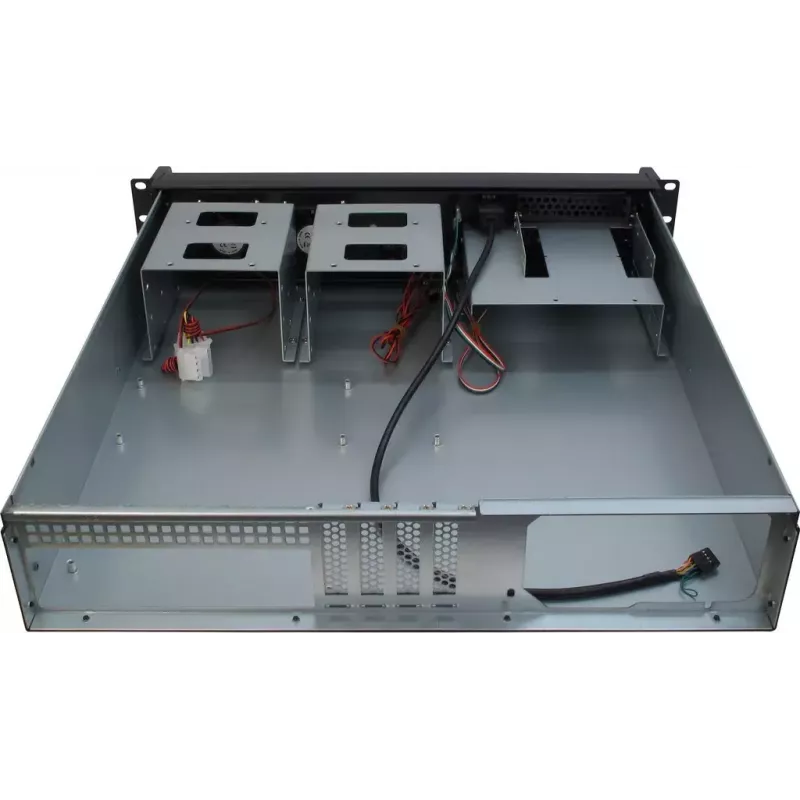

Install a compatible Micro ATX or Mini-ITX motherboard using the designated mounting points and secure it with appropriate standoffs and screws. Mount storage drives in the provided 3.5" and 2.5" bays using the supplied brackets or screws, and connect power and data cables to the drives and motherboard. Install a suitable server power supply in the allocated compartment (power supply not included) and route cables to maintain unobstructed airflow. Use the front USB 2.0 ports for temporary connections such as external drives or installation media. After assembly, mount the chassis in a 19" rack using standard rack rails or shelves, ensuring adequate ventilation around the unit.

Recommendations

For reliable operation, use a server-grade power supply with adequate wattage and proper connectors. Maintain regular airflow by keeping the front intake and internal fan areas free of dust; periodic cleaning and monitoring of drive temperatures are advised. When populating the drive bays, consider using vibration-dampening mounts if available, and distribute high-heat components to avoid localized hot spots inside the 2U enclosure.
