Carcasa de servidor Inter-Tech SC-4100 Rack Negro

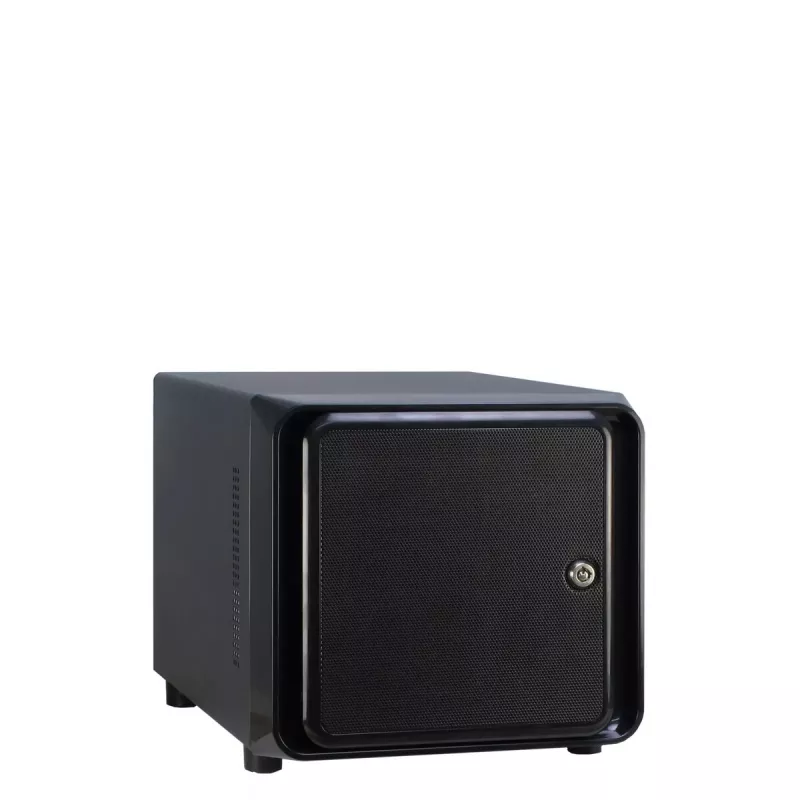

The INTER-TECH SC-4100 Rack Black is a compact server case for Mini-ITX motherboards with a front-accessible quad hot-swap rack for 3.5" drives. It accepts one 2.5" drive or one SSD, supports installation of a Flex ATX or 1U server power supply, and allows use of a short low-profile graphics card. The steel chassis in black is intended for rack setups and includes one rear 80 mm fan with provision for an optional 40 mm front fan.

Advantages

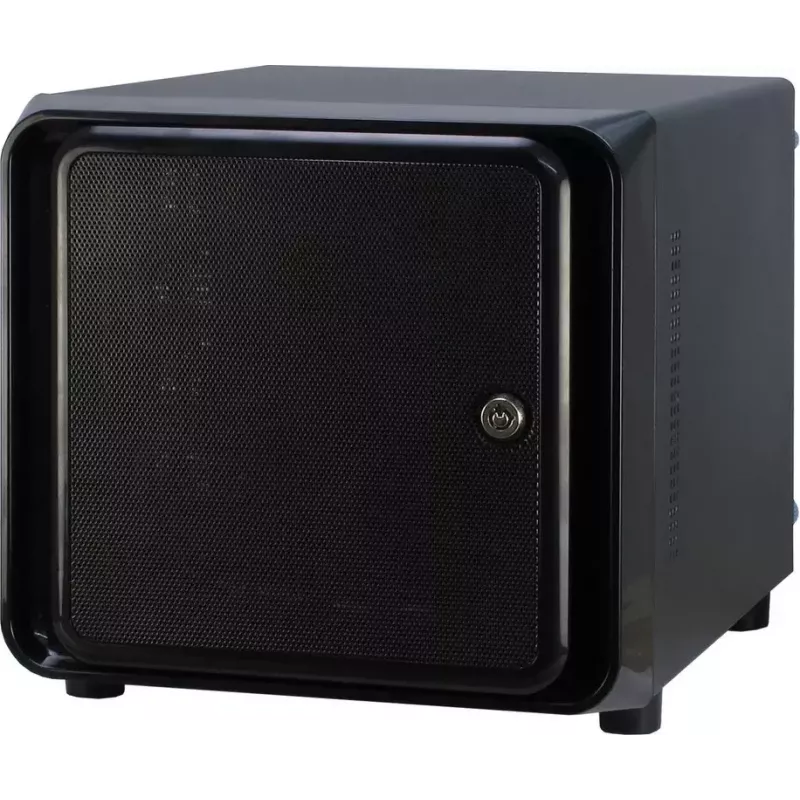

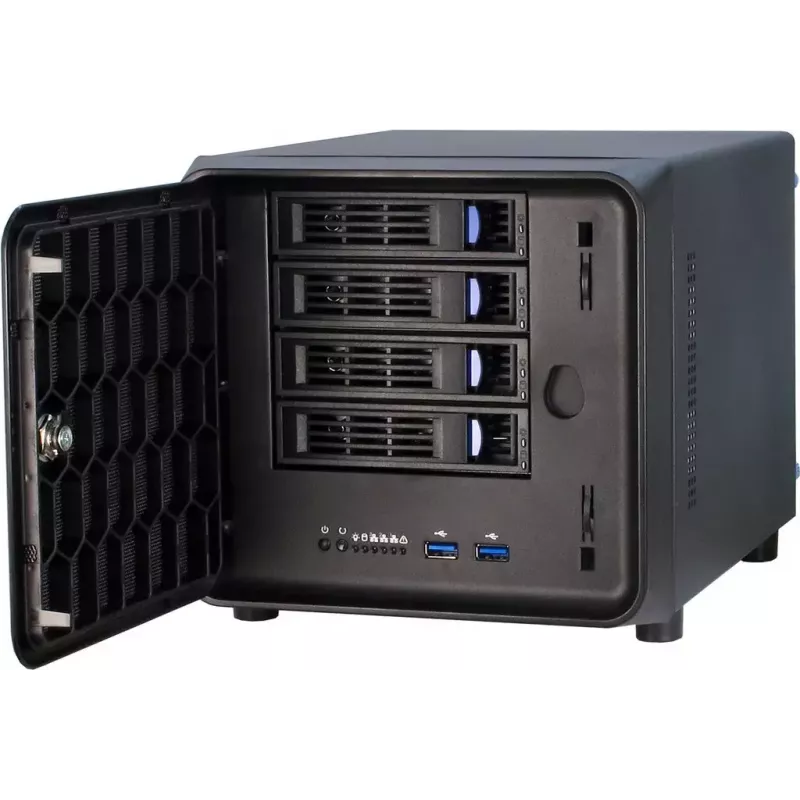

The SC-4100 offers four hot-swap 3.5" bays for quick drive replacement without opening the case, a compact 194 × 200 × 270 mm footprint suitable for dense rack deployments, and compatibility with Mini-ITX motherboards. Built from steel with a lockable front door, it provides physical security and durable construction, while the included 80 mm fan plus an optional 40 mm fan option ensure effective airflow for server components.

Suitable for

• Compact rack-mounted home or small office NAS and storage servers
• Mini-ITX based server builds requiring multiple hot-swap 3.5" drives
• Environments needing a locked front panel for drive security

Key specifications

• Type: Server rack case
• Supported motherboard: Mini-ITX

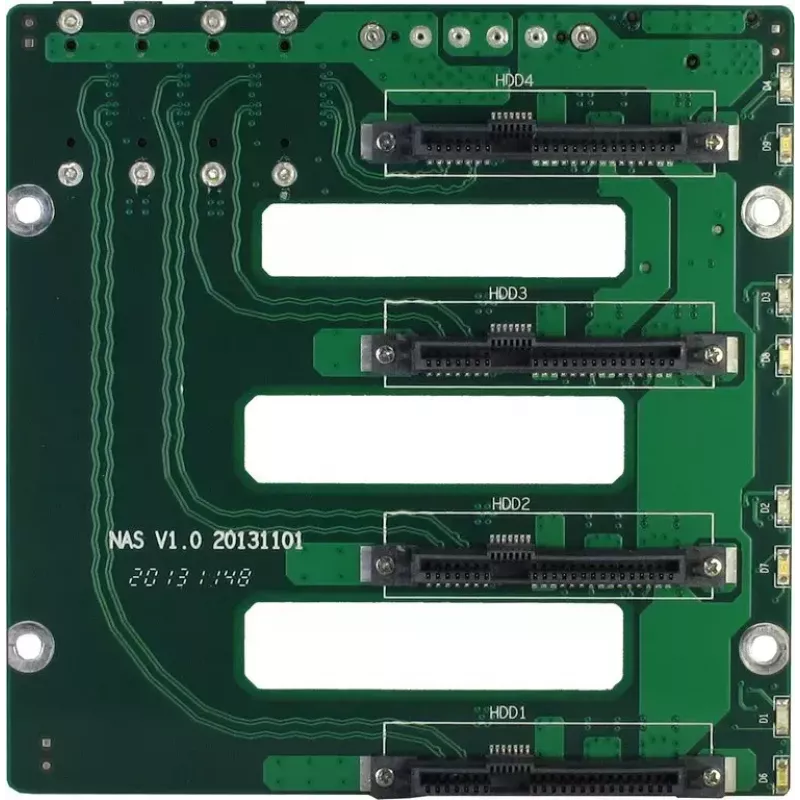

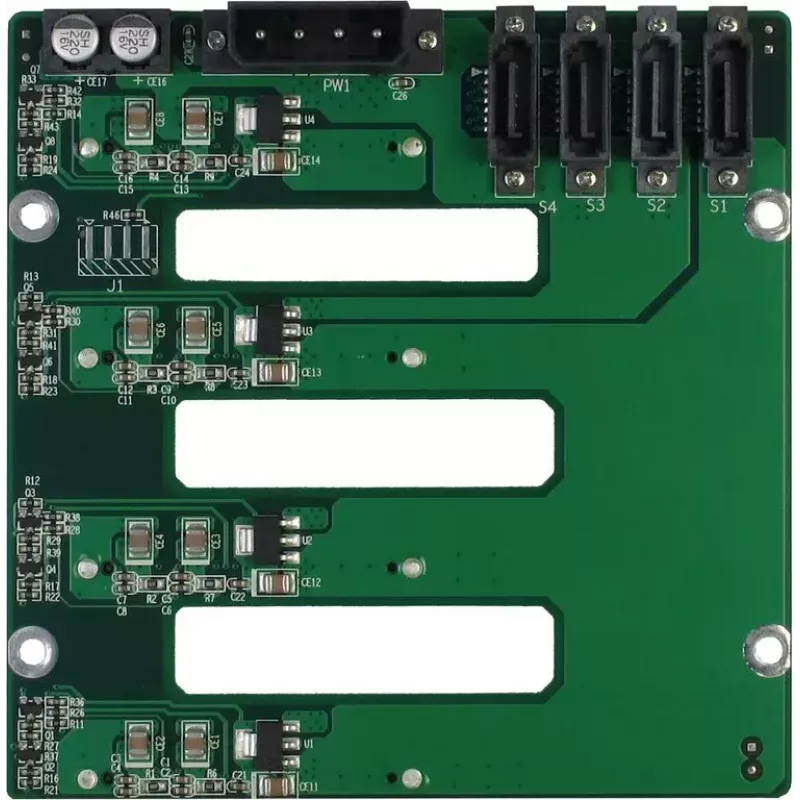

• Drive bays: 4 × 3.5" hot-swap, plus support for 1 × 2.5" or 1 × SSD
• External bays: 0 × 5.25"

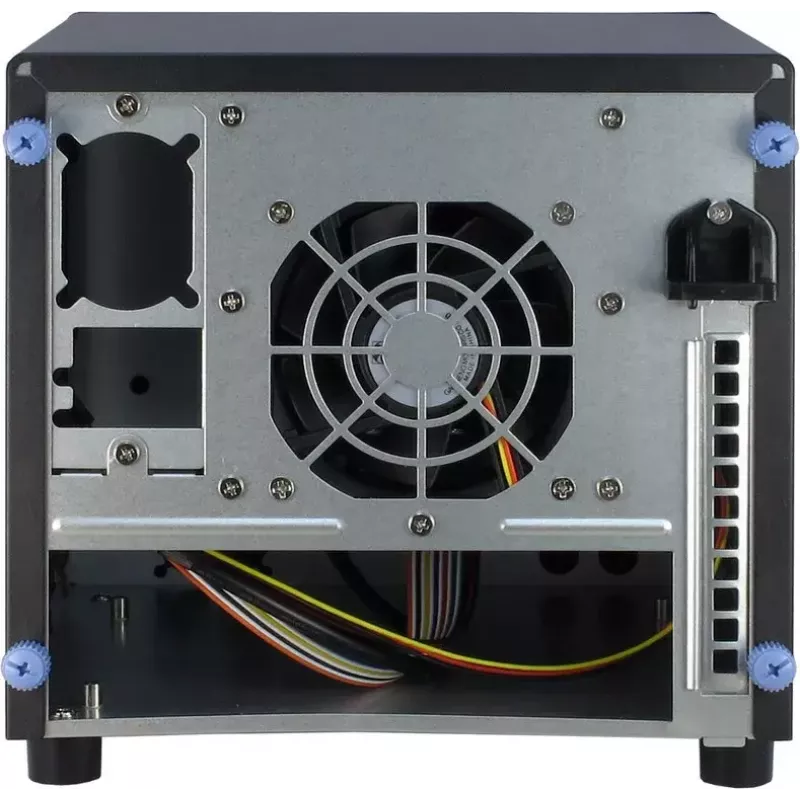

• Fans: 1 × 80 mm rear included; support for optional 40 mm front fan
• Power supply: Supports Flex ATX or 1U server PSU (not included)
• Front ports: 1 × USB 2.0, 1 × USB 3.2 Gen 1 Type-A
• Material: Steel; Colour: Black
• Dimensions (W×D×H): 194 × 200 × 270 mm
• Weight: 2.66 kg

How to use

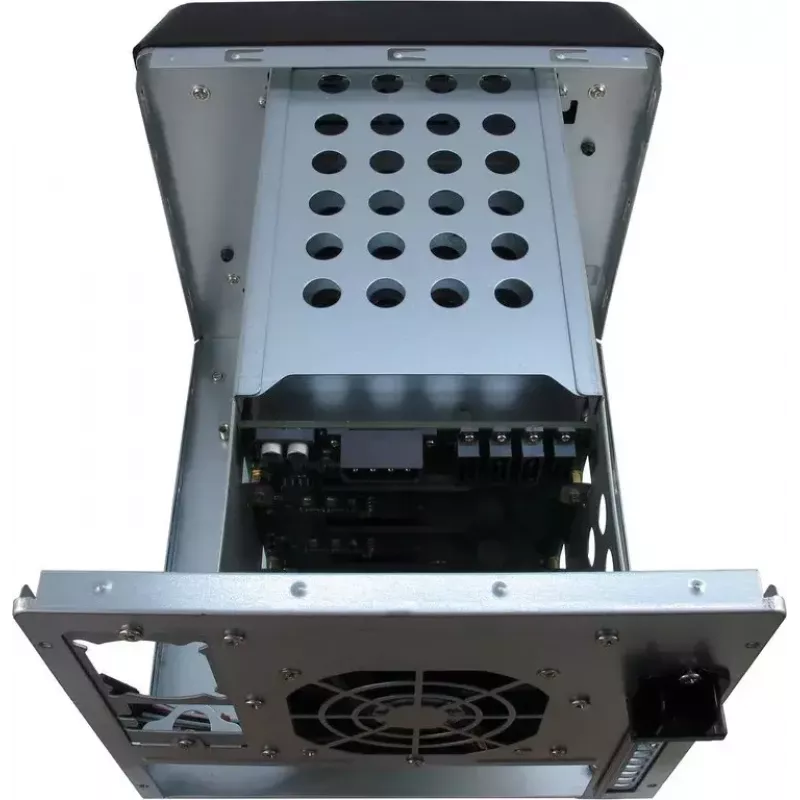

Install a Mini-ITX motherboard and secure a Flex ATX or 1U power supply in the designated slot. Mount 3.5" drives into the four hot-swap trays accessible from the front; the trays allow drive insertion and removal without opening the main chassis. If needed, install a 2.5" HDD or an SSD in the available internal bay. Connect the included 80 mm fan and optionally fit a 40 mm front fan to improve front-to-rear airflow. Close and lock the front door to protect drives from unauthorized access.

Recommendations

For reliable operation use compatible short, low-profile PCIe cards only, choose a Flex ATX or 1U power supply that meets your component power requirements, and maintain unobstructed airflow by keeping ventilation openings clear; regular monitoring of drive temperatures is advised in multi-drive configurations.
