Caja de superficie Digitus CAT 6A 2 puertos

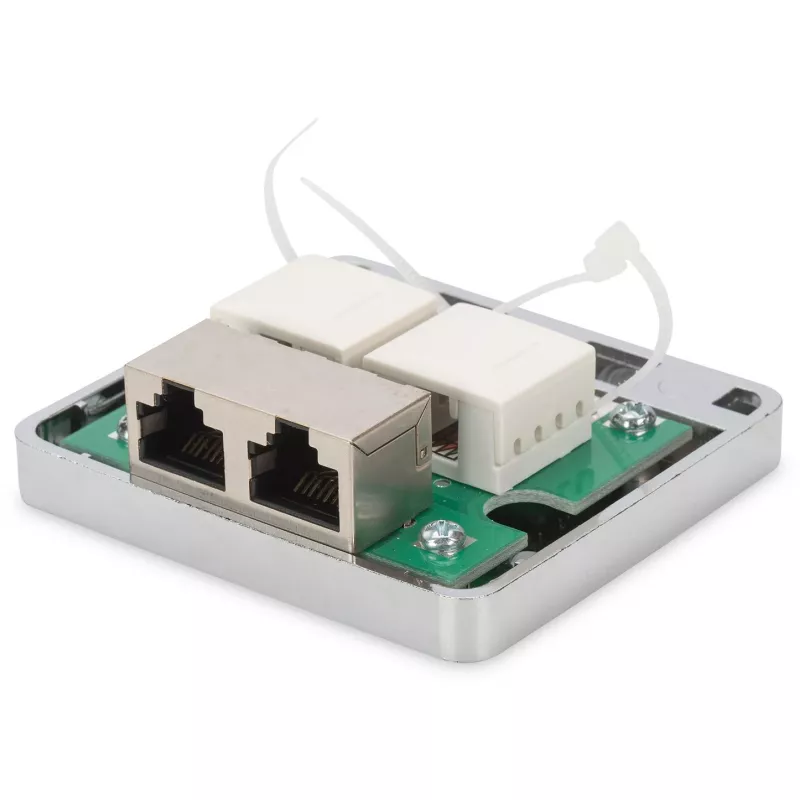

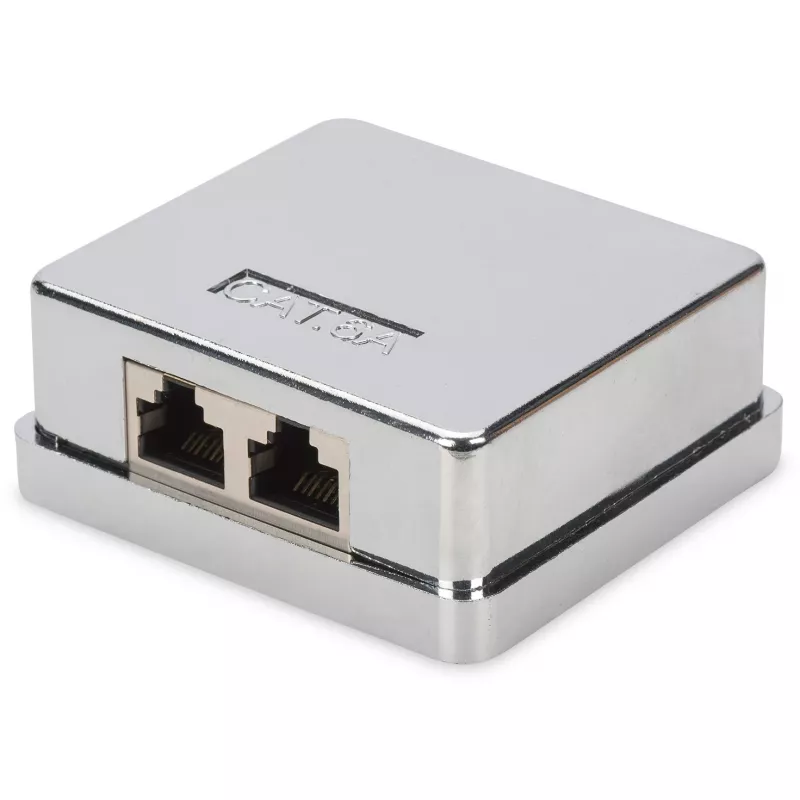

Future-oriented standards and high-end quality for your network. The DIGITUS Surface Mount Box CAT 6A 2-port (model DN-93713) is a compact, lightweight enclosure for creating consolidation points at desks, in intermediate ceilings or in underfloor systems. It accepts LSA connection strips on one side and RJ45 jacks on the other, supporting high-speed CAT 6A data transmission in a small footprint (65 mm width, 55 mm depth, 56.5 g).

Advantages

The surface mount box provides a reliable mechanical housing for two network ports while maintaining compliance with CAT 6A performance requirements. Its compact dimensions simplify installation in confined spaces and allow mounting on desk tops, ceilings or underfloor panels. The use of standard LSA strips and RJ45 jacks ensures compatibility with common cabling and connector systems. Manufactured by DIGITUS, model DN-93713 is intended for professional structured cabling installations.

Suitable for

• Creating consolidation points at workstations
• Installing network outlets in intermediate ceilings
• Mounting network connectors in underfloor systems
• Small office or home office network extensions requiring CAT 6A

Key specifications

• Brand: DIGITUS
• Model: DN-93713
• Ports: 2 RJ45 ports
• Category: CAT 6A
• Dimensions: 65 mm (W) x 55 mm (D)
• Weight: 56.5 g
• Connection: LSA strips and RJ45 jack
• Origin: Made in China
• EAN: 4016032425885

How to use

Mount the surface box at the chosen location using appropriate screws or mounting hardware for the surface material. Terminate the incoming cables on the LSA strip according to the wiring standard in use (T568A or T568B), then insert compatible RJ45 jacks into the front opening. After wiring, verify continuity and CAT 6A performance with a suitable network tester before finalizing the installation.

Recommendations

Use the DIGITUS CAT 6A surface mount box in environments where mechanical protection and compact consolidation points are required. Follow structured cabling practices, choose the correct wiring standard consistently across the installation, and test each link after termination to ensure expected CAT 6A performance.
