Caja de toma tipo F Kindermann 7449000301

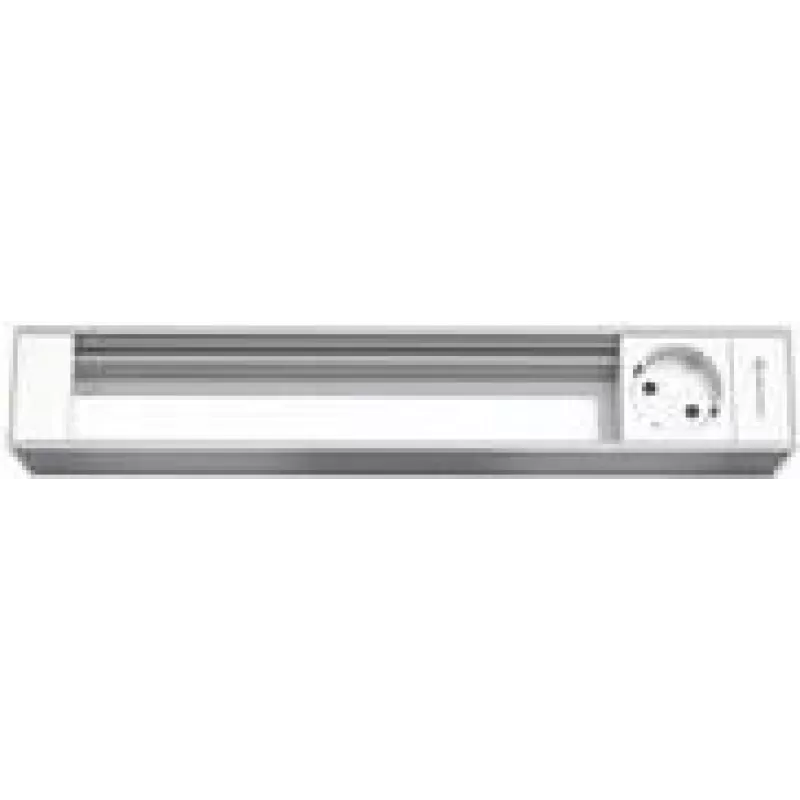

The Kindermann Outlet Box Type F (model 7449000301) is an aluminum, anodized enclosure designed for installation with Konnect flex 45 systems. It provides one mains module and five empty module spaces for custom configuration, and its compact dimensions allow for discreet mounting in AV and installation applications.

Advantages

Natural anodized aluminium construction provides durability and corrosion resistance. The included 45° grounded mains socket features special protection and an integrated GST18 mains connection cable (approx. 30 cm) for quick electrical hookup. The empty module spaces allow individual configuration using compatible adapter plates (series 7464 000 xxx).

Suitable for

Key specifications

How to use

Mount the outlet box in the designated Konnect flex 45 opening or compatible installation frame. Install the grounded 45° mains module in the mains position and secure any adapter plates into the empty module positions as required. Connect the GST18 plug to the building mains or distribution unit, routing the approx. 30 cm cable as needed and following local electrical codes. For custom configurations, fit adapter plates (7464 000 xxx series) into the empty positions and attach the desired modules.

Recommendations

Install and connect the unit only according to applicable electrical regulations. Use adapter plates and modules from the compatible Konnect flex 45 series to ensure correct fit and safe operation. If unsure, consult a qualified electrician for mounting and wiring.
