Caja eléctrica Rittal 1012.000, acero inoxidable, IP66, 600×210×760 mm

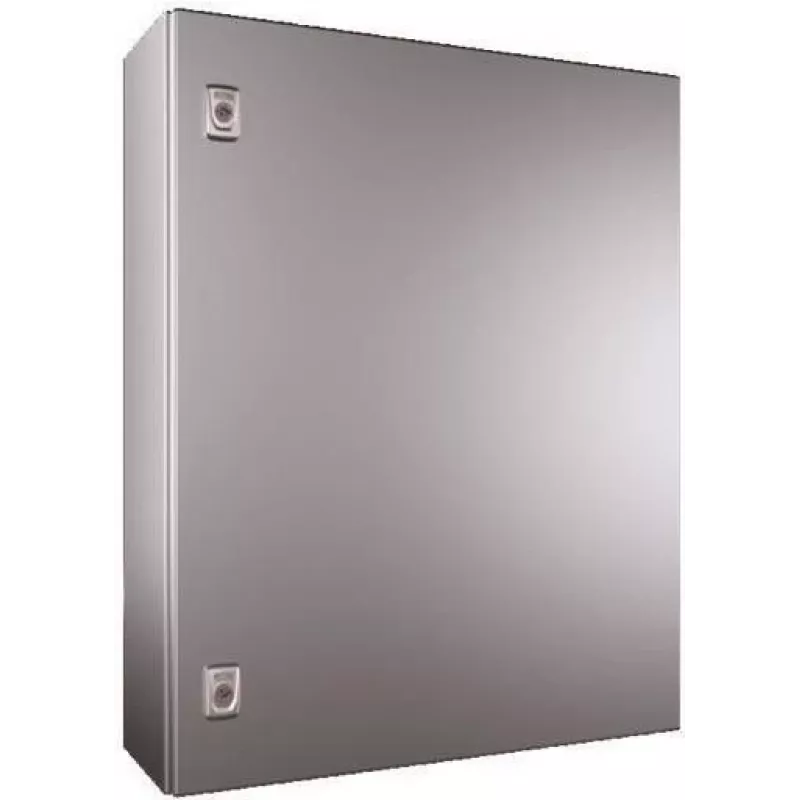

Rittal 1012.000 is a stainless steel electrical enclosure with IP66 protection, designed for indoor and outdoor industrial applications. With external dimensions of 600×210×760 mm, this single-unit enclosure provides dust-tight and robust protection against powerful water jets, making it suitable for control panels, terminal blocks and instrumentation in demanding environments. The enclosure features an integral locator system that enables fast, easy and reliable system configuration without the need for drilling.

Advantages

The stainless steel construction offers corrosion resistance and mechanical strength for long service life in industrial settings. IP66 ingress protection ensures complete protection against dust and strong water jets, supporting outdoor installation and washdown processes. The integral locator system simplifies mounting of internal components and reduces installation time by eliminating drilling. The smooth exterior and precise dimensions facilitate integration with existing installations and accessories.

Suitable for

Key specifications

How to use

Install the enclosure on a stable surface or appropriate mounting structure using recommended hardware. Open the door and use the integral locator system to position and secure panels, DIN rails or mounting plates without drilling. Route cables through appropriate gland plates or preconfigured openings and seal entries with compatible cable glands to maintain IP66 protection. Close and lock the door according to the enclosure’s locking mechanism to ensure the rated ingress protection.

Recommendations

For best performance, select stainless-steel-compatible fasteners and accessories to prevent galvanic corrosion. Verify that cable glands and conduit fittings are rated to maintain IP66 when installed. Periodically inspect door gaskets and seals for wear, and replace them if compromised to preserve ingress protection. When installing outdoors, consider additional UV-resistant mounting accessories and ensure adequate ventilation or temperature management for heat-generating components.
