Caja eléctrica Rittal 1453.000, plástico, IP66, 500×300×500 mm

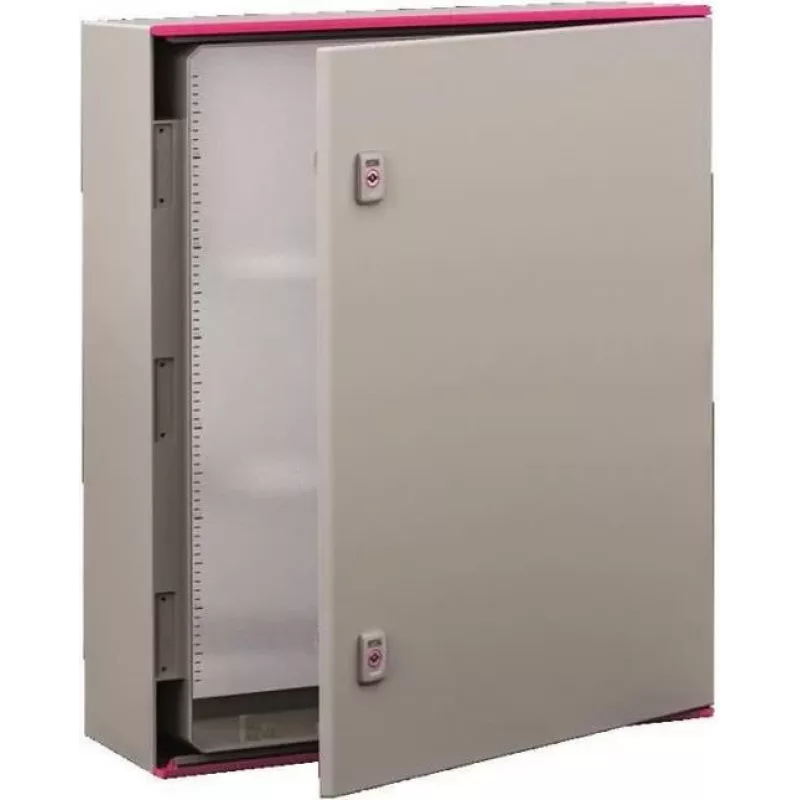

Rittal 1453.000 is a durable plastic electrical enclosure with IP66 protection, designed for indoor and outdoor use where dust ingress and strong water jets must be prevented. The enclosure measures 500×300×500 mm and is supplied as a single unit ready for installation. Inside, multiple mounting bosses on a 25 mm pitch pattern simplify the attachment of punched sections, rails and other interior accessories, enabling flexible configuration for control equipment, terminals and junctions in industrial or commercial settings.

Advantages

The housing provides IP66-rated protection, offering resistance to dust and powerful water jets while remaining lightweight thanks to its plastic construction. Internal mounting bosses on a regular 25 mm grid make it easy to fit panels, DIN rails and mounting plates without additional drilling. The enclosure’s standardized dimensions and smooth external surfaces support straightforward installation and maintenance in diverse environments.

Suitable for

Key specifications

How to use

Position the enclosure at the chosen installation point and secure it using appropriate external mounting hardware for the surface type. Install punched sections, DIN rails or mounting plates inside by aligning them to the internal 25 mm pitch bosses and fastening with suitable screws. Route cables through designated knockouts or cable glands, maintain correct sealing for IP66 integrity, and fit the control equipment, terminals or junctions according to electrical standards and wiring diagrams.

Recommendations

To maintain the IP66 rating, ensure cable gland fittings and sealing surfaces are correctly installed and periodically inspect gaskets for wear. Use corrosion-resistant fasteners if the enclosure is installed in aggressive or coastal environments. Verify component spacing and heat dissipation requirements when fitting power-dissipating devices.
