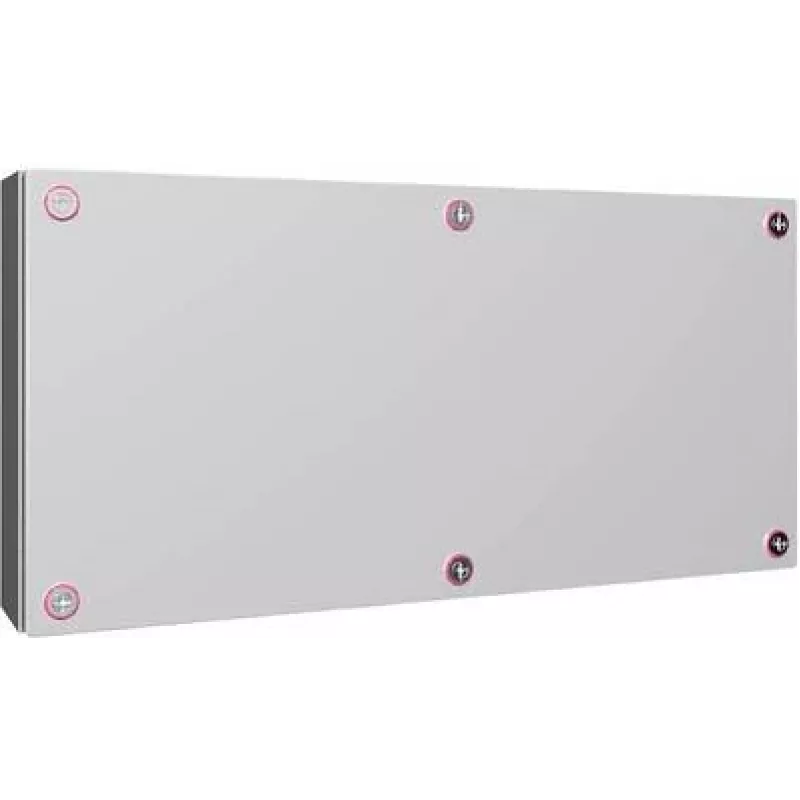

Caja eléctrica Rittal KX 1510.000 acero IP66, 600×120×300 mm

Rittal KX 1510.000 is a compact steel electrical enclosure with IP66 protection, measuring 600×120×300 mm. Designed for housing electrical and electronic components, this terminal box provides dust-tight and water-resistant protection for indoor and outdoor installations. The small KX enclosure without a gland plate offers flexible interior installation while maintaining a high protection category, making it suitable for control, junction and small equipment housings.

Advantages

The steel construction ensures mechanical robustness and a long service life while the IP66 rating guarantees protection against dust ingress and powerful water jets. The omission of a fixed gland plate enables flexible routing of cables and adaptable interior configurations. The compact footprint and standard rectangular shape allow for easy mounting in confined spaces and compatibility with common mounting accessories.

Suitable for

Key specifications

How to use

Mount the enclosure on a suitable supporting surface or frame using appropriate fasteners; ensure compatibility of mounting points with the installation site. Open the enclosure and install internal components such as DIN rails, terminal strips or mounting plates as required. Route cables through selected entry points or cut-outs and secure cable entries with suitable sealing glands or plates to preserve the IP66 rating. After wiring is complete, close and fasten the enclosure door to maintain environmental protection.

Recommendations

To retain the IP66 protection, use compatible sealing glands or an appropriate gland plate for cable entry, ensure enclosure door seals are clean and undamaged, and tighten fasteners to the manufacturer's recommended torque. For outdoor installations, consider corrosion protection measures suitable for the local environment and follow local electrical codes during installation.
